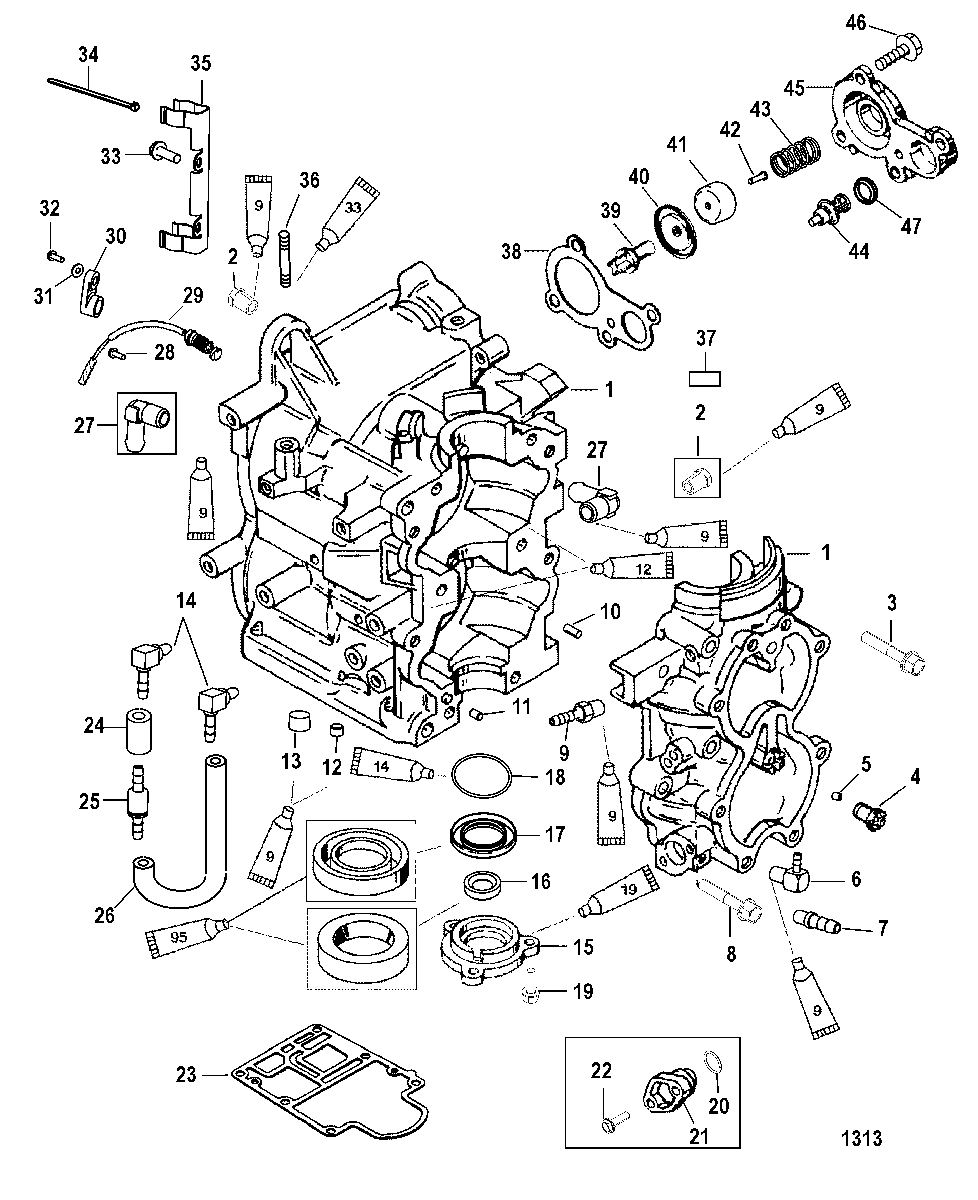

Cylinder Block для Mercury - 40 (2 CYL.) 0T980000 THRU 0T999999

  • №
    Артикул
    Название
  • 1
    890-821358T5 CYLINDER BLOCK
    CYLINDER BLOCK
  • 2
    22-328022 PLUG, Pipe (.125-27) Brass
    PLUG, Pipe (.125-27) Brass
  • 3
    10-81742780 SCREW, (M8 x 80)
    SCREW, (M8 x 80)
  • 4
    812888A2 CARRIER ASSEMBLY
    CARRIER ASSEMBLY
  • 5
    21-42657A3 CHECK VALVE
    SN# 1B859739 & Below
    CHECK VALVE
    SN# 1B859739 & Below
  • 5
    21-42657A4 CHECK VALVE
    SN# 1B859740 & Up
    CHECK VALVE
    SN# 1B859740 & Up
  • 6
    21-8282182 CHECK VALVE
    CHECK VALVE
  • 7
    22-56759 FITTING, Barbed, Barbed
    (Electric)
    FITTING, Barbed, Barbed
    (Electric)
  • 8
    10-81742740 SCREW, (M8 x 40)
    SCREW, (M8 x 40)
  • 9
    22-85439001 CONNECTOR, Male
    CONNECTOR, Male
  • 10
    17-8M0084653 PIN, Center Main
    PIN, Center Main
  • 11
    17-43044 PIN, Dowel - Without Hole (.375 x .625)
    PIN, Dowel - Without Hole (.375 x .625)
  • 12
    22-390721 PLUG, Pipe (.125-27) Brass
    PLUG, Pipe (.125-27) Brass
  • 13
    22-185981 PLUG, Pipe (.375-18)
    PLUG, Pipe (.375-18)
  • 14
    22-15133 FITTING
    FITTING
  • 15
    1171-9812A8 END CAP ASSEMBLY
    END CAP ASSEMBLY
  • 16
    26-828932 SEAL, Oil
    SEAL, Oil
  • 17
    26-41953 SEAL
    SEAL
  • 18
    25-896523 O-RING, (2.175 x .175)
    O-RING, (2.175 x .175)
  • 19
    10-81742720 SCREW, (M8 x 20)
    SCREW, (M8 x 20)
  • 20
    25-48462 O-RING, (.614 x .070), Included With Reference 1
    (Manual)
    O-RING, (.614 x .070), Included With Reference 1
    (Manual)
  • 21
    8129962 COVER
    (Manual)
    COVER
    (Manual)
  • 22
    10-40011108 SCREW, (M5 x 20) Stainless Steel
    (Manual)
    SCREW, (M5 x 20) Stainless Steel
    (Manual)
  • 23
    27-8M0000822 GASKET, Included With Reference 1
    GASKET, Included With Reference 1
  • 24
    32-892024122 TUBING, (20.00 Feet Bulk) (Cut to 1.50 Inch Length)
    TUBING, (20.00 Feet Bulk) (Cut to 1.50 Inch Length)
  • 25
    21-149126 CHECK VALVE, Double End
    CHECK VALVE, Double End
  • 26
    32-892024122 TUBING, (240.00 Inches Bulk) (Cut to 5.50 Inch Length)
    TUBING, (240.00 Inches Bulk) (Cut to 5.50 Inch Length)
  • 27
    22-996642 FITTING, Elbow 90 Degree (.125-27 x .250) Nylon (.125 Male)
    FITTING, Elbow 90 Degree (.125-27 x .250) Nylon (.125 Male)
  • 28
    10-878609 SCREW, (#10-16 x .600)
    SCREW, (#10-16 x .600)
  • 29
    787994 SENDER
    SENDER
  • 30
    889733 RETAINER
    RETAINER
  • 31
    12-56681 WASHER, (.203 x .500 x .032)
    WASHER, (.203 x .500 x .032)
  • 32
    10-878609 SCREW, (#10-16 x .600)
    SCREW, (#10-16 x .600)
  • 33
    10-878609 SCREW, (#10-16 x .600)
    (Quantity of 3 on Electric)
    SCREW, (#10-16 x .600)
    (Quantity of 3 on Electric)
  • 34
    54-816311T TIE STRAP, (8.00 Inches)
    (Electric)
    TIE STRAP, (8.00 Inches)
    (Electric)
  • 35
    8261151 CLAMP, Connector
    (Electric)
    CLAMP, Connector
    (Electric)
  • 36
    16-8161949 STUD, (M6 x 44)
    STUD, (M6 x 44)
  • 37
    NSS NOT SOLD SEPARATE, Decal-Sterialization
    NOT SOLD SEPARATE, Decal-Sterialization
  • 38
    27-8128672 GASKET, Included With Reference 1
    GASKET, Included With Reference 1
  • 39
    8128821 POPPET
    POPPET
  • 40
    812887002 DIAPHRAGM
    DIAPHRAGM
  • 41
    12-94182 WASHER
    WASHER
  • 42
    10-69570 SCREW, (#10-16 x .750)
    SCREW, (#10-16 x .750)
  • 43
    24-47968 SPRING
    SPRING
  • 44
    895338 THERMOSTAT, 54A°C (130A°F)
    THERMOSTAT, 54A°C (130A°F)
  • 44
    895338 THERMOSTAT, 62A°C (143A°F)
    THERMOSTAT, 62A°C (143A°F)
  • 45
    8M0036859 COVER
    COVER
  • 45
    190742 COVER
    (Greenland)
    COVER
    (Greenland)
  • 46
    10-40011149 SCREW, (M8 x 25) Stainless Steel, Included With Reference #1
    SCREW, (M8 x 25) Stainless Steel, Included With Reference #1
  • 47
    27-62386001 GASKET, Thermostat (Included With Reference #1)
    GASKET, Thermostat (Included With Reference #1)
  • -
    27-822420A94 GASKET SET
    GASKET SET
  • -
    808569T02 POWERHEAD ASSEMBLY
    30 HP
    POWERHEAD ASSEMBLY
    30 HP
  • -
    61-8M0063311 POWERHEAD ASSEMBLY
    40 HP
    POWERHEAD ASSEMBLY
    40 HP
