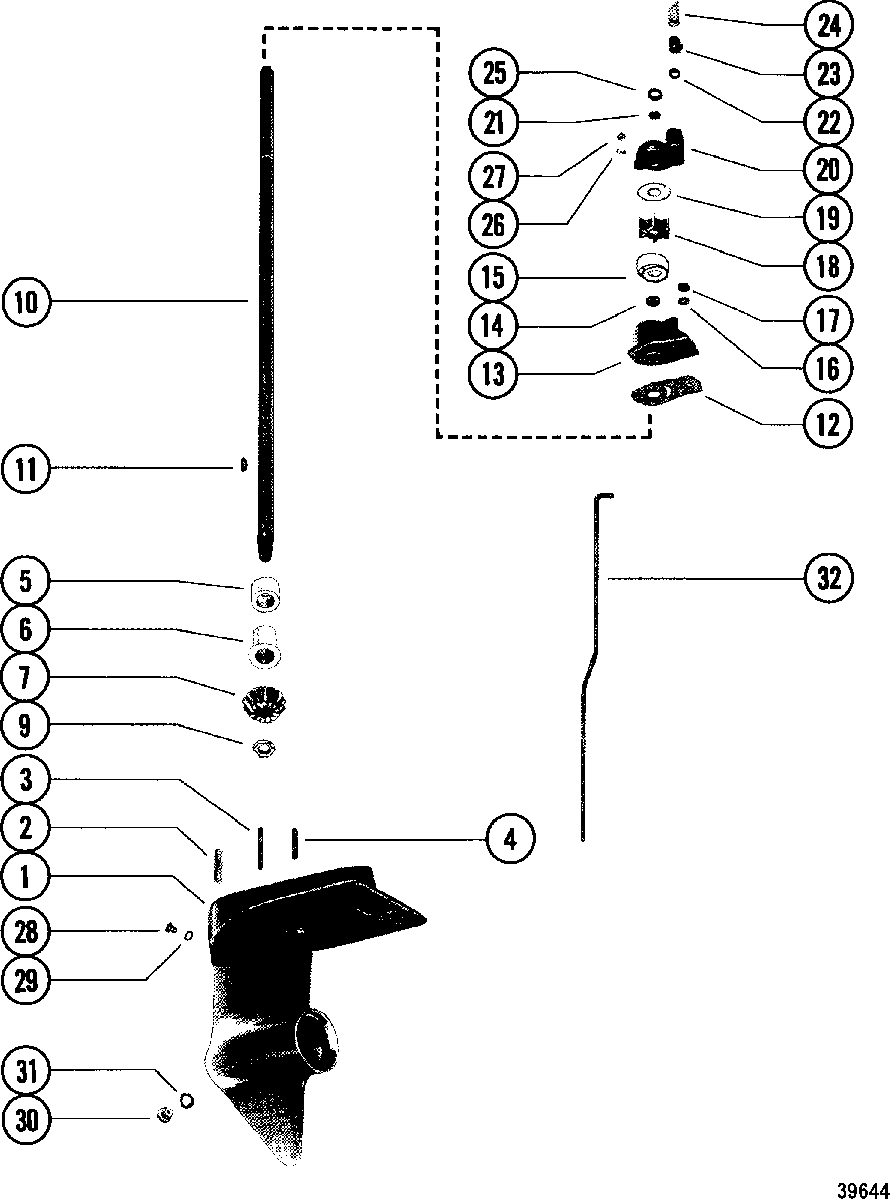

GEAR HOUSING ASSEMBLY(DRIVESHAFT) для Mercury - 40 (2 CYL. PRODUCT OF USA) 8065265 THRU 8068064

  • №
    Артикул
    Название
  • -
    1648-7811A20 GEAR HOUSING ASSEMBLY, COMPLETE
    SHORT SHAFT SN# US-5805430/Australia-8068064/Belgium-9294810/Canada-7166327 & Below
    GEAR HOUSING ASSEMBLY, COMPLETE
    SHORT SHAFT SN# US-5805430/Australia-8068064/Belgium-9294810/Canada-7166327 & Below
  • -
    1648-7811A21 GEAR HOUSING ASSEMBLY, COMPLETE
    LONG SHAFT SN# US-5805430/Australia-8068064/Belgium-9294810/Canada-7166327 & Below
    GEAR HOUSING ASSEMBLY, COMPLETE
    LONG SHAFT SN# US-5805430/Australia-8068064/Belgium-9294810/Canada-7166327 & Below
  • -
    1648-7811A20 GEAR HOUSING ASSEMBLY, COMPLETE
    SHORT SHAFT SN# US-5805431/Belgium-9294811/Canada-7166328 & Up
    GEAR HOUSING ASSEMBLY, COMPLETE
    SHORT SHAFT SN# US-5805431/Belgium-9294811/Canada-7166328 & Up
  • -
    1648-7811A21 GEAR HOUSING ASSEMBLY, COMPLETE
    LONG SHAFT SN# US-5805431/Belgium-9294811/Canada-7166328 & Up
    GEAR HOUSING ASSEMBLY, COMPLETE
    LONG SHAFT SN# US-5805431/Belgium-9294811/Canada-7166328 & Up
  • 1
    1648-7811A9 GEAR HOUSING ASSEMBLY, BASIC
    GEAR HOUSING ASSEMBLY, BASIC
  • 2
    16-68927 STUD, GEAR HOUSING (2 1/8")
    (SHORT SHAFT)
    STUD, GEAR HOUSING (2 1/8")
    (SHORT SHAFT)
  • 2
    16-75321 STUD, GEAR HOUSING (7 1/4")
    (LONG SHAFT)
    STUD, GEAR HOUSING (7 1/4")
    (LONG SHAFT)
  • 3
    16-68928 STUD, WATER PUMP (2 1/8")
    STUD, WATER PUMP (2 1/8")
  • 4
    16-70741 STUD, WATER PUMP (1 1/8")
    STUD, WATER PUMP (1 1/8")
  • 5
    23-77428 BEARING, GEAR HOUSING
    BEARING, GEAR HOUSING
  • 6
    23-90770 BUSHING, FLANGES -GEAR HOUSING
    BUSHING, FLANGES -GEAR HOUSING
  • 7
    43-90796 GEAR, Pinion
    GEAR, Pinion
  • 9
    11-20922 NUT, PINION GEAR
    NUT, PINION GEAR
  • 10
    45-77432 DRIVESHAFT
    (SHORT SHAFT)
    DRIVESHAFT
    (SHORT SHAFT)
  • 10
    45-77433 DRIVESHAFT
    (LONG SHAFT)
    DRIVESHAFT
    (LONG SHAFT)
  • 11
    28-8M0032835 KEY, IMPELLER DRIVE
    KEY, IMPELLER DRIVE
  • 12
    27-68939 GASKET, WATER PUMP - LOWER
    GASKET, WATER PUMP - LOWER
  • 13
    46-90844A1 HOUSING ASSEMBLY, Water Pump
    HOUSING ASSEMBLY, Water Pump
  • 14
    26-897153 SEAL, Oil, WATER PUMP
    SEAL, Oil, WATER PUMP
  • 15
    70977T INSERT, WATER PUMP
    INSERT, WATER PUMP
  • 16
    12-56681 WASHER, (.203 x .500 x .032), WATER PUMP
    WASHER, (.203 x .500 x .032), WATER PUMP
  • 17
    25-74138 O-RING, WATER PUMP
    O-RING, WATER PUMP
  • 18
    47-89980 IMPELLER
    IMPELLER
  • 19
    68955 FACE PLATE, WATER PUMP
    FACE PLATE, WATER PUMP
  • 20
    46-95965A2 COVER ASSEMBLY, Water Pump
    COVER ASSEMBLY, Water Pump
  • 21
    26-30913 SEAL, Oil, WATER PUMP COVER
    SEAL, Oil, WATER PUMP COVER
  • 22
    23-13127 BEARING, WATER TUBE SEAL
    BEARING, WATER TUBE SEAL
  • 23
    26-36558 SEAL, WATER TUBE
    SEAL, WATER TUBE
  • 24
    23-31792T SLEEVE, WATER TUBE GUIDE
    SLEEVE, WATER TUBE GUIDE
  • 25
    25-30526 RING, RUBBER - DRIVESHAFT
    RING, RUBBER - DRIVESHAFT
  • 26
    12-30164 WASHER, (.192 x .375 x .0312) Stainless Steel, WATER PUMP STUDS
    WASHER, (.192 x .375 x .0312) Stainless Steel, WATER PUMP STUDS
  • 27
    11-859124 NUT, (#10-32) Stainless Steel, WATER PUMP STUDS
    NUT, (#10-32) Stainless Steel, WATER PUMP STUDS
  • 28
    10-28653 SCREW, (#10-32 x 0.25), VENT - GEAR HOUSING
    SCREW, (#10-32 x 0.25), VENT - GEAR HOUSING
  • 29
    19643 WASHER, VENT SCREW
    WASHER, VENT SCREW
  • 30
    10-79953Q04 SCREW, (.375-16 x .250), GREASE FILLER
    SCREW, (.375-16 x .250), GREASE FILLER
  • 31
    12-191833 WASHER, GREASE FILLER SCREW
    WASHER, GREASE FILLER SCREW
  • 32
    72418T SHIFT SHAFT
    (SHORT SHAFT)
    SHIFT SHAFT
    (SHORT SHAFT)
  • 32
    75307 SHIFT SHAFT
    (LONG SHAFT)
    SHIFT SHAFT
    (LONG SHAFT)
  • -
    46-90844A2 REPAIR KIT, Water Pump
    REPAIR KIT, Water Pump
  • -
    26-71140A1 SEAL KIT, Gear Housing
    SEAL KIT, Gear Housing
  • -
    27-77586A78 GASKET SET
    GASKET SET
