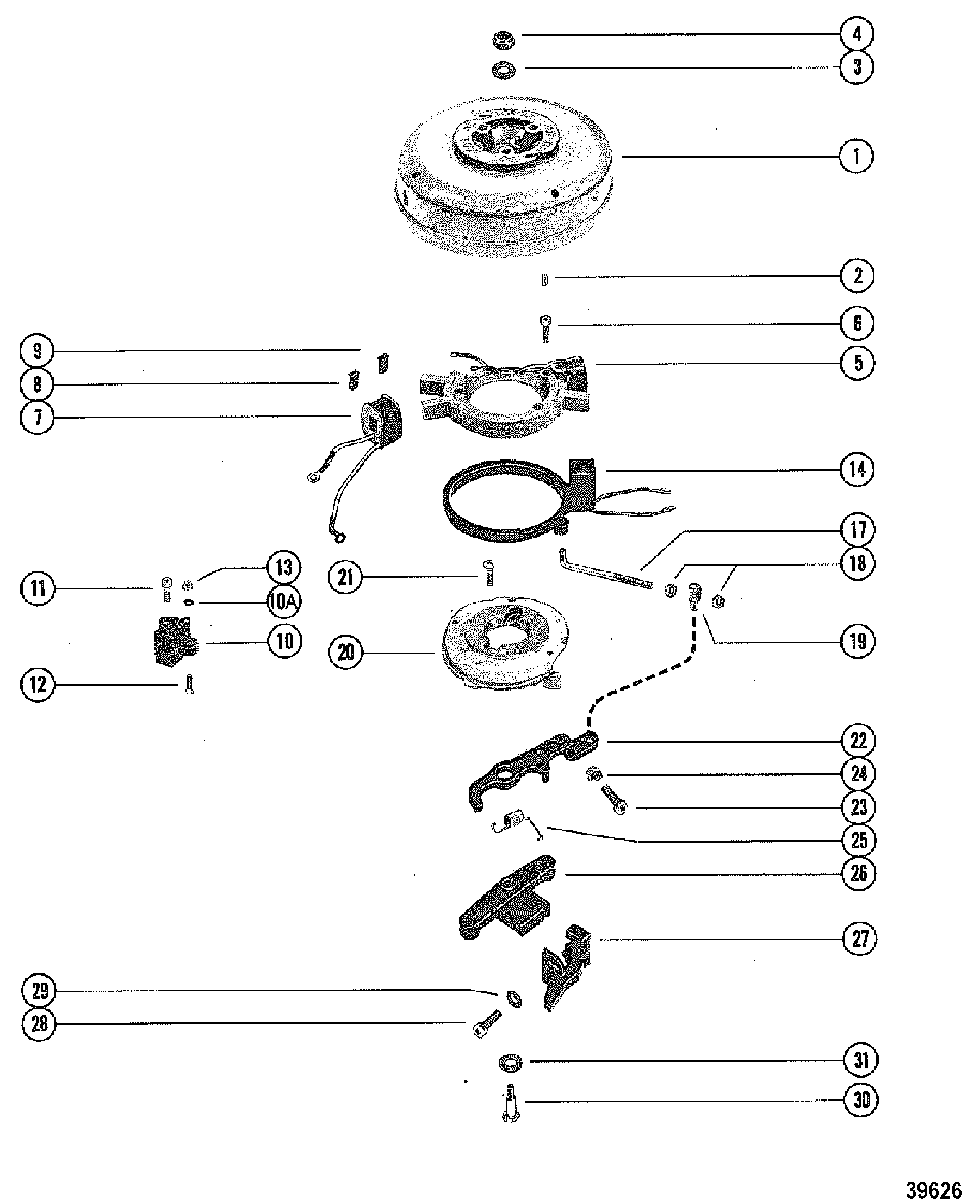

FLYWHEEL AND STATOR для Mercury - 40 (2 CYL. PRODUCT OF USA) 8065265 THRU 8068064

  • №
    Артикул
    Название
  • 1
    247-7933A2 FLYWHEEL ASSEMBLY
    FLYWHEEL ASSEMBLY
  • 2
    28-20094 KEY, Woodruff, FLYWHEEL RIVE
    KEY, Woodruff, FLYWHEEL RIVE
  • 3
    12-20553 WASHER, FLYWHEEL
    WASHER, FLYWHEEL
  • 4
    11-8M0042636 NUT, FLYWHEEL
    NUT, FLYWHEEL
  • 5
    339-5566A5 STATOR ASSEMBLY
    STATOR ASSEMBLY
  • 6
    10-66707 SCREW, STATOR TO MOUNTING BRACKET (7/8")
    SCREW, STATOR TO MOUNTING BRACKET (7/8")
  • 7
    339-5589A1 COIL ASSEMBLY (2 1/4" AND 4 1/4" LEADS)
    COIL ASSEMBLY (2 1/4" AND 4 1/4" LEADS)
  • 7
    339-5590A1 COIL ASSEMBLY (3 3/8" AND 4 3/8" LEADS)
    COIL ASSEMBLY (3 3/8" AND 4 3/8" LEADS)
  • 8
    54-59538T CLIP, COIL RETAINING
    CLIP, COIL RETAINING
  • 9
    54-65927 CLIP, COIL RETAINING
    CLIP, COIL RETAINING
  • 10
    86-69348 TERMINAL BLOCK, STATOR
    TERMINAL BLOCK, STATOR
  • 10A
    13-58308 LOCKWASHER, Internal (#10), TERMINAL BLOCK
    LOCKWASHER, Internal (#10), TERMINAL BLOCK
  • 11
    10-22654 SCREW, (.190-32 x .38), LEADS TO TERMINAL BLOCK
    SCREW, (.190-32 x .38), LEADS TO TERMINAL BLOCK
  • 12
    10-69347 SCREW, TERMINAL BLOCK TO STATOR (5/8")
    SCREW, TERMINAL BLOCK TO STATOR (5/8")
  • 13
    11-46438 NUT, (#10-32), TERMINAL BLOCK SCREW
    NUT, (#10-32), TERMINAL BLOCK SCREW
  • 14
    70426A3 TRIGGER ASSEMBLY
    TRIGGER ASSEMBLY
  • 17
    70414 LINK ROD, TRIGGER TO SPARK LEVER
    LINK ROD, TRIGGER TO SPARK LEVER
  • 18
    11-68219 NUT, (#10-32) Stainless Steel, ADJUSTING LINK ROD
    NUT, (#10-32) Stainless Steel, ADJUSTING LINK ROD
  • 19
    33973 SWIVEL, LINK ROD
    SWIVEL, LINK ROD
  • 20
    70428 BRACKET, STATOR MOUNTING
    BRACKET, STATOR MOUNTING
  • 21
    10-25764 SCREW, STATOR MOUNTING BRACKET (7/16")
    SCREW, STATOR MOUNTING BRACKET (7/16")
  • 22
    70422 LEVER, SPARK
    LEVER, SPARK
  • 23
    10-62802 SCREW, ADJUSTNG - SPARK LEVER (1 1/8")
    SCREW, ADJUSTNG - SPARK LEVER (1 1/8")
  • 24
    11-21923T NUT, ( 8-32), ADJUSTING SCREW
    NUT, ( 8-32), ADJUSTING SCREW
  • 25
    24-70418 SPRING, THROTTLE LEVER
    SPRING, THROTTLE LEVER
  • 26
    70424 LEVER, Throttle
    LEVER, Throttle
  • 27
    70429 CAM, Throttle
    CAM, Throttle
  • 28
    10-38055 SCREW, (.190-32 x .620), THROTTLE CAM TO THROTTLE LEVER
    SCREW, (.190-32 x .620), THROTTLE CAM TO THROTTLE LEVER
  • 29
    12-56681 WASHER, (.203 x .500 x .032), THROTTLE CAM SCREW
    WASHER, (.203 x .500 x .032), THROTTLE CAM SCREW
  • 30
    10-38515 SCREW, SHOULDER (7/8")
    SCREW, SHOULDER (7/8")
  • 31
    12-69056 WASHER, (.255 x .625 x .0312), SHOULDER SCREW
    WASHER, (.255 x .625 x .0312), SHOULDER SCREW
