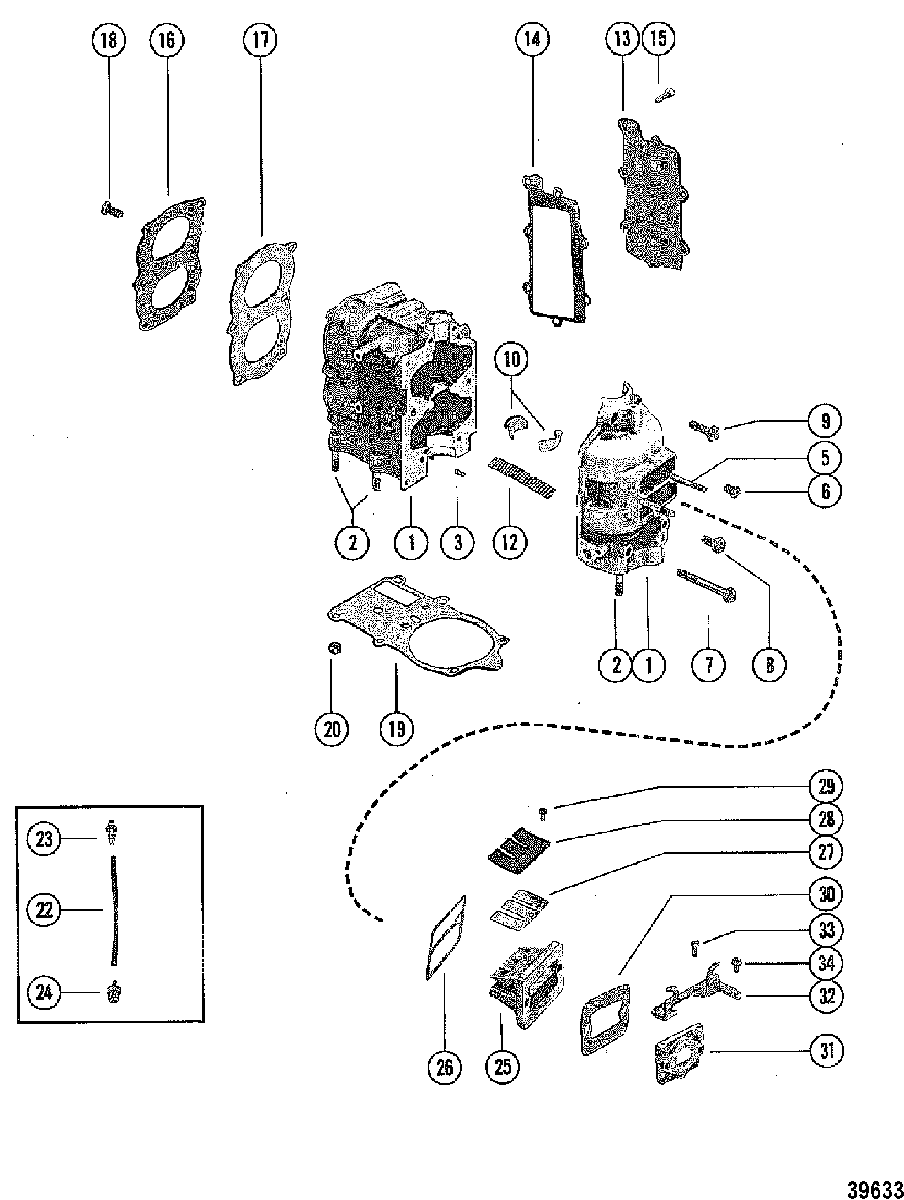

CYLINDER BLOCK AND CRANKCASE ASSEMBLY для Mercury - 40 (2 CYL. PRODUCT OF USA) 5589202 THRU 5595531
-
№АртикулНазвание
-
1862-7713A2 CYLINDER BLOCK ASSEMBLYCYLINDER BLOCK ASSEMBLY
-
216-728091 STUD, (.250-20/.250-28 x 1.620), POWERHEADSTUD, (.250-20/.250-28 x 1.620), POWERHEAD
-
317-8M0084726 PIN, Dowel (.187 x .530), CYLINDER BLOCKPIN, Dowel (.187 x .530), CYLINDER BLOCK
-
516-20353 STUD, (.250-28 x 1.750), REED BLOCK AND CARBURETORSTUD, (.250-28 x 1.750), REED BLOCK AND CARBURETOR
-
622-56800 PLUG, Pipe (.0625-27), CYLINDER BLOCKPLUG, Pipe (.0625-27), CYLINDER BLOCK
-
710-70732 SCREW, (.250-20 x 2.00), CRANKCASE TO CYLINDER BLOCKSCREW, (.250-20 x 2.00), CRANKCASE TO CYLINDER BLOCK
-
810-28635 SCREW, (.250-20 x .620) Stainless Steel, CRANKCASE TO CYLINDER BLOCKSCREW, (.250-20 x .620) Stainless Steel, CRANKCASE TO CYLINDER BLOCK
-
910-28667 SCREW, (.250-20 x 1.00) Stainless Steel, CRANKCASE TO CYLINDER BLOCKSCREW, (.250-20 x 1.00) Stainless Steel, CRANKCASE TO CYLINDER BLOCK
-
1068953A1 LINER ASSEMBLY, CYLINDER BLOCKLINER ASSEMBLY, CYLINDER BLOCK
-
1229-71840 BEARING, Needle, CENTER MAINBEARING, Needle, CENTER MAIN
-
1377585 COVER, EXHAUST MANIFOLDCOVER, EXHAUST MANIFOLD
-
1427-77586 GASKET, EXHAUST MANIFOLD COVERGASKET, EXHAUST MANIFOLD COVER
-
1510-32228 SCREW, (#10-32 x .625), EXHAUST MANIFOLD COVERSCREW, (#10-32 x .625), EXHAUST MANIFOLD COVER
-
161027-5546 COVER, CYLINDER BLOCKCOVER, CYLINDER BLOCK
-
1727-68942 GASKET, CYLINDER BLOCK COVERGASKET, CYLINDER BLOCK COVER
-
1810-32228 SCREW, (#10-32 x .625), CYLINDER BLOCK COVERSCREW, (#10-32 x .625), CYLINDER BLOCK COVER
-
1927-68941 GASKET, BLOCK TO BOTTOM COWLGASKET, BLOCK TO BOTTOM COWL
-
2011-24652 NUT, (.250-28), POWERHEAD STUDSNUT, (.250-28), POWERHEAD STUDS
-
2232-9938779 TUBE, BLEEDTUBE, BLEED
-
2322-56759 CONNECTOR, ADAPTORCONNECTOR, ADAPTOR
-
2421-64871A2 CHECK VALVE, CRANKCASECHECK VALVE, CRANKCASE
-
2569498 REED BLOCKREED BLOCK
-
2627-70415 GASKET, CRANKCASE TO REED BLOCKGASKET, CRANKCASE TO REED BLOCK
-
2734-69499A1 REED ASSEMBLYREED ASSEMBLY
-
2834-69500 STOP, ReedSTOP, Reed
-
2910-28430 SCREW, (#6-32 x .25), REED AND REED STOPSCREW, (#6-32 x .25), REED AND REED STOP
-
3027-70416 GASKET, REED BLOCK TO ADAPTORGASKET, REED BLOCK TO ADAPTOR
-
3170420 ADAPTOR, CARBURETOR TO REED BLOCKADAPTOR, CARBURETOR TO REED BLOCK
-
3279746 BRACKET, CABLE MOUNTINGBRACKET, CABLE MOUNTING
-
3310-69022 SCREW, (#10-32 x .500) Stainless Steel, BRACKET TO ADAPTORSCREW, (#10-32 x .500) Stainless Steel, BRACKET TO ADAPTOR
-
3410-20055 SCREW, (#10-32 x .375), CABLE MOUNTING BRACKETSCREW, (#10-32 x .375), CABLE MOUNTING BRACKET
-
-27-77586A78 GASKET SETGASKET SET
-
-72530A78 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
