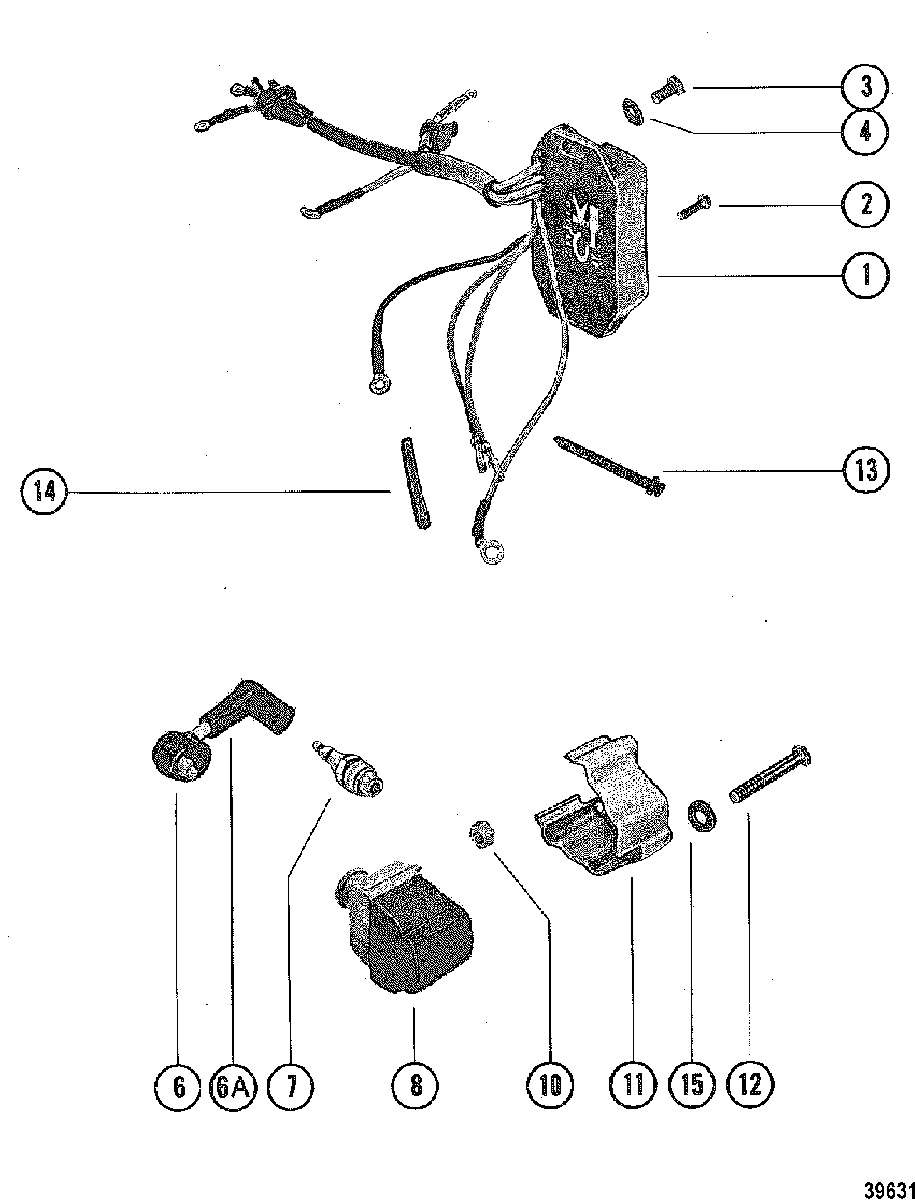

SWITCH BOX AND IGNITION COIL для Mercury - 40 (2 CYL. PRODUCT OF USA) 5589202 THRU 5595531

  • №
    Артикул
    Название
  • 1
    339-6222A8 SWITCHBOX ASSEMBLY
    SWITCHBOX ASSEMBLY
  • 2
    10-45218 SCREW, (#10-32 x .380), SWITCH BOX GROUND
    SCREW, (#10-32 x .380), SWITCH BOX GROUND
  • 3
    10-22523 SCREW, (.190-32 x .75), SWITCH BOX
    SCREW, (.190-32 x .75), SWITCH BOX
  • 4
    12-56681 WASHER, (.203 x .500 x .032), SWITCH BOX SCREW
    WASHER, (.203 x .500 x .032), SWITCH BOX SCREW
  • 6
    84-813715A1 WIRE ASSEMBLY, HIGH TENSION
    WIRE ASSEMBLY, HIGH TENSION
  • 6A
    85-63709A1 BOOT/TERMINAL KIT, SPARK PLUG
    BOOT/TERMINAL KIT, SPARK PLUG
  • 7
    33-88090 SPARK PLUG
    (USE IN BELGIUM AND CANADA)
    SPARK PLUG
    (USE IN BELGIUM AND CANADA)
  • 7
    33-8M0114744 SPARK PLUG
    (USE IN USA)
    SPARK PLUG
    (USE IN USA)
  • 8
    339-5288T2 COIL ASSEMBLY, Ignition
    COIL ASSEMBLY, Ignition
  • 10
    11-45076 NUT, (#10-32) Brass, IGNITION COIL TERMINAL
    NUT, (#10-32) Brass, IGNITION COIL TERMINAL
  • 11
    76254 COVER
    COVER
  • 12
    10-76502 SCREW, (.190-32 x 1.880), COIL COVER
    SCREW, (.190-32 x 1.880), COIL COVER
  • 13
    61990 TIE STRAP, (14.00 Inches), SWITCH BOX LEADS
    TIE STRAP, (14.00 Inches), SWITCH BOX LEADS
  • 14
    5790811 SLEEVE, SWITCH BOX LEADS
    SLEEVE, SWITCH BOX LEADS
  • 15
    12-21273 WASHER, COIL COVER SCREW
    WASHER, COIL COVER SCREW
