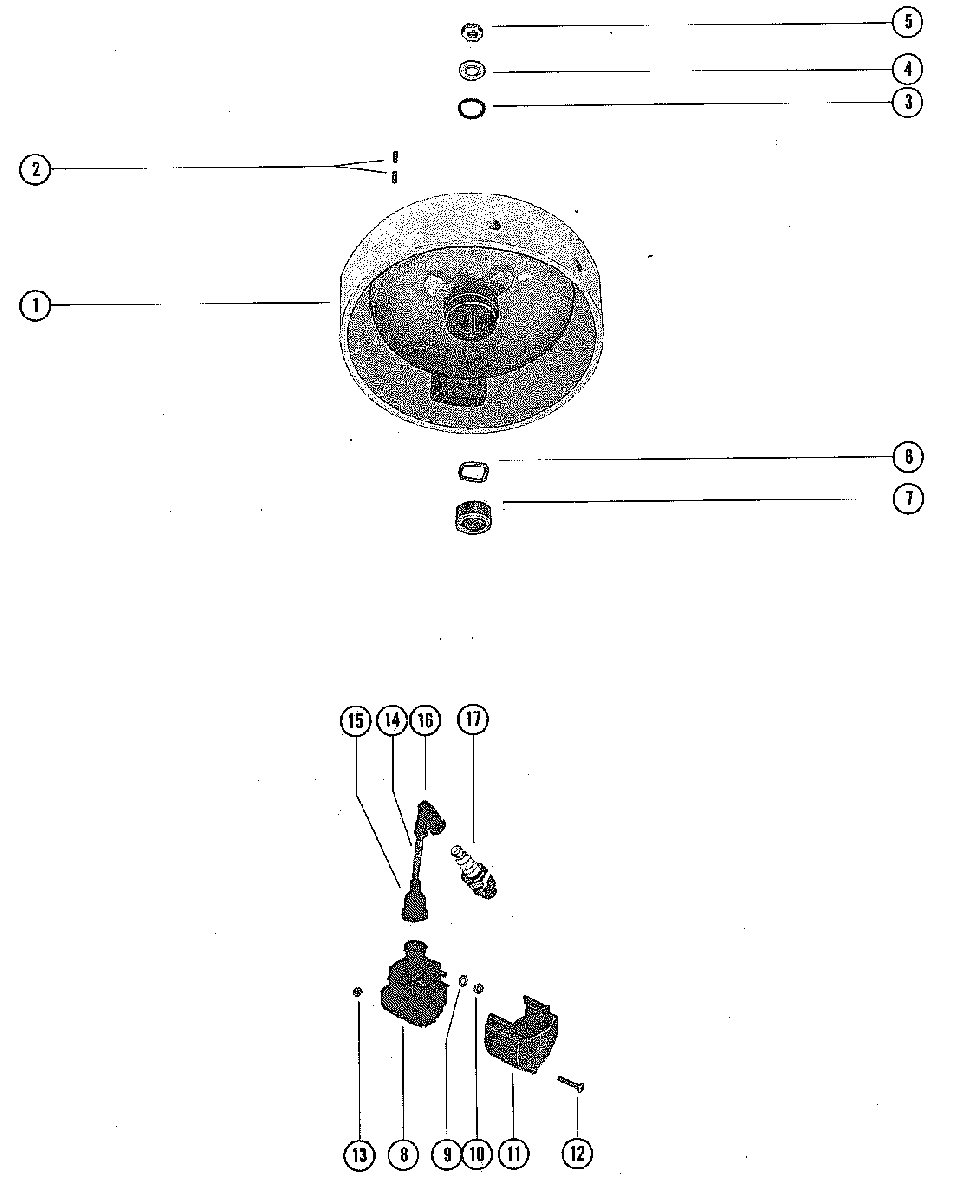

FLYWHEEL AND IGNITION COIL для Mercury - 40 (1 CYL.) 9000306 THRU 90721718

  • №
    Артикул
    Название
  • 1
    236-4475A1 FLYWHEEL ASSEMBLY
    FLYWHEEL ASSEMBLY
  • 2
    28-20094 KEY, FLYWHEEL DRIVE
    KEY, FLYWHEEL DRIVE
  • 3
    25-62701 "O" RING, FLYWHEEL NUT
    "O" RING, FLYWHEEL NUT
  • 4
    12-36245 WASHER, FLYWHEEL NUT
    WASHER, FLYWHEEL NUT
  • 5
    11-20696 NUT, FLYWHEEL
    NUT, FLYWHEEL
  • 6
    13-35629 WASHER, WAVE - CAM TENSION
    WASHER, WAVE - CAM TENSION
  • 7
    336-4465 CAM, BREAKER
    CAM, BREAKER
  • 8
    336-4528T2 COIL ASSEMBLY, IGNITION
    COIL ASSEMBLY, IGNITION
  • 9
    13-26996 LOCKWASER, IGNITION COIL TERMINAL
    LOCKWASER, IGNITION COIL TERMINAL
  • 10
    11-45076 NUT, IGNITION COIL TERMINAL
    NUT, IGNITION COIL TERMINAL
  • 11
    66355 COVER, IGNITION COIL
    COVER, IGNITION COIL
  • 12
    10-61530 SCREW, COIL COVER TO REAR SUPPORT GRACKET (3 3/4")
    SCREW, COIL COVER TO REAR SUPPORT GRACKET (3 3/4")
  • 13
    11-27164 NUT, COIL COVER SCREW
    NUT, COIL COVER SCREW
  • 14
    84-813715A1 LEAD ASSEMBLY, HIGH TENSION
    LEAD ASSEMBLY, HIGH TENSION
  • 15
    332-2854T01 NIPPLE, IGNITION COIL
    NIPPLE, IGNITION COIL
  • 16
    85-63709A1 PROTECTOR ASSEMBLY, SPAR PLUG
    PROTECTOR ASSEMBLY, SPAR PLUG
  • 17
    33-97182Q SPARK PLUG (AC #40FFK)
    SPARK PLUG (AC #40FFK)
