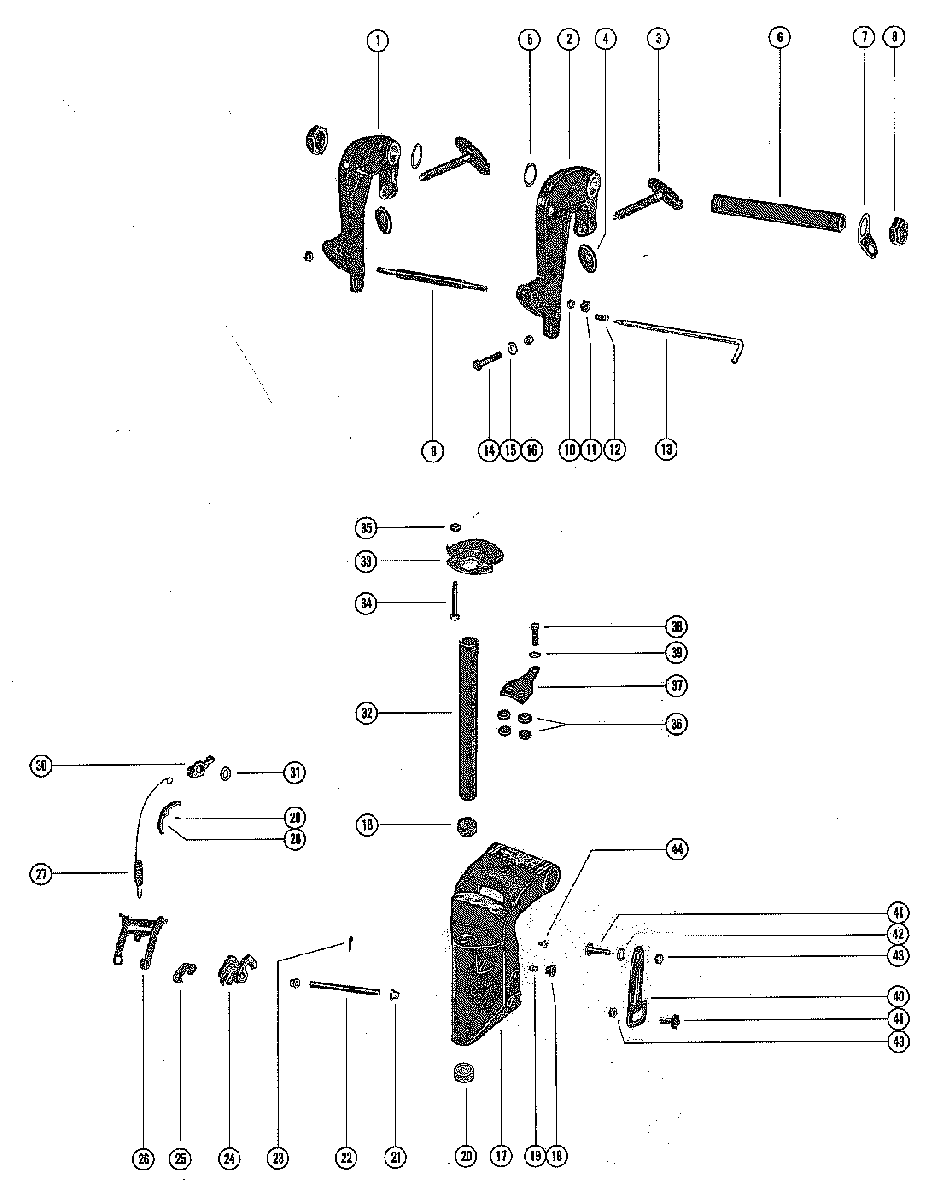

CLAMP AND SWIVEL BRACKET ASSEMBLY (SERIAL GROUP #2) для Mercury - 40 (1 CYL.) 9000306 THRU 90721718

  • №
    Артикул
    Название
  • 1
    1468-5570A3 CLAMP BRACKET ASSEMBLY (PORT)
    CLAMP BRACKET ASSEMBLY (PORT)
  • 2
    1467-5571A3 CLAMP BRACKET ASSEMBLY (STARBOARD)
    CLAMP BRACKET ASSEMBLY (STARBOARD)
  • 3
    59170A3 THUMB SCREW ASSEMBLY
    THUMB SCREW ASSEMBLY
  • 4
    12-26227 WASHER, THUMB SCREW
    WASHER, THUMB SCREW
  • 5
    12-52864 WASHER, TILT TUBE - CLAMP TO SWIVEL BRACKET
    WASHER, TILT TUBE - CLAMP TO SWIVEL BRACKET
  • 6
    45757 TILT TUBE, CLAMP TO SWIVEL BRACKET
    TILT TUBE, CLAMP TO SWIVEL BRACKET
  • 7
    54-8M0085928 CLIP, SAFETY CHAIN - TILT TUBE
    CLIP, SAFETY CHAIN - TILT TUBE
  • 8
    11-858869 NUT, TILT TUBE FASTENING
    NUT, TILT TUBE FASTENING
  • 9
    16-59622 STUD, CLAMP BRACKET
    STUD, CLAMP BRACKET
  • 10
    13-26992 LOCKWASHER, CLAMP BRACKET STUD
    LOCKWASHER, CLAMP BRACKET STUD
  • 11
    11-29598 NUT, CLAMP BRACKET STUD
    NUT, CLAMP BRACKET STUD
  • 12
    24-62143 SPRING, TILT LOCK PIN
    SPRING, TILT LOCK PIN
  • 13
    17-55952A1 TILT LOCK PIN ASSEMBLY
    TILT LOCK PIN ASSEMBLY
  • 14
    10-67982 BOLT, CLAMP BRACKET TO BOAT
    BOLT, CLAMP BRACKET TO BOAT
  • 15
    12-67983 WASHER, CLAMP BRACKET SCREW
    WASHER, CLAMP BRACKET SCREW
  • 16
    11-8267098 NUT, CLAMP BRACKET SCREW
    NUT, CLAMP BRACKET SCREW
  • 17
    1471-5822A1 SWIVEL BRACKET
    UNITED STATES 3529446 AND UP
    AUSTRALIA 8005740 AND UP
    BELGIUM 9012109 AND UP
    CANADA 7011058 AND UP
    SWIVEL BRACKET
    UNITED STATES 3529446 AND UP
    AUSTRALIA 8005740 AND UP
    BELGIUM 9012109 AND UP
    CANADA 7011058 AND UP
  • 17
    1471-5822A1 SWIVEL BRACKET ASSEMBLY
    UNITED STATES 3529446 THRU 3764824
    AUSTRALIA 8005740 THRU 8014364
    BELGIUM 9012109 THRU 9037733
    CANADA 7011058 THRU 7025897
    SWIVEL BRACKET ASSEMBLY
    UNITED STATES 3529446 THRU 3764824
    AUSTRALIA 8005740 THRU 8014364
    BELGIUM 9012109 THRU 9037733
    CANADA 7011058 THRU 7025897
  • 18
    19-77633Q LUBRICAP, GREASE FITTING - SWIVEL BRACKET
    UNITED STATES 3529446 THRU 3764824
    AUSTRALIA 8005740 THRU 8014364
    BELGIUM 9012109 THRU 9037733
    CANADA 7011058 THRU 7025897
    LUBRICAP, GREASE FITTING - SWIVEL BRACKET
    UNITED STATES 3529446 THRU 3764824
    AUSTRALIA 8005740 THRU 8014364
    BELGIUM 9012109 THRU 9037733
    CANADA 7011058 THRU 7025897
  • 19
    22-74036 FITTING, GREASE - SWIVEL BRACKET
    UNITED STATES 3529446 THRU 3764824
    AUSTRALIA 8005740 THRU 8014364
    BELGIUM 9012109 THRU 9037733
    CANADA 7011058 THRU 7025897
    FITTING, GREASE - SWIVEL BRACKET
    UNITED STATES 3529446 THRU 3764824
    AUSTRALIA 8005740 THRU 8014364
    BELGIUM 9012109 THRU 9037733
    CANADA 7011058 THRU 7025897
  • 20
    23-64028 BUSHING, SWIVEL BRACKET
    BUSHING, SWIVEL BRACKET
  • 21
    23-26841 BUSHING, NYLON - REVERSE LOCK LEVER ROD
    BUSHING, NYLON - REVERSE LOCK LEVER ROD
  • 22
    63551 ROD, REVERSE LOCK TO SWIVEL BRACKET
    ROD, REVERSE LOCK TO SWIVEL BRACKET
  • 23
    18-45882 COTTER PIN, RECERSE LOCK LEVER TO ROD
    COTTER PIN, RECERSE LOCK LEVER TO ROD
  • 24
    63628T LEVER, REVERSE LOCK
    LEVER, REVERSE LOCK
  • 25
    61007 RETAINER, ROD - REVERSE LOCK
    RETAINER, ROD - REVERSE LOCK
  • 26
    63559T BRACKET, TROLL
    BRACKET, TROLL
  • 27
    24-63630 SPRING, EXTENSION - TROLL BRACKET
    SPRING, EXTENSION - TROLL BRACKET
  • 28
    63554 GUIDE, SPRING
    GUIDE, SPRING
  • 29
    17-25319 ROLL PIN, SPRING GUIDE
    ROLL PIN, SPRING GUIDE
  • 30
    79744 LEVER, CONTROL - TROLL BRACKET
    LEVER, CONTROL - TROLL BRACKET
  • 31
    13-63631 WASHER, WAVE - TROLL BRACKET LEVER
    WASHER, WAVE - TROLL BRACKET LEVER
  • 32
    66559 SWIVEL PIN, SWIVEL BRACKET TO SADDLE
    UNITED STATES 3529446 AND UP
    AUSTRALIA 8005740 AND UP
    BELGIUM 9012109 AND UP
    CANADA 7011058 AND UP
    SWIVEL PIN, SWIVEL BRACKET TO SADDLE
    UNITED STATES 3529446 AND UP
    AUSTRALIA 8005740 AND UP
    BELGIUM 9012109 AND UP
    CANADA 7011058 AND UP
  • 32
    66559 SWIVEL PIN, SWIVEL BRACKET TO SADDLE
    UNITED STATES 3529446 THRU 3764824
    AUSTRALIA 8005740 THRU 8014364
    BELGIUM 9012109 THRU 9037733
    CANADA 7011058 THRU 7025897
    SWIVEL PIN, SWIVEL BRACKET TO SADDLE
    UNITED STATES 3529446 THRU 3764824
    AUSTRALIA 8005740 THRU 8014364
    BELGIUM 9012109 THRU 9037733
    CANADA 7011058 THRU 7025897
  • 33
    77334 CO-PILOT DISC
    CO-PILOT DISC
  • 34
    10-30679 SCREW, CO-PILOT DISC TO SADDLE (2 1/4")
    SCREW, CO-PILOT DISC TO SADDLE (2 1/4")
  • 35
    11-20184 NUT, CO-PILOT DISC FASTENING SCREW
    NUT, CO-PILOT DISC FASTENING SCREW
  • 36
    20203 DISC, FRICTION - CLAMP PLATE AND SWIVEL BRACKET
    DISC, FRICTION - CLAMP PLATE AND SWIVEL BRACKET
  • 37
    63647 PLATE, CLAMP - CO-PILOT
    PLATE, CLAMP - CO-PILOT
  • 38
    10-62506 SCREW, CLAMP PLATE ADJUSTING (1 5/8")
    SCREW, CLAMP PLATE ADJUSTING (1 5/8")
  • 39
    12-35462 WASHER, CLAMP PLATE ADKJUSTING SCREW
    WASHER, CLAMP PLATE ADKJUSTING SCREW
  • 40
    63310A1 LEVER ASSEMBLY, TILT STOP
    LEVER ASSEMBLY, TILT STOP
  • 41
    10-41433 SCREW, TILT STOP LEVER
    SCREW, TILT STOP LEVER
  • 42
    13-31030 WASHER, WAVE - LEVER ANCHOR SCREW
    WASHER, WAVE - LEVER ANCHOR SCREW
  • 43
    11-826709109 NUT, TILT STOP LEVER SCREW
    NUT, TILT STOP LEVER SCREW
  • 44
    10-36398 SCREW, SWIVEL BRACKET (1/4")
    SCREW, SWIVEL BRACKET (1/4")
