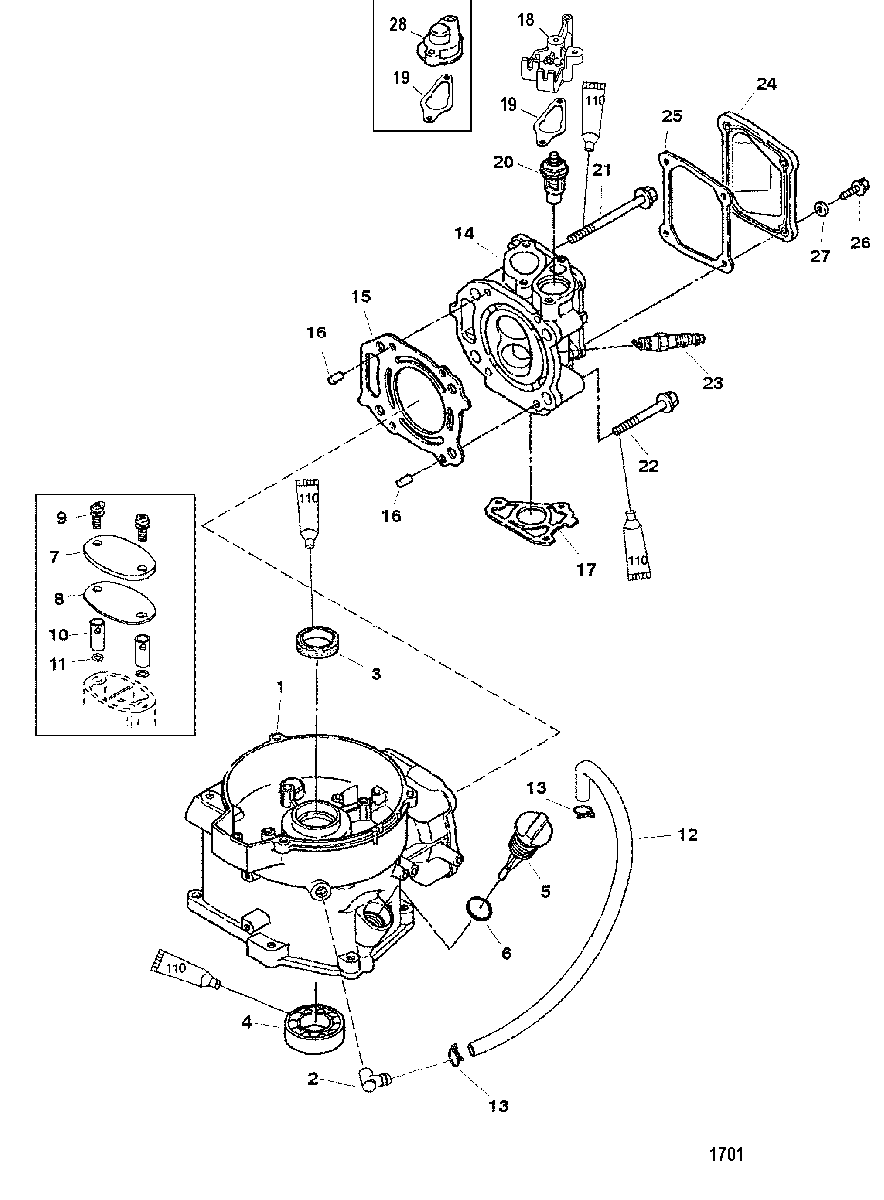

Cylinder Block для Mercury - 4 (4-STROKE) 0R000001 THRU 0R067089

  • №
    Артикул
    Название
  • 1
    878-815013T2 CYLINDER BLOCK
    CYLINDER BLOCK
  • 2
    22-8M0071347 FITTING
    FITTING
  • 3
    26-898101285 SEAL, Oil
    SEAL, Oil
  • 4
    30-161324 BEARING, Ball
    BEARING, Ball
  • 5
    803512 CAP, Filler
    CAP, Filler
  • 6
    25-803513 O-RING
    O-RING
  • 7
    803511 CAP
    CAP
  • 8
    27-80350811 GASKET
    GASKET
  • 9
    10-8230319 BOLT
    BOLT
  • 10
    17-804369 BREATHER TUBE
    BREATHER TUBE
  • 11
    12-804370 WASHER
    WASHER
  • 12
    32-952235 TUBING
    TUBING
  • 13
    54-952245 CLAMP
    CLAMP
  • 14
    900-8M0119549 CYLINDER HEAD
    (4/5 H.P.) SN# 0R017220 & Up
    CYLINDER HEAD
    (4/5 H.P.) SN# 0R017220 & Up
  • 14
    979-9630T4 CYLINDER HEAD
    (4/5 H.P.) SN# 0R017219 & Below
    CYLINDER HEAD
    (4/5 H.P.) SN# 0R017219 & Below
  • 14
    900-8M0119549 CYLINDER HEAD
    (6 H.P.)
    CYLINDER HEAD
    (6 H.P.)
  • 15
    27-803508 GASKET
    GASKET
  • 16
    17-16119 PIN, Dowel
    PIN, Dowel
  • 17
    27-803508012 GASKET
    GASKET
  • 18
    853705006 COVER, Thermostat
    (Design II)
    COVER, Thermostat
    (Design II)
  • 19
    27-853702005 GASKET
    GASKET
  • 20
    804540 THERMOSTAT (126 Degrees F)(52 Degrees C)
    THERMOSTAT (126 Degrees F)(52 Degrees C)
  • 21
    10-803509 BOLT, (M8 x 90)
    BOLT, (M8 x 90)
  • 22
    10-8035091 BOLT, (M8 x 60)
    BOLT, (M8 x 60)
  • 23
    33-803507 SPARK PLUG, NGK#DCPR6E (NGK#DCPR6E)
    SPARK PLUG, NGK#DCPR6E (NGK#DCPR6E)
  • 24
    803510 COVER
    COVER
  • 25
    27-8035082 GASKET
    GASKET
  • 26
    10-168283 BOLT, (M6 x 20)
    BOLT, (M6 x 20)
  • 27
    12-953921 WASHER, Stainless Steel
    WASHER, Stainless Steel
  • 28
    8537052 CAP
    (Design I)
    CAP
    (Design I)
  • -
    27-8M0114820 GASKET SET, Powerhead
    SN# 0R057259 & Below
    GASKET SET, Powerhead
    SN# 0R057259 & Below
  • -
    27-803508A05 GASKET SET, Powerhead
    SN# 0R057259 & Up
    GASKET SET, Powerhead
    SN# 0R057259 & Up
  • -
    804797A05 POWERHEAD ASSEMBLY
    (4/5 H.P.) SN# 0R017220 & Up
    POWERHEAD ASSEMBLY
    (4/5 H.P.) SN# 0R017220 & Up
  • -
    804797A05 POWERHEAD ASSEMBLY
    (4 H.P.) SN# 0R017219 & Below
    POWERHEAD ASSEMBLY
    (4 H.P.) SN# 0R017219 & Below
  • -
    804797A05 POWERHEAD ASSEMBLY
    (5 H.P.) SN# 0R017219 & Below
    POWERHEAD ASSEMBLY
    (5 H.P.) SN# 0R017219 & Below
  • -
    804797A05 POWERHEAD ASSEMBLY
    (6 H.P.)
    POWERHEAD ASSEMBLY
    (6 H.P.)
