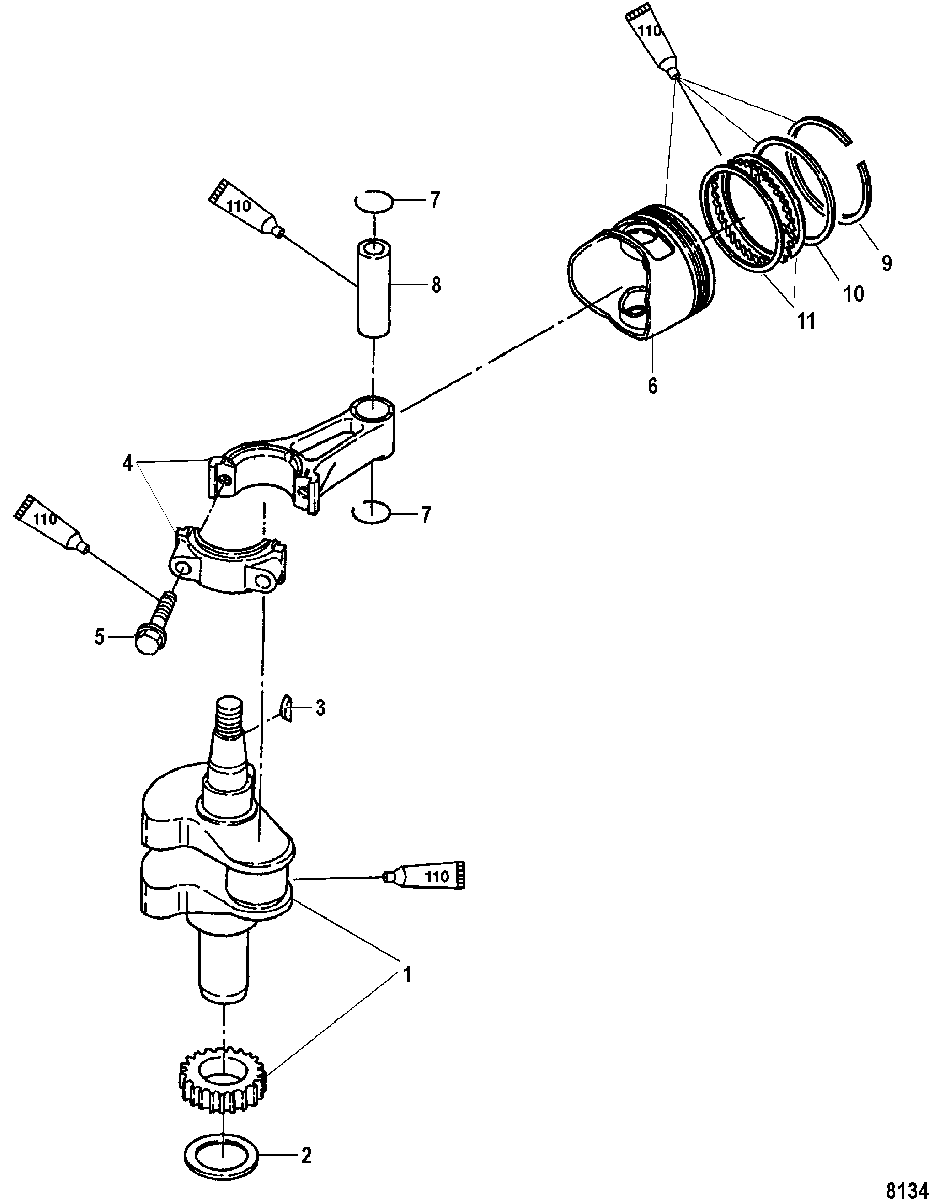

Crankshaft, Piston and Connecting Rods для Mercury - 4 (4-STROKE) 0R000001 THRU 0R067089

  • №
    Артикул
    Название
  • 1
    474-803515T CRANKSHAFT
    CRANKSHAFT
  • 2
    12-803516 WASHER
    WASHER
  • 3
    28-16053 KEY
    KEY
  • 4
    600-8M0124936 CONNECTING ROD
    CONNECTING ROD
  • 5
    10-8035092 BOLT
    BOLT
  • 6
    779-804768A03 PISTON ASSEMBLY
    (Standard)(4/5/6)(Includes rings, e-rings and piston pin) SN# 0R028048 & Up
    PISTON ASSEMBLY
    (Standard)(4/5/6)(Includes rings, e-rings and piston pin) SN# 0R028048 & Up
  • 6
    779-804768A03 PISTON
    (Standard)(4/5/6)(Bare Piston) SN# 0R028048 & Up
    PISTON
    (Standard)(4/5/6)(Bare Piston) SN# 0R028048 & Up
  • 6
    779-804768A03 PISTON
    (Standard)(4/5/6)(Bare Piston) SN# 0R023867 THRU 0R028047
    PISTON
    (Standard)(4/5/6)(Bare Piston) SN# 0R023867 THRU 0R028047
  • 6
    779-804768A03 PISTON
    (Standard)(4/5 H.P.)(Bare Piston) SN# 0R017220 THRU 0R023866
    PISTON
    (Standard)(4/5 H.P.)(Bare Piston) SN# 0R017220 THRU 0R023866
  • 6
    39-8M0094922 PISTON ASSEMBLY
    (.5 MM Oversize)(4/5/6)(Includes rings, e-rings and piston pin) SN# 0R028048 & Up
    PISTON ASSEMBLY
    (.5 MM Oversize)(4/5/6)(Includes rings, e-rings and piston pin) SN# 0R028048 & Up
  • 6
    39-8M0094922 PISTON
    (.5 MM Oversize)(4/5/6)(Bare Piston) SN# 0R028048 & Up
    PISTON
    (.5 MM Oversize)(4/5/6)(Bare Piston) SN# 0R028048 & Up
  • 6
    39-8M0094922 PISTON
    (.5 MM Oversize)(4/5 HP))(Bare Piston) SN# 0R017220 THRU 0R028047
    PISTON
    (.5 MM Oversize)(4/5 HP))(Bare Piston) SN# 0R017220 THRU 0R028047
  • 6
    779-803517T PISTON
    (Standard)(4/5 H.P.)(Bare Piston) SN# 0R017219 & Below
    PISTON
    (Standard)(4/5 H.P.)(Bare Piston) SN# 0R017219 & Below
  • 6
    779-803517T1 PISTON
    (.5 MM Oversize)(4/5 H.P.)(Bare Piston) SN# 0R017219 & Below
    PISTON
    (.5 MM Oversize)(4/5 H.P.)(Bare Piston) SN# 0R017219 & Below
  • 6
    779-804768A03 PISTON
    (Standard) (6 HP)(Bare Piston) SN# 0R023866 & Below
    PISTON
    (Standard) (6 HP)(Bare Piston) SN# 0R023866 & Below
  • 6
    39-8M0094922 PISTON
    (.5 Oversize) (6 HP)(Bare Piston) SN# 0R028047 & Below
    PISTON
    (.5 Oversize) (6 HP)(Bare Piston) SN# 0R028047 & Below
  • 7
    53-160573 E RING
    E RING
  • 8
    41-898103113 PIN, Piston
    PIN, Piston
  • -
    39-803518T01 RING SET, Piston
    (Standard)
    RING SET, Piston
    (Standard)
  • -
    39-8M0094921 RING SET, Piston
    (.5 Oversize)
    RING SET, Piston
    (.5 Oversize)
  • 9
    39-803518T01 RING, Piston - Top
    (Standard)
    RING, Piston - Top
    (Standard)
  • 9
    39-8035181 RING, Piston - Top
    (.5 Oversize)
    RING, Piston - Top
    (.5 Oversize)
  • 10
    39-803518T01 RING, Piston - Second
    (Standard)
    RING, Piston - Second
    (Standard)
  • 10
    39-8035191 RING, Piston - Second
    (.5 Oversize)
    RING, Piston - Second
    (.5 Oversize)
  • 11
    26-803520 RING, Oil
    (Standard)
    RING, Oil
    (Standard)
  • 11
    39-8M0094921 RING, Oil
    (.5 Oversize)
    RING, Oil
    (.5 Oversize)
