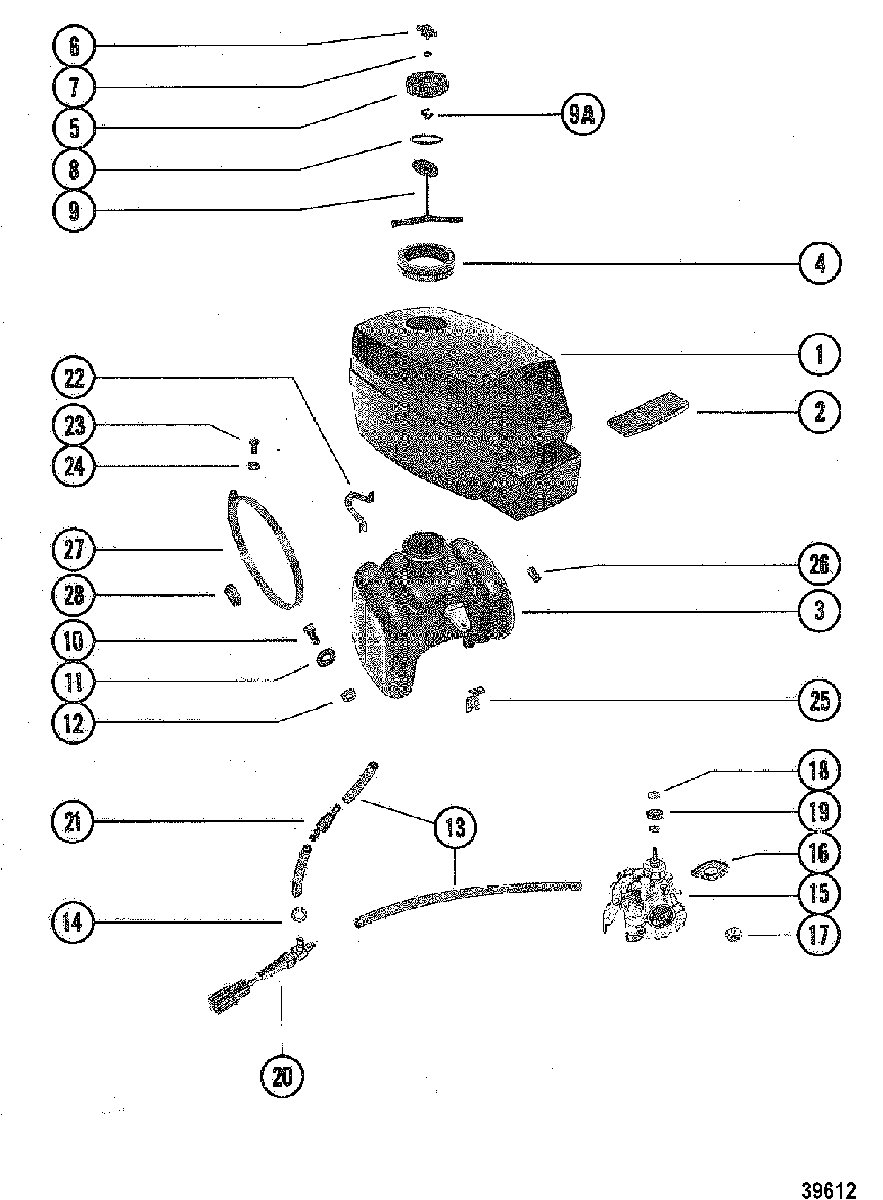

TOP COWL, FUEL TANK AND CARBURETOR для Mercury - 3.6 9252831 & Up

  • №
    Артикул
    Название
  • 1
    2178-8158A1 TOP COWL ASSEMBLY
    SN# US-5802240/Australia-8067864/Belgium-9293010/Canada-7166027 & Below
    TOP COWL ASSEMBLY
    SN# US-5802240/Australia-8067864/Belgium-9293010/Canada-7166027 & Below
  • 1
    2178-8158A1 TOP COWL ASSEMBLY
    SN# US-5802241/Australia-8067865/Belgium-9293011/Canada-7166028 & Up
    TOP COWL ASSEMBLY
    SN# US-5802241/Australia-8067865/Belgium-9293011/Canada-7166028 & Up
  • 2
    94108A1 COVER, CARBURETOR (TOP COWL)
    SN# US-5802240/Australia-8067864/Belgium-9293010/Canada-7166027 & Below
    COVER, CARBURETOR (TOP COWL)
    SN# US-5802240/Australia-8067864/Belgium-9293010/Canada-7166027 & Below
  • 2
    94108A1 COVER, CARBURETOR (TOP COWL)
    SN# US-5802241/Australia-8067865/Belgium-9293011/Canada-7166028 & Up
    COVER, CARBURETOR (TOP COWL)
    SN# US-5802241/Australia-8067865/Belgium-9293011/Canada-7166028 & Up
  • 3
    1253-8082 TANK, Fuel
    SN# US-5802240/Australia-8067864/Belgium-9293010/Canada-7166027 & Below
    TANK, Fuel
    SN# US-5802240/Australia-8067864/Belgium-9293010/Canada-7166027 & Below
  • 3
    1253-8082 TANK, Fuel
    SN# US-5802241/Australia-8067865/Belgium-9293011/Canada-7166028 & Up
    TANK, Fuel
    SN# US-5802241/Australia-8067865/Belgium-9293011/Canada-7166028 & Up
  • 4
    27-98807 GROMMET, TOP COWL
    GROMMET, TOP COWL
  • 5
    36-41660A2 CAP ASSEMBLY, Fuel
    CAP ASSEMBLY, Fuel
  • 6
    88297 SCREW, VENT
    SCREW, VENT
  • 7
    25-69643 O-RING, VENT SCREW
    O-RING, VENT SCREW
  • 8
    25-26722 O-RING, FUEL CAP
    O-RING, FUEL CAP
  • 9
    88298 RETAINER, FUEL CAP
    RETAINER, FUEL CAP
  • 9A
    11-91925 PUSH NUT, SPEED-FUEL CAP RETAINER
    PUSH NUT, SPEED-FUEL CAP RETAINER
  • 10
    10-76630 SCREW, (.250-20 x 1.00), FUEL TANK TO POWERHEAD
    SCREW, (.250-20 x 1.00), FUEL TANK TO POWERHEAD
  • 11
    12-69057 WASHER, FUEL TANK SCREW
    WASHER, FUEL TANK SCREW
  • 12
    11-29031 NUT, (1/4-20), FUEL TANK SCREW
    NUT, (1/4-20), FUEL TANK SCREW
  • 13
    32-9912878 LINE, Fuel (12" AND 3 1/4")
    LINE, Fuel (12" AND 3 1/4")
  • 14
    54-68424 CLAMP, FUEL LINE ATTACHING
    CLAMP, FUEL LINE ATTACHING
  • 15
    1385-7568 CARBURETOR
    CARBURETOR
  • 16
    27-70417 GASKET, CARBURETOR
    GASKET, CARBURETOR
  • 17
    91-30406 NUT, CARBURETOR ATTACHING
    NUT, CARBURETOR ATTACHING
  • 18
    88223 FOLLOWER, Cam
    FOLLOWER, Cam
  • 19
    11-4002027 NUT, CAM FOLLOWER TO CARBURETOR
    NUT, CAM FOLLOWER TO CARBURETOR
  • 20
    20-89398 VALVE, FUEL SHUT-OFF
    VALVE, FUEL SHUT-OFF
  • 21
    35-76934 FILTER, Fuel
    FILTER, Fuel
  • 22
    97417 BRACKET, FUEL TANK-REAR
    BRACKET, FUEL TANK-REAR
  • 23
    10-90565 SCREW, (.250-20 x .310), FUEL TANK CLAMP
    SCREW, (.250-20 x .310), FUEL TANK CLAMP
  • 24
    12-814806 WASHER, FUEL TANK SCREW
    WASHER, FUEL TANK SCREW
  • 25
    90501 BRACKET, FUEL TANK-FRONT
    BRACKET, FUEL TANK-FRONT
  • 26
    23-90396 BUMPER, FUEL TANK
    BUMPER, FUEL TANK
  • 27
    54-90497 CLAMP, FUEL TANK ATTACHING
    CLAMP, FUEL TANK ATTACHING
  • 28
    714933 MOLDING, TRIM-FUEL TANK CLAMP
    MOLDING, TRIM-FUEL TANK CLAMP
  • -
    27-98540A83 GASKET SET
    GASKET SET
