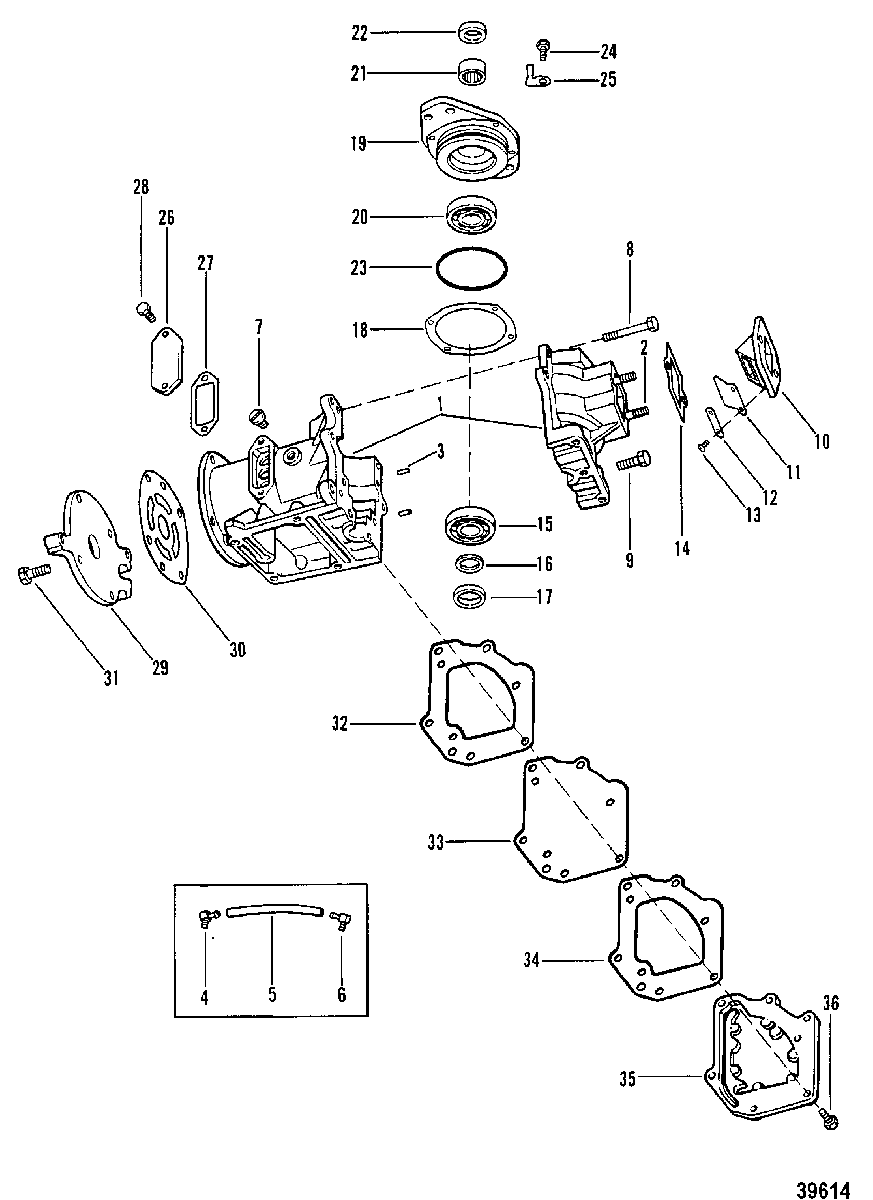

CYLINDER BLOCK AND CRANKCASE ASSEMBLY для Mercury - 3.6 9252831 & Up

  • №
    Артикул
    Название
  • 1
    843-8694A3 CYLINDER BLOCK ASSEMBLY
    SN# US-5802240/Australia-8067864/Belgium-9293010/Canada-7166027 & Below
    CYLINDER BLOCK ASSEMBLY
    SN# US-5802240/Australia-8067864/Belgium-9293010/Canada-7166027 & Below
  • 1
    843-8694A3 CYLINDER BLOCK ASSEMBLY
    SN# US-5802241/Australia-8067865/Belgium-9293011/Canada-7166028 & Up
    CYLINDER BLOCK ASSEMBLY
    SN# US-5802241/Australia-8067865/Belgium-9293011/Canada-7166028 & Up
  • 2
    16-66021 STUD, CARBURETOR
    STUD, CARBURETOR
  • 3
    17-8M0084726 PIN, Dowel (.187 x .530), CRANKCASE TO CYLINDER BLOCK
    PIN, Dowel (.187 x .530), CRANKCASE TO CYLINDER BLOCK
  • 4
    22-89275 FITTING, BLEED DRAIN
    FITTING, BLEED DRAIN
  • 5
    32-9912688 HOSE, BLEED DRAIN (8")
    HOSE, BLEED DRAIN (8")
  • 6
    22-887801 ELBOW, Tell-Tale Tubing, BLEED DRAIN
    ELBOW, Tell-Tale Tubing, BLEED DRAIN
  • 7
    22-390721 SCREW, CYLINDER BLOCK
    SCREW, CYLINDER BLOCK
  • 8
    10-73280 SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/2")
    SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/2")
  • 9
    10-76621 SCREW, CRANKCASE TO CYLINDER BLOCK (1")
    SCREW, CRANKCASE TO CYLINDER BLOCK (1")
  • 10
    70726 REED BLOCK
    REED BLOCK
  • 11
    34-35836 REED, INLET VALVE
    REED, INLET VALVE
  • 12
    34-22215 RETAINER, REED
    RETAINER, REED
  • 13
    10-28430 SCREW, (#6-32 x .25), REED AND RETAINER TO BLOCK
    SCREW, (#6-32 x .25), REED AND RETAINER TO BLOCK
  • 14
    27-357391 GASKET, REED BLOCK TO CRANKCASE
    GASKET, REED BLOCK TO CRANKCASE
  • 15
    30-72961 BEARING, Ball, CRANKCASE (LOWER)
    BEARING, Ball, CRANKCASE (LOWER)
  • 16
    23-89794 SPACER, LOWER BALL BEARING
    SPACER, LOWER BALL BEARING
  • 17
    26-56397 SEAL, Oil, CRANKCASE (LOWER)
    SEAL, Oil, CRANKCASE (LOWER)
  • 18
    15-31412A1 SHIM
    SHIM
  • 19
    1132-7536A2 HOUSING ASSEMBLY, Bearing
    HOUSING ASSEMBLY, Bearing
  • 20
    30-72961 BEARING, Ball, BEARING HOUSING
    BEARING, Ball, BEARING HOUSING
  • 21
    31-31410 BEARING, Roller, BEARING HOUSING
    BEARING, Roller, BEARING HOUSING
  • 22
    26-66301 SEAL, Oil, BEARING HOUSING
    SEAL, Oil, BEARING HOUSING
  • 23
    25-20863 O-RING, BEARING HOUSING
    O-RING, BEARING HOUSING
  • 24
    10-39002 SCREW, BEARING HOUSING (1/2")
    SCREW, BEARING HOUSING (1/2")
  • 25
    88222 TAB, GROUND-BEARING HOUSING SCREW
    TAB, GROUND-BEARING HOUSING SCREW
  • 26
    35658 COVER, TRANSFER COVER
    COVER, TRANSFER COVER
  • 27
    27-35657 GASKET, TRANSFER PORT COVER
    GASKET, TRANSFER PORT COVER
  • 28
    10-20720 SCREW, (.190-24 x .62)
    SCREW, (.190-24 x .62)
  • 29
    1029-7527 COVER, CYLINDER BLOCK
    COVER, CYLINDER BLOCK
  • 30
    27-416151 GASKET, COVER TO CYLINDER BLOCK
    GASKET, COVER TO CYLINDER BLOCK
  • 31
    10-76630 SCREW, (.250-20 x 1.00)
    SCREW, (.250-20 x 1.00)
  • 32
    27-416141 GASKET, CYLINDER BLOCK TO BAFFLE PLATE
    GASKET, CYLINDER BLOCK TO BAFFLE PLATE
  • 33
    46234 PLATE, BAFFLE-EXHAUST MANIFOLD
    PLATE, BAFFLE-EXHAUST MANIFOLD
  • 34
    27-416141 GASKET
    GASKET
  • 35
    46171 COVER, EXHAUST MANIFOLD
    COVER, EXHAUST MANIFOLD
  • 36
    10-49668 SCREW, (.250-20 x .750)
    SCREW, (.250-20 x .750)
  • -
    27-98540A83 GASKET SET
    GASKET SET
  • -
    88675A83 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
