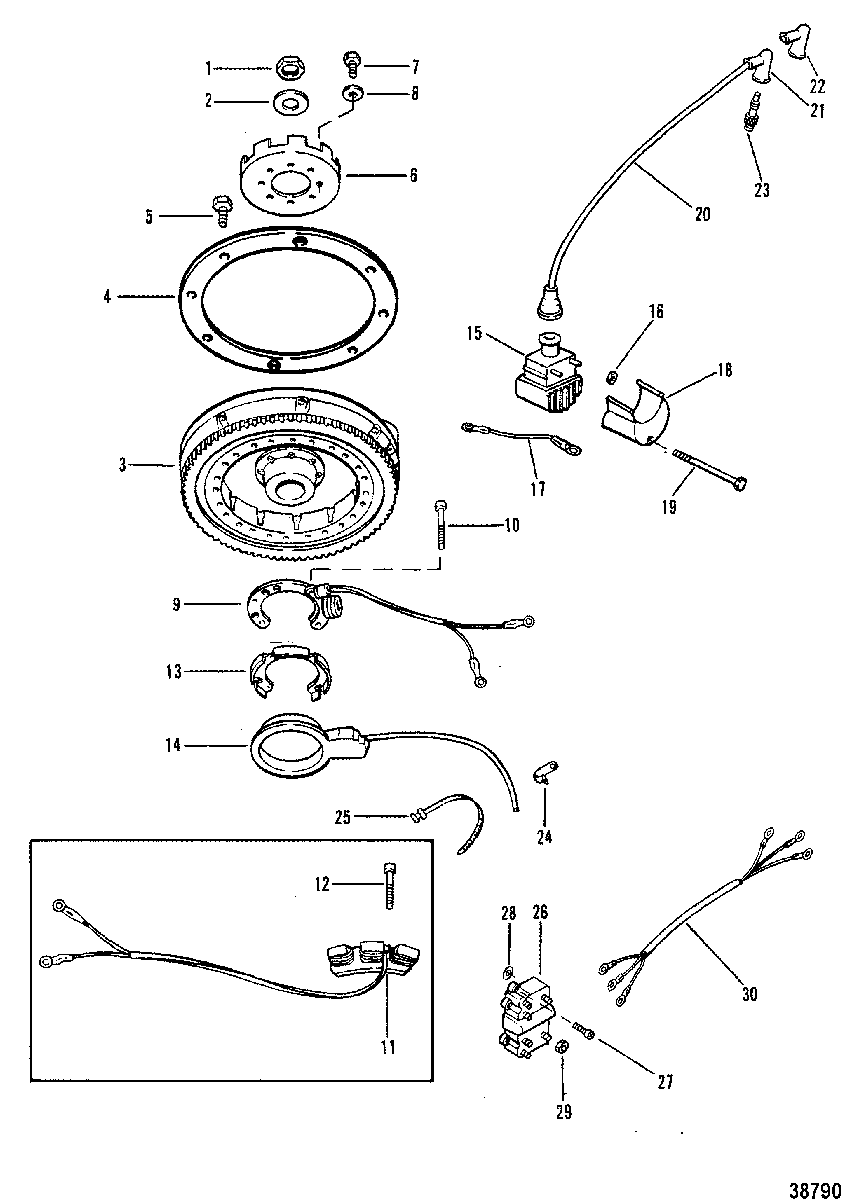

FLYWHEEL, IGNITION COIL AND SWITCH BOX для Mercury - 35 (2 CYL.) 9384476 & Up

  • №
    Артикул
    Название
  • 1
    11-22339 NUT, (.625-18), FLYWHEEL
    NUT, (.625-18), FLYWHEEL
  • 2
    12-33001 WASHER, (.641 x 1.250 x .190), FLYWHEEL NUT
    WASHER, (.641 x 1.250 x .190), FLYWHEEL NUT
  • 3
    242-7912A14 FLYWHEEL ASSEMBLY
    (MANUAL)
    FLYWHEEL ASSEMBLY
    (MANUAL)
  • 3
    242-7912A12 FLYWHEEL ASSEMBLY, 77 TEETH
    (ELECTRIC)
    FLYWHEEL ASSEMBLY, 77 TEETH
    (ELECTRIC)
  • 4
    41409A1 INERTIA RING ASSEMBLY
    INERTIA RING ASSEMBLY
  • 5
    10-32417 SCREW, (.250-28 x .625), FLYWHEEL
    SCREW, (.250-28 x .625), FLYWHEEL
  • 6
    50-65213 RATCHET, FLYWHEEL
    MANUAL
    RATCHET, FLYWHEEL
    MANUAL
  • 7
    10-68997 SCREW, (.312-24 x .750)
    MANUAL
    SCREW, (.312-24 x .750)
    MANUAL
  • 8
    13-20202 LOCKWASHER
    MANUAL
    LOCKWASHER
    MANUAL
  • 9
    86617A20 STATOR
    (BOLT/NUT CONNECTORS)
    STATOR
    (BOLT/NUT CONNECTORS)
  • 9
    86617A20 STATOR ASSEMBLY
    (BULLET CONNECTORS)
    STATOR ASSEMBLY
    (BULLET CONNECTORS)
  • 10
    10-77363 SCREW, (#10-24 x 1.50)
    SCREW, (#10-24 x 1.50)
  • 10
    10-19926100 SCREW, (#10-24 x 1.00)
    SCREW, (#10-24 x 1.00)
  • 11
    86704A10 STATOR ASSEMBLY, CHARGING
    ELECTRIC
    STATOR ASSEMBLY, CHARGING
    ELECTRIC
  • 12
    10-93787 SCREW, (#10-24 x 1.750)
    ELECTRIC
    SCREW, (#10-24 x 1.750)
    ELECTRIC
  • 13
    95707 SUPPORT, Stator
    SUPPORT, Stator
  • 14
    92431A6 TRIGGER PLATE
    (BOLT/NUT CONNECTORS)
    TRIGGER PLATE
    (BOLT/NUT CONNECTORS)
  • 14
    92431A6 TRIGGER PLATE
    (BULLET CONNECTORS)
    TRIGGER PLATE
    (BULLET CONNECTORS)
  • 15
    339-832757A4 COIL ASSEMBLY, Ignition
    COIL ASSEMBLY, Ignition
  • 16
    11-45076 NUT, (#10-32) Brass, COIL TERMINAL
    NUT, (#10-32) Brass, COIL TERMINAL
  • 17
    84-60466A8 CABLE ASSEMBLY, Black, COIL COVER SCREW
    CABLE ASSEMBLY, Black, COIL COVER SCREW
  • 18
    76254 COVER, IGNITION COIL
    COVER, IGNITION COIL
  • 19
    10-69002 SCREW, (#10-24 x 1.750), COVER TO COIL BRACKET
    SCREW, (#10-24 x 1.750), COVER TO COIL BRACKET
  • 19
    10-93460 SCREW, (.190-24 x 2.125), COVER TO COIL BRACKET
    SCREW, (.190-24 x 2.125), COVER TO COIL BRACKET
  • 20
    84-813715A1 LEAD ASSEMBLY, SPARK PLUG (HIGH TENSION)
    LEAD ASSEMBLY, SPARK PLUG (HIGH TENSION)
  • 21
    85-63709A1 BOOT/TERMINAL KIT
    FOR CANADA AND BELGIUM USE 33-68098 (CHAMPION #QL76V)
    BOOT/TERMINAL KIT
    FOR CANADA AND BELGIUM USE 33-68098 (CHAMPION #QL76V)
  • 22
    99213 SHEEL, SPARK PLUG BOOT
    SHEEL, SPARK PLUG BOOT
  • 23
    33-97180Q SPARK PLUG (NGH#BUHW)
    SPARK PLUG (NGH#BUHW)
  • 23
    33-14103550 SPARK PLUG
    CANADA/BELGIUM
    SPARK PLUG
    CANADA/BELGIUM
  • 24
    54-54457 J CLIP, LEAD WIRES
    J CLIP, LEAD WIRES
  • 25
    61990 TIE STRAP, (14.00 Inches)
    TIE STRAP, (14.00 Inches)
  • 26
    899883230 SWITCHBOX ASSEMBLY
    (BOLT/NUT CONNECTORS)
    SWITCHBOX ASSEMBLY
    (BOLT/NUT CONNECTORS)
  • 26
    339-7452A21 SWITCHBOX ASSEMBLY
    (BULLET CONNECTORS)
    SWITCHBOX ASSEMBLY
    (BULLET CONNECTORS)
  • 27
    10-23015 SCREW, SWITCH BOX TO BRACKET
    SCREW, SWITCH BOX TO BRACKET
  • 28
    13-69432 LOCKWASHER, External (#10), GROUND
    LOCKWASHER, External (#10), GROUND
  • 29
    11-45076 NUT, (#10-32) Brass, SWITCH BOX TERMINAL
    NUT, (#10-32) Brass, SWITCH BOX TERMINAL
  • 30
    84-94295A1 HARNESS ASSEMBLY, PRIMARY
    (BOLT/NUT CONNECTION)
    HARNESS ASSEMBLY, PRIMARY
    (BOLT/NUT CONNECTION)
