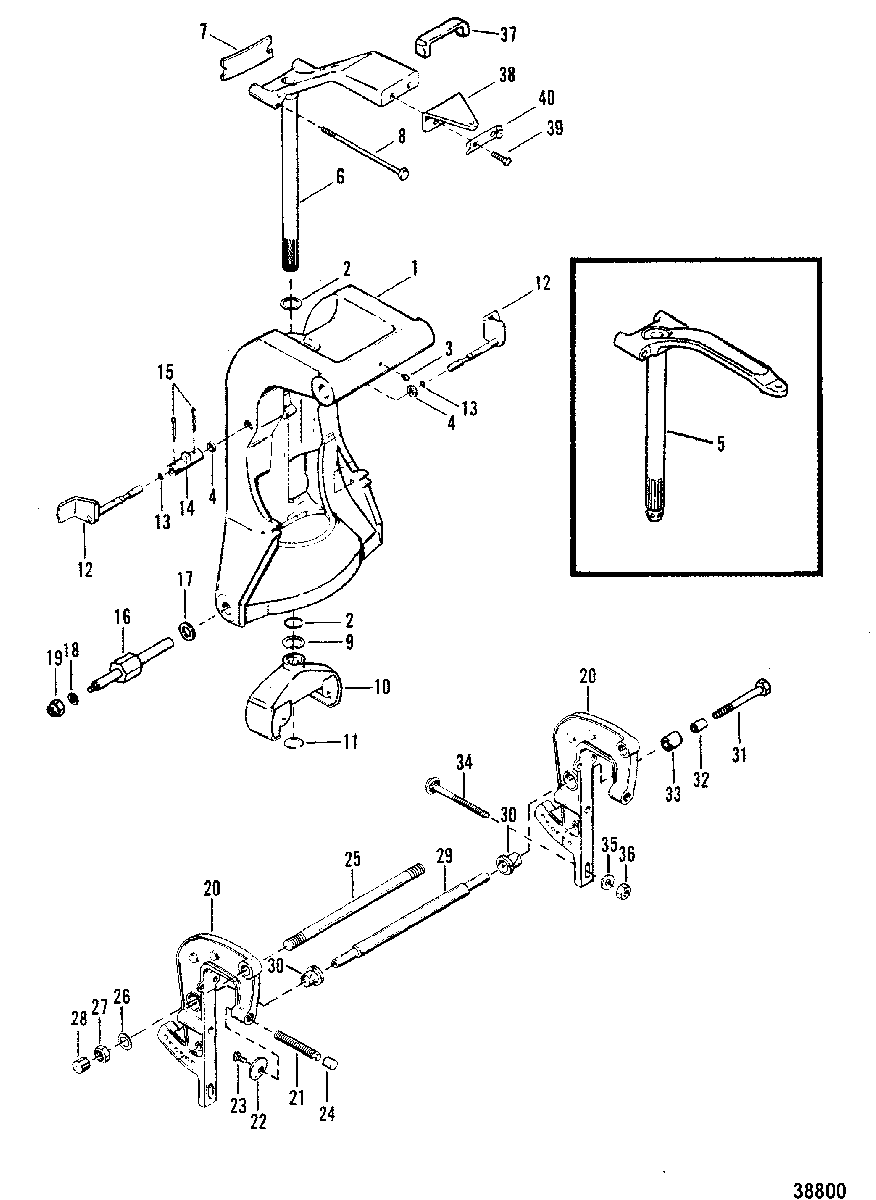

CLAMP AND SWIVEL BRACKET(POWER TRIM) для Mercury - 35 (2 CYL.) 9384476 & Up
-
№АртикулНазвание
-
11490-8599A6 SWIVEL BRACKETSWIVEL BRACKET
-
226-32911 SEAL, Oil, SWIVEL BRACKETSEAL, Oil, SWIVEL BRACKET
-
322-74036 FITTING, GreaseFITTING, Grease
-
426-22734 SEAL, Oil, SWIVEL BRACKETSEAL, Oil, SWIVEL BRACKET
-
569540A4 SWIVEL PIN ASSEMBLY (EARLY STYLE)SWIVEL PIN ASSEMBLY (EARLY STYLE)
-
688798A24 SWIVEL PIN ASSEMBLY (LATER STYLE)SWIVEL PIN ASSEMBLY (LATER STYLE)
-
730711 BUMPER, STEERING ARMBUMPER, STEERING ARM
-
810-66897 BOLT, (.437-20 x 5.250)BOLT, (.437-20 x 5.250)
-
912-25176 WASHER (.060)WASHER (.060)
-
1077416T1 YOKE, BottomYOKE, Bottom
-
1153-77415 RETAINING RING, BOTTOM YOKERETAINING RING, BOTTOM YOKE
-
1289105 TILT LOCK, STARBOARD/PORTTILT LOCK, STARBOARD/PORT
-
1325-627021 O-RING, (.301 x .070)O-RING, (.301 x .070)
-
1479659 COUPLING, TILT LOCKCOUPLING, TILT LOCK
-
1518-47959 COTTER PIN, TILT LOCK TUBECOTTER PIN, TILT LOCK TUBE
-
1617-62887 PIN, TRIM CYLINDERS TO SWIVEL BRACKETPIN, TRIM CYLINDERS TO SWIVEL BRACKET
-
1712-840400 WASHER, (1.50 x .766 x .125), TRIM CYLINDER PINWASHER, (1.50 x .766 x .125), TRIM CYLINDER PIN
-
1812-54012 WASHER, (.530 x .870 x .105) Stainless Steel, TRIM CYLINDER PINWASHER, (.530 x .870 x .105) Stainless Steel, TRIM CYLINDER PIN
-
1911-826709117 NUT, (.500-20), TRIM CYLINDER PINNUT, (.500-20), TRIM CYLINDER PIN
-
201440-8394A1 CLAMP BRACKET ASSEMBLYCLAMP BRACKET ASSEMBLY
-
2110-78492A1 THUMB SCREW ASSEMBLYTHUMB SCREW ASSEMBLY
-
2212-78493 WASHER, THUMB SCREWWASHER, THUMB SCREW
-
2310-78495 SCREW, WASHER TO THUMB SCREWSCREW, WASHER TO THUMB SCREW
-
2475043 CAP, THUMB SCREWCAP, THUMB SCREW
-
258M0041936 TILT TUBETILT TUBE
-
2612-52864 WASHER, TILT TUBEWASHER, TILT TUBE
-
2711-858869 NUT, (.875-14), TILT TUBENUT, (.875-14), TILT TUBE
-
2853078 CAP, PLASTIC - TILT TUBECAP, PLASTIC - TILT TUBE
-
2955-28416 PIN, UPPERPIN, UPPER
-
3023-73203 BUSHING, CLAMP BRACKETBUSHING, CLAMP BRACKET
-
3110-62882 SCREW, (.500-20 x 3.250), BRACKET TO UPPER PINSCREW, (.500-20 x 3.250), BRACKET TO UPPER PIN
-
3223-62885 SPACER, MOUNTING BRACKET SCREW
(1/2"I.D)SPACER, MOUNTING BRACKET SCREW
(1/2"I.D) -
3223-89952 SPACER, MOUNTING BRACKET SCREW
(1/3"I.D)SPACER, MOUNTING BRACKET SCREW
(1/3"I.D) -
3323-62884 SPACER, MOUNTING BRACKET SCREW
(3/4"I.D)SPACER, MOUNTING BRACKET SCREW
(3/4"I.D) -
3410-68298 BOLT, (.375-16 x 3.250)BOLT, (.375-16 x 3.250)
-
3512-46765 WASHER, CLAMP BRACKET BOLTWASHER, CLAMP BRACKET BOLT
-
3410-89673 SCREW, (.375-16 x 5.00)SCREW, (.375-16 x 5.00)
-
3512-28420 WASHER, (1-1/ 4 x 25/64 x .125 SS), CLAMP BRACKET BOLTWASHER, (1-1/ 4 x 25/64 x .125 SS), CLAMP BRACKET BOLT
-
3611-82671112 NUT, CLAMP BRACKET BOLTNUT, CLAMP BRACKET BOLT
-
3762297 BUMPER, STEERING ARM
W/O TILLER HANDLEBUMPER, STEERING ARM
W/O TILLER HANDLE -
3876535T BRACKET, RIDE-GUIDE ATTACHING
W/O TILLER HANDLEBRACKET, RIDE-GUIDE ATTACHING
W/O TILLER HANDLE -
3910-34352 SCREW, (.375-24 x .875)
W/O TILLER HANDLESCREW, (.375-24 x .875)
W/O TILLER HANDLE -
4076533 STRAP, BRACKET SCREW
W/O TILLER HANDLESTRAP, BRACKET SCREW
W/O TILLER HANDLE -
-27-78028A78 GASKET SETGASKET SET
