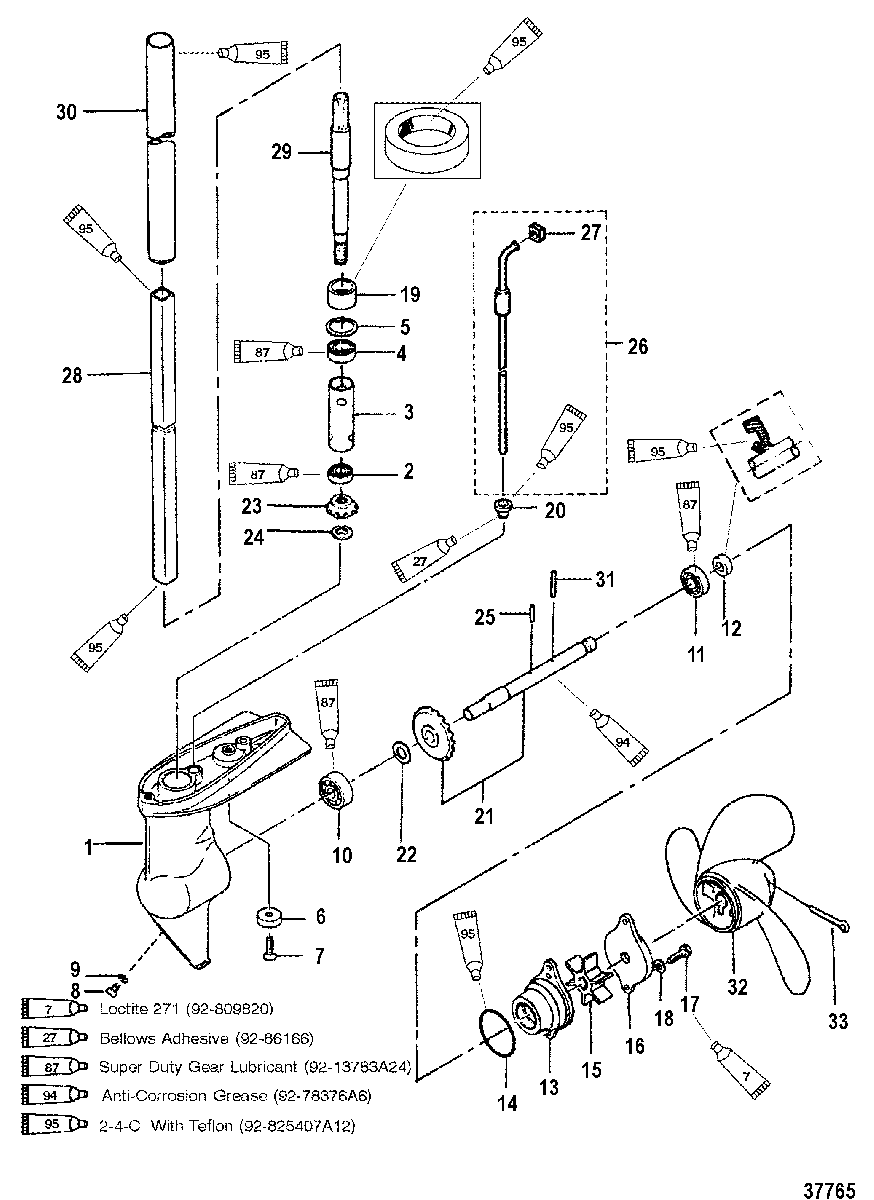

GEAR HOUSING ASSEMBLY(NON-SHIFT) для Mercury - 3.3 0D901217 THRU 0G710612

  • №
    Артикул
    Название
  • -
    1668-825122A2 GEAR HOUSING ASSEMBLY, Complete
    (BLACK)
    GEAR HOUSING ASSEMBLY, Complete
    (BLACK)
  • -
    1668-825123A3 GEAR HOUSING ASSEMBLY
    (GRAY)
    GEAR HOUSING ASSEMBLY
    (GRAY)
  • 1
    1668-825122T1 GEAR HOUSING ASSEMBLY
    (BLACK)
    GEAR HOUSING ASSEMBLY
    (BLACK)
  • 1
    1668-825123A1 GEAR HOUSING ASSEMBLY
    (GRAY)
    GEAR HOUSING ASSEMBLY
    (GRAY)
  • 2
    30-95342 BEARING, Ball (LOWER)
    BEARING, Ball (LOWER)
  • 3
    23-95343 SPACER
    SPACER
  • 4
    30-95344 BEARING, Ball (UPPER)
    BEARING, Ball (UPPER)
  • 5
    53-95345 RING, Snap
    RING, Snap
  • 6
    97-823913Q ANODE
    ANODE
  • 7
    10-16832 BOLT, (M6 x 16)
    BOLT, (M6 x 16)
  • 8
    22-953683 SCREW, Drain
    SCREW, Drain
  • 9
    8M0082880 GASKET
    GASKET
  • 10
    30-95347 BEARING
    BEARING
  • 11
    30-95344 BEARING, Ball
    BEARING, Ball
  • 12
    26-95348 SEAL, Oil
    SEAL, Oil
  • 13
    46-952871 PUMP, Water
    (BLACK)
    PUMP, Water
    (BLACK)
  • 13
    46-8150782 PUMP, Water
    (GRAY)
    PUMP, Water
    (GRAY)
  • 14
    25-95288 O-RING
    O-RING
  • 15
    47-952892 IMPELLER
    IMPELLER
  • 16
    825114 COVER
    (BLACK)
    COVER
    (BLACK)
  • 16
    825115 COVER
    (GRAY)
    COVER
    (GRAY)
  • 17
    10-16705 BOLT
    BOLT
  • 17
    10-167051 BOLT, (M6 x 20)
    BOLT, (M6 x 20)
  • 18
    12-16826 WASHER, Stainless Steel
    WASHER, Stainless Steel
  • 19
    26-95350 SEAL, Oil
    SEAL, Oil
  • 20
    23-95361 BUSHING (LOWER)
    BUSHING (LOWER)
  • 21
    44-95291A1 PROPELLER SHAFT (WITH BEVEL GEAR)
    PROPELLER SHAFT (WITH BEVEL GEAR)
  • 22
    15-811647A1 SHIM
    SHIM
  • 23
    43-95293 GEAR, Pinion
    GEAR, Pinion
  • 24
    53-815066 RING, Snap
    RING, Snap
  • 25
    28-95371 KEY
    KEY
  • 26
    32-95359 TUBE ASSEMBLY, Water
    (SHORT)
    TUBE ASSEMBLY, Water
    (SHORT)
  • 26
    32-953593 TUBE ASSEMBLY, Water
    (LONG)
    TUBE ASSEMBLY, Water
    (LONG)
  • 27
    25-953601 GROMMET (UPPER)
    GROMMET (UPPER)
  • 28
    45-95290 DRIVESHAFT
    (UPPER) (SHORT)
    DRIVESHAFT
    (UPPER) (SHORT)
  • 28
    45-952903 DRIVESHAFT
    (UPPER) (LONG)
    DRIVESHAFT
    (UPPER) (LONG)
  • 29
    45-95369 DRIVESHAFT
    (LOWER)
    DRIVESHAFT
    (LOWER)
  • 30
    95277 PIPE
    (SHORT)
    PIPE
    (SHORT)
  • 30
    952772 PIPE
    (LONG)
    PIPE
    (LONG)
  • 31
    17-815111Q02 SHEAR PIN, Stainless Steel
    (ALUMINUM PROP)
    SHEAR PIN, Stainless Steel
    (ALUMINUM PROP)
  • 31
    17-815111Q02 PIN, Brass
    (PLASTIC PROP)
    PIN, Brass
    (PLASTIC PROP)
  • 32
    48-815083A01 PROPELLER, (3 x 7.4 x 5.7)(Plastic)
    (PLASTIC)
    PROPELLER, (3 x 7.4 x 5.7)(Plastic)
    (PLASTIC)
  • 32
    48-815084A01 PROPELLER, Aluminum (3 x 7.4 x 6)
    (STANDARD)
    PROPELLER, Aluminum (3 x 7.4 x 6)
    (STANDARD)
  • 32
    48-815084A02 PROPELLER, Aluminum (3 x 7.4 x 7)
    (WITH RUBBER HUB)
    PROPELLER, Aluminum (3 x 7.4 x 7)
    (WITH RUBBER HUB)
  • 33
    18-95295 COTTER PIN
    COTTER PIN
  • -
    27-8M0082878 GASKET SET, Lower Unit
    GASKET SET, Lower Unit
