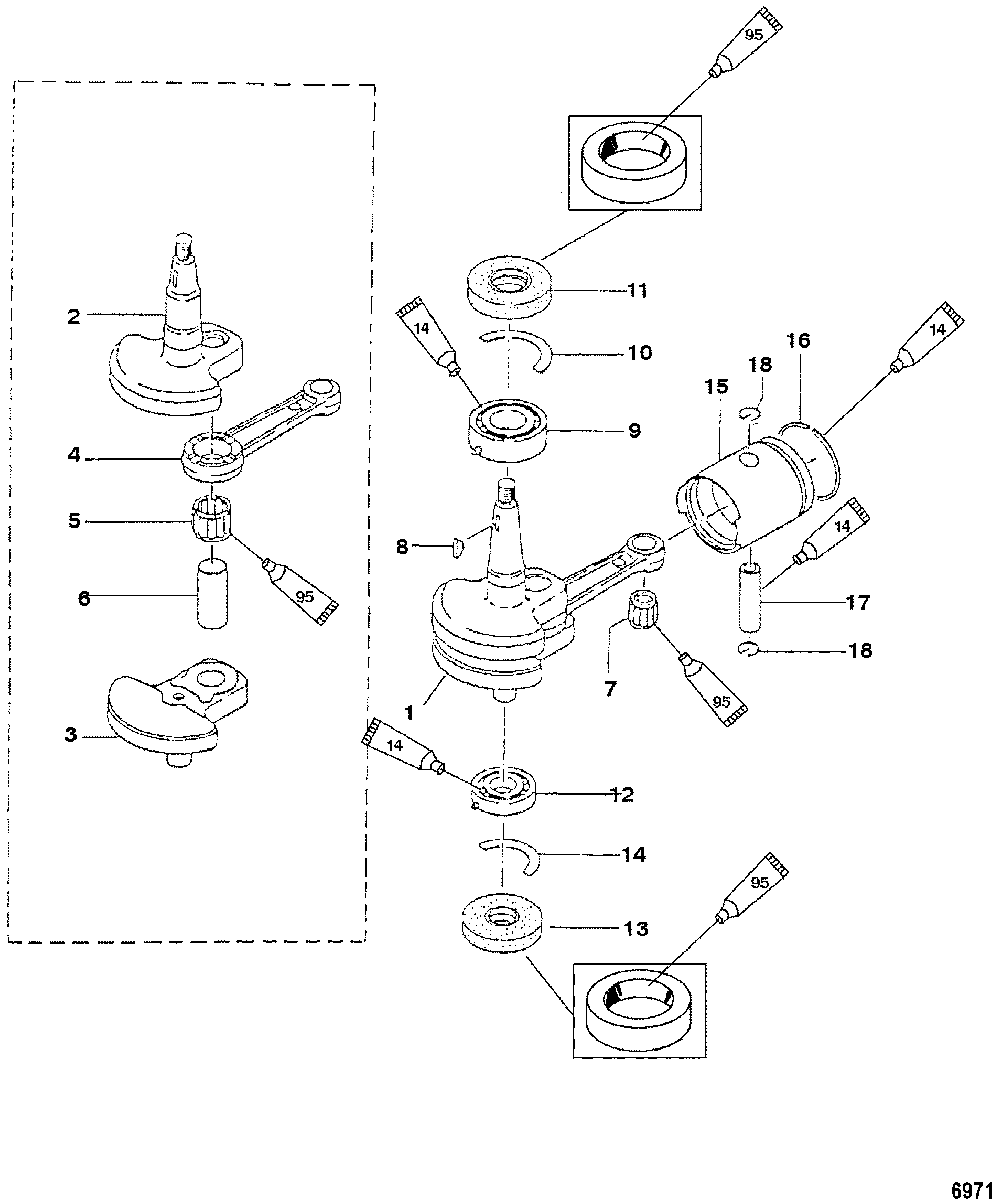

CRANKSHAFT/PISTON для Mercury - 3.3 0D901217 THRU 0G710612

  • №
    Артикул
    Название
  • 1
    463-879147T16 CRANKSHAFT ASSEMBLY
    (NON-SHIFT)
    CRANKSHAFT ASSEMBLY
    (NON-SHIFT)
  • 1
    474-822892T02 CRANKSHAFT ASSEMBLY
    (SIDE SHIFT)
    CRANKSHAFT ASSEMBLY
    (SIDE SHIFT)
  • 2
    463-813049 CRANKSHAFT
    CRANKSHAFT
  • 3
    463-813268 CRANKSHAFT
    (NON-SHIFT)
    CRANKSHAFT
    (NON-SHIFT)
  • 3
    463-822893 CRANKSHAFT
    (SIDE SHIFT)
    CRANKSHAFT
    (SIDE SHIFT)
  • 4
    629-813269 CONNECTING ROD
    CONNECTING ROD
  • 5
    31-813270 BEARING
    BEARING
  • 6
    813271001 PIN, Crank
    PIN, Crank
  • 7
    31-95227 BEARING, Roller
    BEARING, Roller
  • 8
    28-95229 KEY
    KEY
  • 9
    30-898101936 BEARING, Ball
    BEARING, Ball
  • 10
    95230 PLATE
    PLATE
  • 11
    26-95232 SEAL, Oil
    SEAL, Oil
  • 12
    30-822894 BEARING, Ball
    SIDE SHIFT
    BEARING, Ball
    SIDE SHIFT
  • 13
    822896 THRUST PLATE, Lower
    SIDE SHIFT
    THRUST PLATE, Lower
    SIDE SHIFT
  • 14
    26-822897 SEAL, Oil
    SIDE SHIFT
    SEAL, Oil
    SIDE SHIFT
  • 12
    30-95307 BEARING, Ball
    NON-SHIFT
    BEARING, Ball
    NON-SHIFT
  • 13
    95231 PLATE
    NON-SHIFT
    PLATE
    NON-SHIFT
  • 14
    26-95308 SEAL, Oil
    NON-SHIFT
    SEAL, Oil
    NON-SHIFT
  • 15
    779-8M0103754 PISTON
    (STANDARD)
    PISTON
    (STANDARD)
  • 15
    779-9183 PISTON
    (.5MM O.S.)
    PISTON
    (.5MM O.S.)
  • 16
    39-95234 RING, Piston
    (STANDARD)
    RING, Piston
    (STANDARD)
  • 16
    39-95309 RING, Piston
    (.5MM O.S.)
    RING, Piston
    (.5MM O.S.)
  • 17
    898101917 PIN, Piston
    PIN, Piston
  • 18
    53-952366 CLIP
    SN# USA-0G574242/BEL-9973100 & Up
    CLIP
    SN# USA-0G574242/BEL-9973100 & Up
  • 18
    53-952366 CLIP
    SN# USA-0G574241/BEL-9973099 & Below
    CLIP
    SN# USA-0G574241/BEL-9973099 & Below
  • -
    27-815076A04 GASKET SET, Powerhead
    (SIDE SHIFT)
    GASKET SET, Powerhead
    (SIDE SHIFT)
  • -
    27-898101928 GASKET SET, Powerhead
    (NON SHIFT)
    GASKET SET, Powerhead
    (NON SHIFT)
