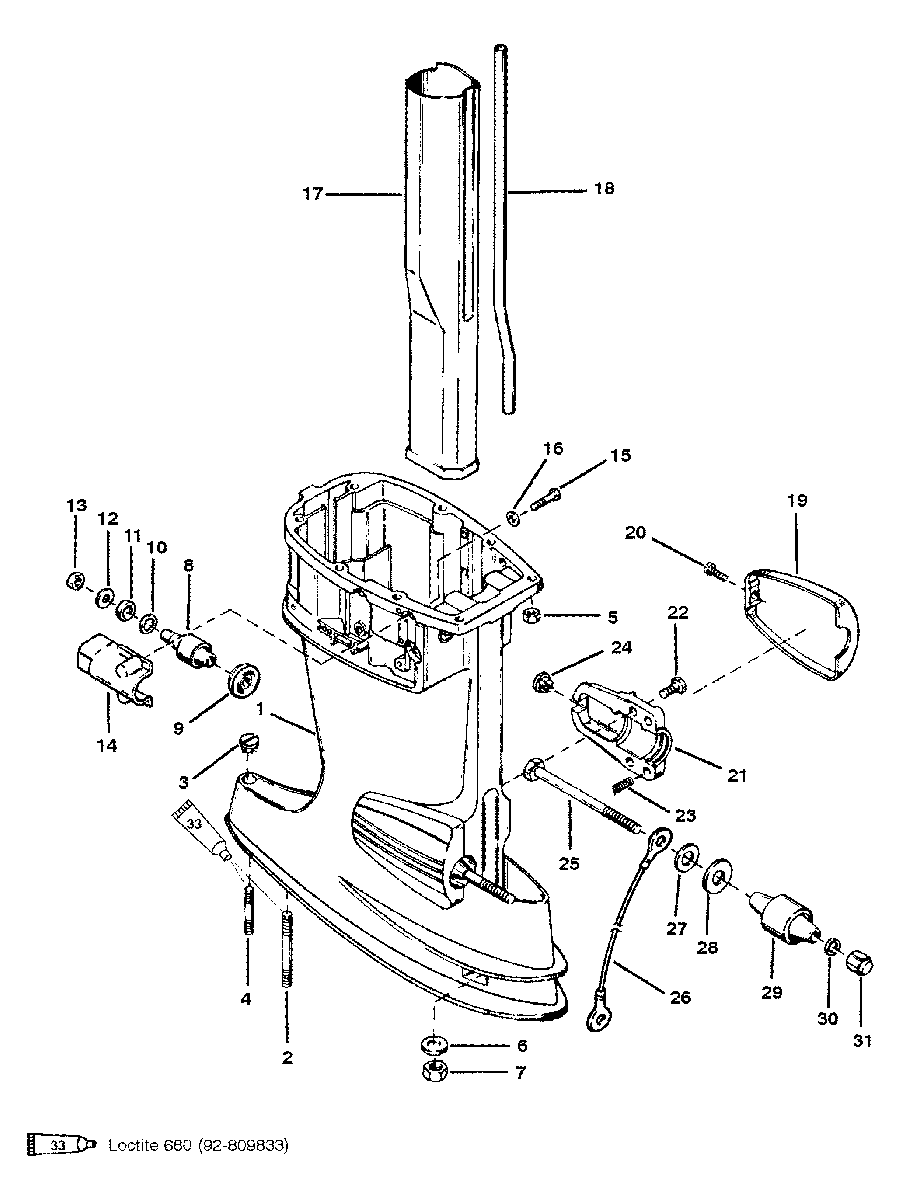

DRIVE SHAFT HOUSING ASSEMBLY для Mercury - 30 JET 0C159200 THRU 0G589999

  • №
    Артикул
    Название
  • 1
    1592-8188A8 DRIVE SHAFT HOUSING
    (BLACK) (SHORT)
    DRIVE SHAFT HOUSING
    (BLACK) (SHORT)
  • 1
    1592-8188A9 DRIVE SHAFT HOUSING
    (GRAY) (SHORT)
    DRIVE SHAFT HOUSING
    (GRAY) (SHORT)
  • 1
    1593-8189A12 DRIVE SHAFT HOUSING
    (BLACK) (LONG)
    DRIVE SHAFT HOUSING
    (BLACK) (LONG)
  • 1
    1593-8189A13 DRIVE SHAFT HOUSING
    (GRAY) (LONG)
    DRIVE SHAFT HOUSING
    (GRAY) (LONG)
  • 1
    1593-8189A14 DRIVE SHAFT HOUSING
    (TRACKER GRAPHITE GRAY) (LONG)
    DRIVE SHAFT HOUSING
    (TRACKER GRAPHITE GRAY) (LONG)
  • 1
    1592-8188A11 DRIVE SHAFT HOUSING
    (BLACK-JET 30)
    DRIVE SHAFT HOUSING
    (BLACK-JET 30)
  • 1
    1592-8188A12 DRIVE SHAFT HOUSING
    (GRAY-JET 30)
    DRIVE SHAFT HOUSING
    (GRAY-JET 30)
  • 2
    16-57935 STUD (3 IN.) (NOT USED WITH JET)
    STUD (3 IN.) (NOT USED WITH JET)
  • 3
    19-64649 PLUG-PLASTIC-TRIM TAB SCREW HOLE
    PLUG-PLASTIC-TRIM TAB SCREW HOLE
  • 4
    16-8M0022145 STUD (1-3/4 IN.) (NOT USED WITH JET)
    STUD (1-3/4 IN.) (NOT USED WITH JET)
  • 5
    11-64809 NUT (5/16 IN.)
    NUT (5/16 IN.)
  • 6
    12-65791 WASHER (7/16 IN.)
    WASHER (7/16 IN.)
  • 7
    11-34933 NUT (7/16 IN.)
    NUT (7/16 IN.)
  • 8
    923373 MOUNT
    MOUNT
  • 9
    96401 SEAL
    SEAL
  • 10
    12-27727 WASHER (37/64 I.D.)
    WASHER (37/64 I.D.)
  • 11
    12-66966 RUBBER WASHER
    RUBBER WASHER
  • 12
    12-30514 WASHER
    WASHER
  • 13
    11-34933 NUT
    NUT
  • 14
    87883 COVER
    COVER
  • 15
    10-76630 SCREW
    SCREW
  • 16
    12-29245 WASHER
    WASHER
  • 17
    695431 EXHAUST TUBE
    (SHORT)
    EXHAUST TUBE
    (SHORT)
  • 18
    32-37727 WATER TUBE
    (SHORT)
    WATER TUBE
    (SHORT)
  • 17
    695441 EXHAUST TUBE
    (LONG)
    EXHAUST TUBE
    (LONG)
  • 18
    32-45679 WATER TUBE
    (LONG)
    WATER TUBE
    (LONG)
  • 19
    35474T COVER
    (BLACK)
    COVER
    (BLACK)
  • 19
    35474F2 COVER
    (GRAY)
    COVER
    (GRAY)
  • 19
    35474F3 COVER
    (TRACKER GRAPHITE GRAY)
    COVER
    (TRACKER GRAPHITE GRAY)
  • 20
    10-87884 SCREW
    SCREW
  • 21
    69592F1 CLAMP
    CLAMP
  • 22
    10-29256 SCREW
    SCREW
  • 23
    24-35522 SPRING
    SPRING
  • 24
    11-35521 NUT
    NUT
  • 25
    10-75284 SCREW
    SCREW
  • 26
    88238A10 GROUND WIRE
    GROUND WIRE
  • 27
    12-28051 WASHER USE WHERE APPLICABLE
    WASHER USE WHERE APPLICABLE
  • 28
    12-28053 RUBBER WASHER
    RUBBER WASHER
  • 29
    75304T1 LOWER MOUNT
    LOWER MOUNT
  • 30
    12-30119 WASHER
    WASHER
  • 31
    11-25096 NUT
    NUT
