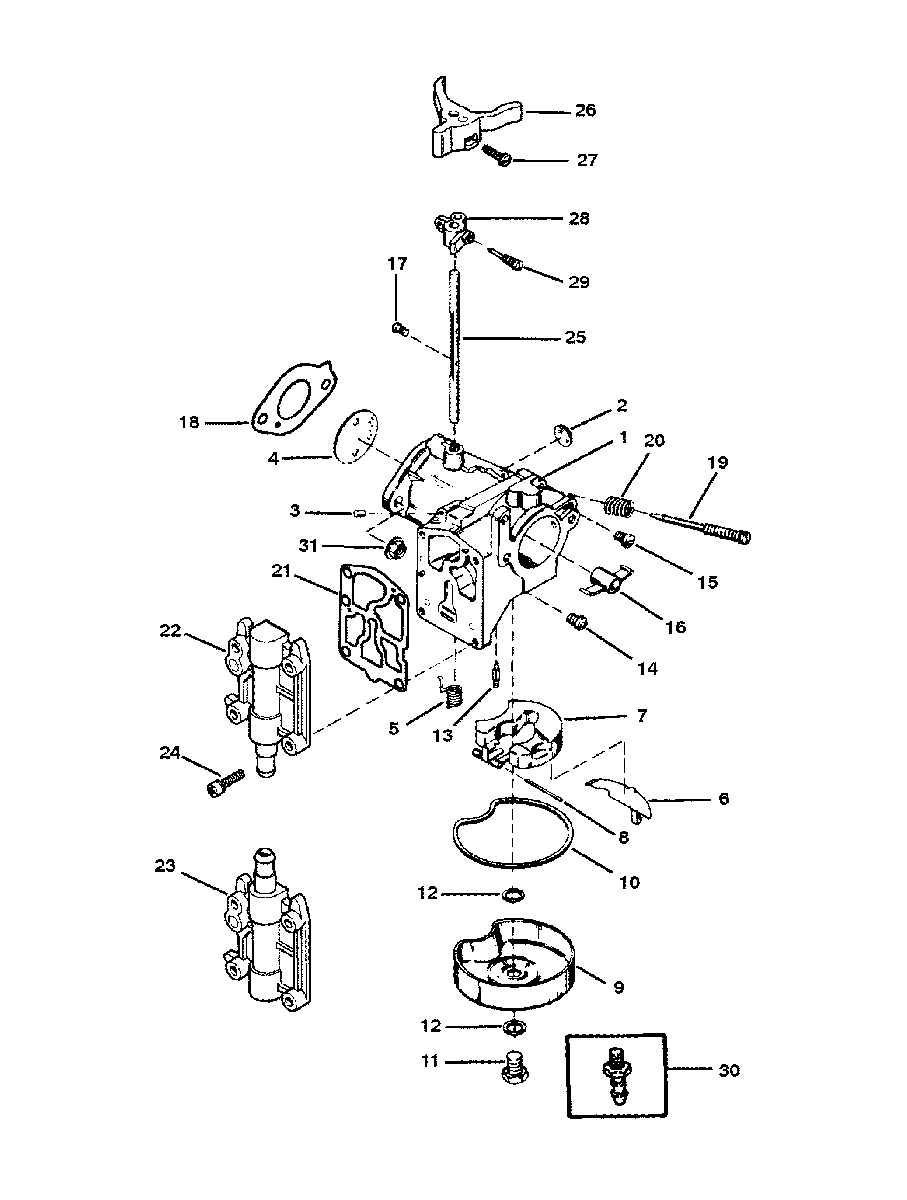

CARBURETOR ASSEMBLY для Mercury - 30 JET 0C159200 THRU 0G589999

  • №
    Артикул
    Название
  • 1
    3330-830281A3 CARBURETOR (UPPER)
    (WMA-10)
    CARBURETOR (UPPER)
    (WMA-10)
  • 1
    3330-830281A4 CARBURETOR (LOWER)
    (WMA-10)
    CARBURETOR (LOWER)
    (WMA-10)
  • 1
    3330-830281A3 CARBURETOR (UPPER)
    (WMA-13)
    CARBURETOR (UPPER)
    (WMA-13)
  • 1
    3330-830281A4 CARBURETOR (LOWER)
    (WMA-13)
    CARBURETOR (LOWER)
    (WMA-13)
  • 2
    90-8M0143356 WELCH PLUG-BODY CHANNEL (LARGE)
    WELCH PLUG-BODY CHANNEL (LARGE)
  • 3
    90-8M0143356 PLUG-BODY CHANNEL
    PLUG-BODY CHANNEL
  • 4
    1395-9649 THROTTLE VALVE
    THROTTLE VALVE
  • 5
    90-8M0143356 SPRING-RETURN-THROTTLE SHAFT
    SPRING-RETURN-THROTTLE SHAFT
  • 6
    814483 BAFFLE-FUEL BOWL
    BAFFLE-FUEL BOWL
  • 7
    1395-9293 FLOAT
    (WMA-7B)
    FLOAT
    (WMA-7B)
  • 7
    1395-823620 FLOAT
    (WMA-9/10/13)
    FLOAT
    (WMA-9/10/13)
  • 8
    90-8M0143356 PIN-FLOAT RETAINING
    PIN-FLOAT RETAINING
  • 9
    1399-5127 FUEL BOWL
    (WMA-7B)
    FUEL BOWL
    (WMA-7B)
  • 9
    1395-823619 FUEL BOWL
    (WMA-9/10/13)
    FUEL BOWL
    (WMA-9/10/13)
  • 10
    90-8M0143356 GASKET-FUEL BOWI
    GASKET-FUEL BOWI
  • 11
    1395-9652 SCREW (LOWER CARBURETOR)
    (WMA-7B)
    SCREW (LOWER CARBURETOR)
    (WMA-7B)
  • 11
    1395-823622 JET ASSEMBLY
    (LOWER-WMA-9/10/13)
    JET ASSEMBLY
    (LOWER-WMA-9/10/13)
  • 12
    90-8M0143356 GASKET-FUEL BOWL SCREW
    GASKET-FUEL BOWL SCREW
  • 13
    1395-879194011 INLET NEEDLE AND SPRING
    INLET NEEDLE AND SPRING
  • 14
    1399-1457 JET-MAIN FUEL (.057)
    (WMA-7B)
    JET-MAIN FUEL (.057)
    (WMA-7B)
  • 15
    1395-7335 JET-ECONOMIZER (.098)
    JET-ECONOMIZER (.098)
  • 16
    64677 VENTURI
    VENTURI
  • 17
    90-8M0143356 SCREW-THROTTLE SHUTTER TO THROTTLE SHAFT
    SCREW-THROTTLE SHUTTER TO THROTTLE SHAFT
  • 18
    27-757911 GASKET-CARBURETOR FLANGE
    GASKET-CARBURETOR FLANGE
  • 19
    90-8M0143356 SCREW-IDLE MIXTURE
    SCREW-IDLE MIXTURE
  • 20
    90-8M0143356 SPRING-IDLE MIXTURE SCREW
    SPRING-IDLE MIXTURE SCREW
  • 21
    90-8M0143356 GASKET-FUEL PUMP
    (WMA-7B/9/10)
    GASKET-FUEL PUMP
    (WMA-7B/9/10)
  • 22
    814482 COVER-PLATE (UPPER CARBURETOR)
    COVER-PLATE (UPPER CARBURETOR)
  • 23
    1395-9654 COVER-PLATE (LOWER CARBURETOR)
    COVER-PLATE (LOWER CARBURETOR)
  • 24
    1395-808612 SCREW-STRAINER BODY TO CARBURETOR
    SCREW-STRAINER BODY TO CARBURETOR
  • 25
    1395-9020 THROTTLE SHAFT
    (UPPER CARBURETOR)
    THROTTLE SHAFT
    (UPPER CARBURETOR)
  • 25
    1395-9656 THROTTLE SHAFT
    (LOWER CARBURETOR)
    THROTTLE SHAFT
    (LOWER CARBURETOR)
  • 26
    92880 THROTTLE LEVER (UPPER CARBURETOR)
    THROTTLE LEVER (UPPER CARBURETOR)
  • 27
    1395-6027 SCREW-THROTTLE LEVER (UPPER CARBURETOR)
    SCREW-THROTTLE LEVER (UPPER CARBURETOR)
  • 28
    8146791 THROTTLE LEVER (LOWER CARBURETOR)
    (WMA13)
    THROTTLE LEVER (LOWER CARBURETOR)
    (WMA13)
  • 29
    1395-6027 SCREW-THROTTLE LEVER (LOWER CARB)
    SCREW-THROTTLE LEVER (LOWER CARB)
  • 30
    22-8148651 FITTING-FUEL BOWL (UPPER CARB)
    (WMA-7-1)
    FITTING-FUEL BOWL (UPPER CARB)
    (WMA-7-1)
  • 30
    22-810769 FITTING-FUEL BOWL (UPPER CARB)
    (WMA-7-1B)
    FITTING-FUEL BOWL (UPPER CARB)
    (WMA-7-1B)
  • 30
    1395-823621 JET ASSEMBLY
    (UPPER-WMA-9/10/13)
    JET ASSEMBLY
    (UPPER-WMA-9/10/13)
  • 31
    11-64809 NUT-CARBURETOR MOUNTING STUD
    NUT-CARBURETOR MOUNTING STUD
  • -
    422501 RESTRICTOR PLATE
    (RESTRICTED 40)
    RESTRICTOR PLATE
    (RESTRICTED 40)
  • -
    27-757911 GASKET
    (RESTRICTED 40)
    GASKET
    (RESTRICTED 40)
  • -
    1395-9650 CARB REPAIR PARTS KIT
    CARB REPAIR PARTS KIT
  • -
    1395-9651 CARB GASKET SET
    CARB GASKET SET
  • -
    27-85491A90 GASKET SET
    GASKET SET
  • -
    814278T93 POWERHEAD
    POWERHEAD
