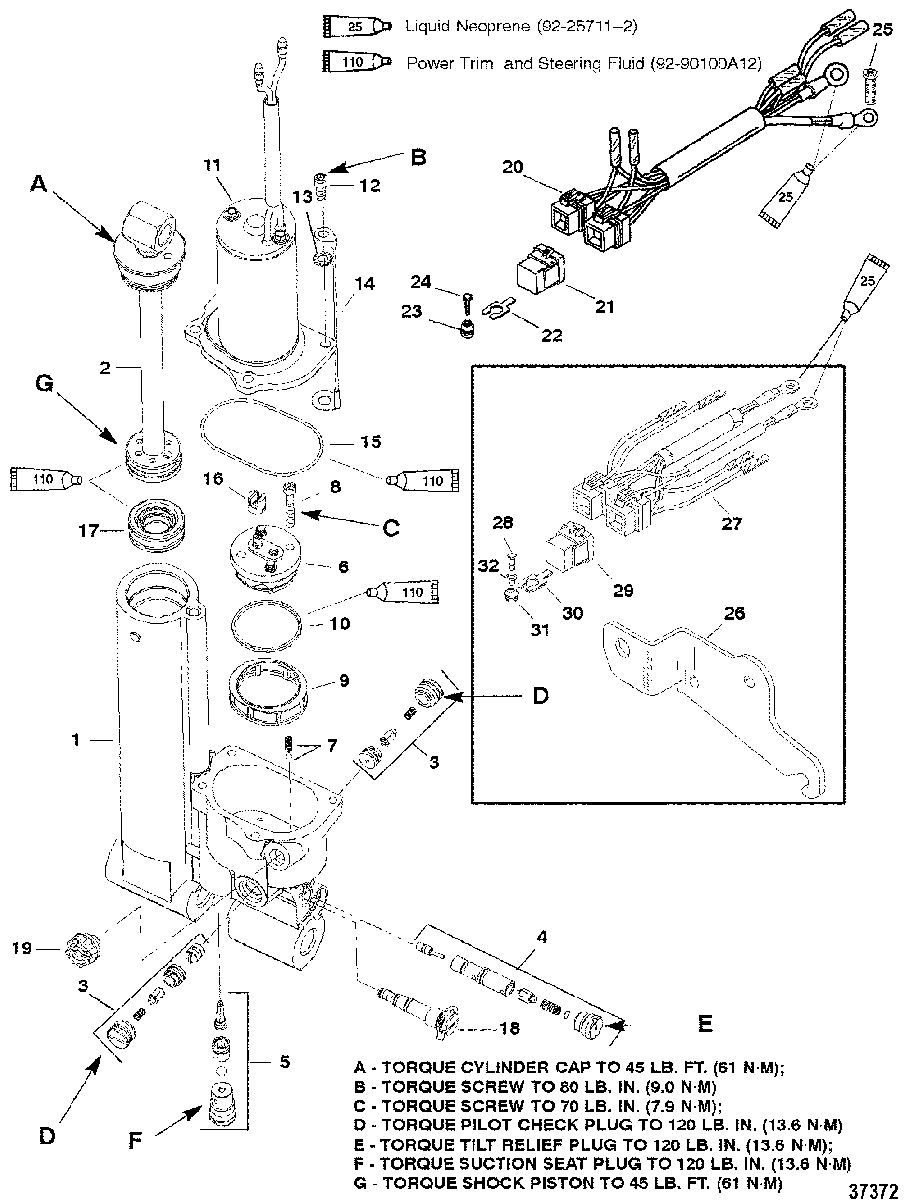

POWER TRIM для Mercury - 30 (2 CYL.) 9854537 THRU 0P016999

  • №
    Артикул
    Название
  • 1
    822344T14 POWER TRIM
    SN# USA 0G124404, BEL 9948794 & Below
    POWER TRIM
    SN# USA 0G124404, BEL 9948794 & Below
  • 1
    822344T14 POWER TRIM
    SN# USA 0G124405, BEL 9948795 & Up
    POWER TRIM
    SN# USA 0G124405, BEL 9948795 & Up
  • -
    25-827668A1 O-RING KIT
    O-RING KIT
  • 2
    893931A01 SHOCK ROD ASSEMBLY
    SHOCK ROD ASSEMBLY
  • 3
    827671A1 PILOT CHECK ASSEMBLY
    PILOT CHECK ASSEMBLY
  • 4
    827672A1 TILT RELIEF VALVE ASSEMBLY
    TILT RELIEF VALVE ASSEMBLY
  • 5
    827673A1 SEAT ASSEMBLY, Suction
    SEAT ASSEMBLY, Suction
  • 6
    827674A1 PUMP ASSEMBLY
    PUMP ASSEMBLY
  • 7
    NSS NOT SOLD SEPARATE, BALL AND SPRING
    NOT SOLD SEPARATE, BALL AND SPRING
  • 8
    NSS NOT SOLD SEPARATE, SCREW
    NOT SOLD SEPARATE, SCREW
  • 9
    NSS NOT SOLD SEPARATE, FILTER
    NOT SOLD SEPARATE, FILTER
  • 10
    NSS NOT SOLD SEPARATE, O-RING
    NOT SOLD SEPARATE, O-RING
  • 11
    827675A1 MOTOR ASSEMBLY
    MOTOR ASSEMBLY
  • 12
    NSS NOT SOLD SEPARATE, SCREW
    NOT SOLD SEPARATE, SCREW
  • 13
    NSS NOT SOLD SEPARATE, WASHER
    NOT SOLD SEPARATE, WASHER
  • 14
    88238A15 CABLE ASSEMBLY
    CABLE ASSEMBLY
  • 15
    NSS NOT SOLD SEPARATE, O-RING
    NOT SOLD SEPARATE, O-RING
  • 16
    NSS NOT SOLD SEPARATE, COUPLER
    NOT SOLD SEPARATE, COUPLER
  • 17
    827676 PISTON, Memory
    PISTON, Memory
  • 18
    893929A01 MANUAL RELEASE ASSEMBLY
    MANUAL RELEASE ASSEMBLY
  • 19
    19-811613 PLUG ASSEMBLY
    PLUG ASSEMBLY
  • -
    84-819514A57 HARNESS ASSEMBLY, Trim
    DESIGN I
    HARNESS ASSEMBLY, Trim
    DESIGN I
  • 20
    84-819514A58 HARNESS ASSEMBLY, Trim
    DESIGN I
    HARNESS ASSEMBLY, Trim
    DESIGN I
  • 21
    821509T01 RELAY
    DESIGN I
    RELAY
    DESIGN I
  • 22
    882751A1 BRACKET
    DESIGN I
    BRACKET
    DESIGN I
  • 23
    25-818967 GROMMET
    DESIGN I
    GROMMET
    DESIGN I
  • 24
    10-40011129 SCREW, (M6 x 25) Stainless Steel
    DESIGN I
    SCREW, (M6 x 25) Stainless Steel
    DESIGN I
  • 25
    10-878609 SCREW, (#10-16 x .600) (SELF-TAP)
    DESIGN I
    SCREW, (#10-16 x .600) (SELF-TAP)
    DESIGN I
  • 26
    830238T BRACKET
    DESIGN II
    BRACKET
    DESIGN II
  • 27
    84-826802A9 HARNESS ASSEMBLY, Trim
    DESIGN II
    HARNESS ASSEMBLY, Trim
    DESIGN II
  • 28
    10-82129125 SCREW, (M6 x 25 MM)
    DESIGN II
    SCREW, (M6 x 25 MM)
    DESIGN II
  • 29
    882751A1 RELAY ASSEMBLY
    DESIGN II
    RELAY ASSEMBLY
    DESIGN II
  • 30
    828102 BRACKET
    DESIGN II
    BRACKET
    DESIGN II
  • 31
    25-818967 GROMMET
    DESIGN II
    GROMMET
    DESIGN II
  • 32
    23-818968 BUSHING
    DESIGN II
    BUSHING
    DESIGN II
