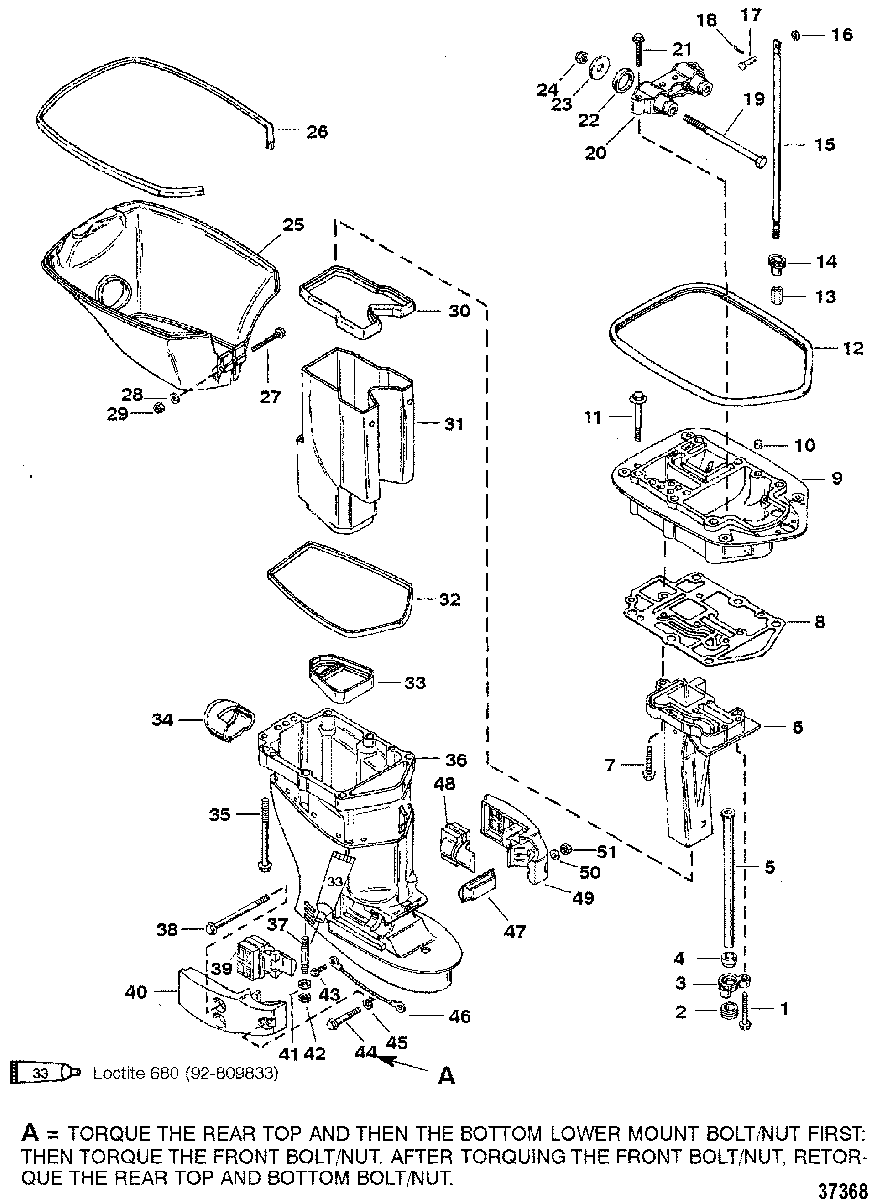

DRIVESHAFT HOUSING для Mercury - 30 (2 CYL.) 9854537 THRU 0P016999

  • №
    Артикул
    Название
  • 30
    8249423 SEAL
    SEAL
  • 31
    8M0036863 BUCKET, Exhaust
    BUCKET, Exhaust
  • 32
    8M0043170 BUMPER
    BUMPER
  • 33
    822395001 SEAL
    SEAL
  • 34
    822422001 SEAL, Idle Relief
    SEAL, Idle Relief
  • 35
    10-817430110 SCREW, (M10 x 110)
    SCREW, (M10 x 110)
  • 36
    3525-821841T7 HOUSING ASSEMBLY, Driveshaft
    (SHORT-BLACK)
    HOUSING ASSEMBLY, Driveshaft
    (SHORT-BLACK)
  • 36
    3525-821841T8 HOUSING ASSEMBLY, Driveshaft
    (SHORT-GRAY)
    HOUSING ASSEMBLY, Driveshaft
    (SHORT-GRAY)
  • 36
    3531-821447T10 HOUSING ASSEMBLY, Driveshaft
    (LONG-BLACK)
    HOUSING ASSEMBLY, Driveshaft
    (LONG-BLACK)
  • 36
    3531-821447T11 HOUSING ASSEMBLY, Driveshaft
    (LONG-GRAY)
    HOUSING ASSEMBLY, Driveshaft
    (LONG-GRAY)
  • 37
    16-823984 STUD, (M10 x 50)
    (SHORT/LONG)
    STUD, (M10 x 50)
    (SHORT/LONG)
  • 37
    16-824083 STUD, (M10 x 114)
    (X-LONG)
    STUD, (M10 x 114)
    (X-LONG)
  • 38
    10-824459120 SCREW, (M8 x 120) Stainless Steel
    SCREW, (M8 x 120) Stainless Steel
  • 39
    821781003 MOUNT (LOWER)
    MOUNT (LOWER)
  • 40
    821780T5 COVER, Mount
    (BLACK)
    COVER, Mount
    (BLACK)
  • 40
    821780T2 COVER, Mount
    (GRAY)
    COVER, Mount
    (GRAY)
  • 41
    12-856774 WASHER, (.406 x .750 x .104)
    WASHER, (.406 x .750 x .104)
  • 42
    11-40140 NUT, (M10)
    NUT, (M10)
  • 43
    10-878607 SCREW, (#10-16 x .380)
    SCREW, (#10-16 x .380)
  • 44
    10-82445965 SCREW, (M8 x 65) Stainless Steel
    SCREW, (M8 x 65) Stainless Steel
  • 45
    13-72521 LOCKWASHER, Internal Tooth
    LOCKWASHER, Internal Tooth
  • 46
    88238A11 CABLE ASSEMBLY
    CABLE ASSEMBLY
  • 47
    821782002 BUMPER (FRONT)
    BUMPER (FRONT)
  • 48
    821781003 MOUNT (LOWER)
    MOUNT (LOWER)
  • 49
    821780T5 COVER, Mount
    (BLACK)
    COVER, Mount
    (BLACK)
  • 49
    821780T2 COVER, Mount
    (GRAY)
    COVER, Mount
    (GRAY)
  • 50
    12-36001 WASHER
    WASHER
  • 51
    11-401378 NUT, (M8)
    NUT, (M8)
