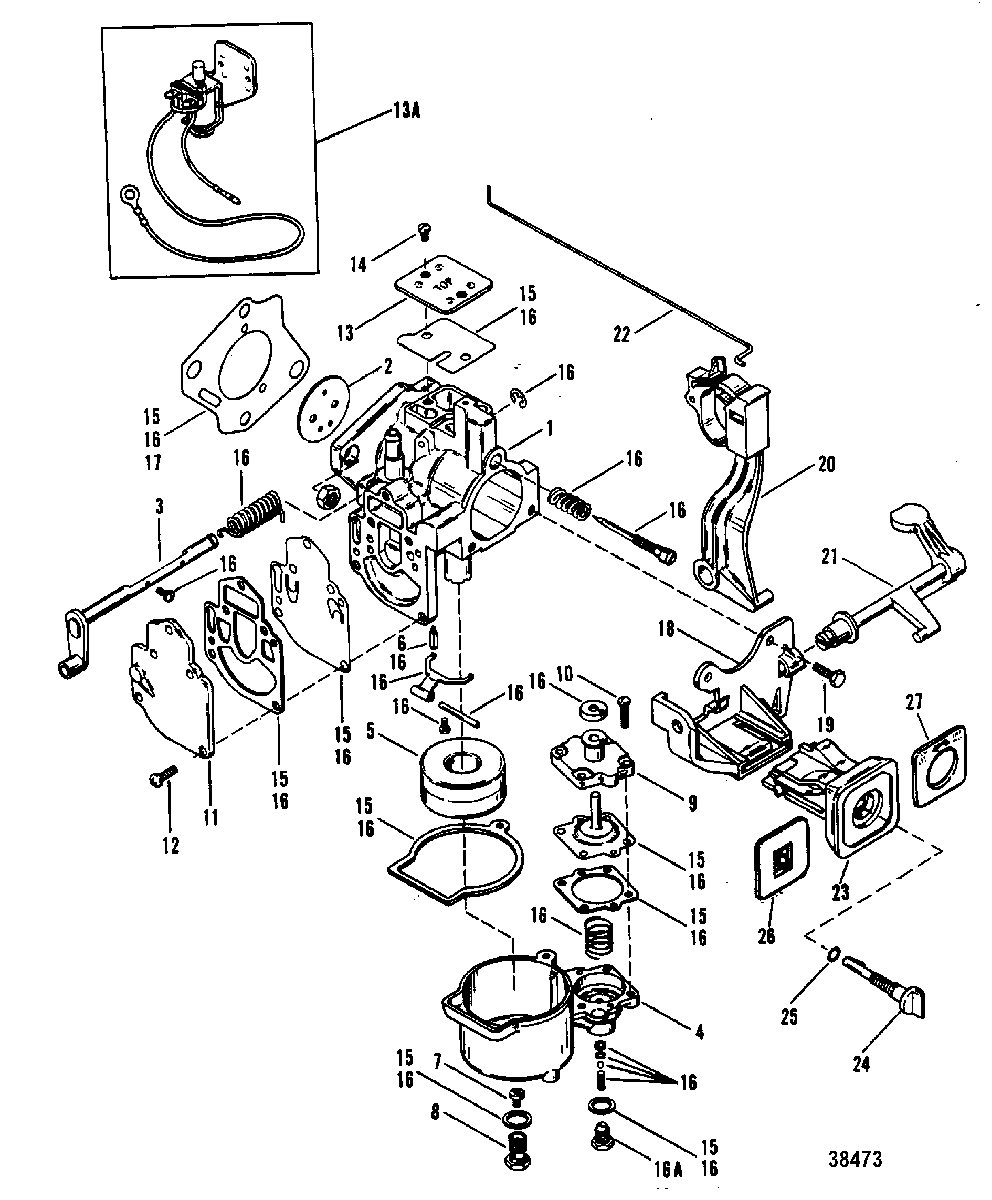

CARBURETOR(WMC-9/10/11/12/24/25/26/27) для Mercury - 25XD 9415101 THRU 9507380
-
№АртикулНазвание
-
11390-8888A16 CARBURETOR
(18/20-MANUAL-WMC-24)CARBURETOR
(18/20-MANUAL-WMC-24) -
11390-8888A16 CARBURETOR
(18/20-ELECTRIC-WMC-10)CARBURETOR
(18/20-ELECTRIC-WMC-10) -
11390-8889A20 CARBURETOR
(25-MANUAL-WMC-11)CARBURETOR
(25-MANUAL-WMC-11) -
11390-8889A20 CARBURETOR
(25-MANUAL-WMC-26)CARBURETOR
(25-MANUAL-WMC-26) -
11390-8677A11 CARBURETOR
(25-ELECTRIC-WMC-12)CARBURETOR
(25-ELECTRIC-WMC-12) -
11390-8677A11 CARBURETOR
(25-ELECTRIC-WMC-27)CARBURETOR
(25-ELECTRIC-WMC-27) -
21395-9168 VALVE, Throttle
(18/20-WMC-9/10)VALVE, Throttle
(18/20-WMC-9/10) -
21395-9640 VALVE, Throttle
(18/20-WMC-24/25)VALVE, Throttle
(18/20-WMC-24/25) -
21395-9180 VALVE, Throttle
(25-WMC-11/12)VALVE, Throttle
(25-WMC-11/12) -
21395-9646 VALVE, Throttle
(25-WMC-26/27)VALVE, Throttle
(25-WMC-26/27) -
31395-9695 SHAFT, ThrottleSHAFT, Throttle
-
41395-9164 BOWL, FuelBOWL, Fuel
-
51395-91691 FLOATFLOAT
-
61395-803861 VALVE, INLET NEEDLEVALVE, INLET NEEDLE
-
71399-5317 JET, (.046), MAIN FUEL
(18/20)JET, (.046), MAIN FUEL
(18/20) -
71395-6201 JET, (.080)
(25)JET, (.080)
(25) -
81395-9171 PLUG, JET RETAINERPLUG, JET RETAINER
-
9813618 COVER, DIPHRAGMCOVER, DIPHRAGM
-
101395-9697 SCREW, DIAPRAGM COVERSCREW, DIAPRAGM COVER
-
111395-9702 COVER, FUEL PUMPCOVER, FUEL PUMP
-
121395-9173 SCREW, FUEL PUMP COVERSCREW, FUEL PUMP COVER
-
131395-9177 PLATE, COVER (MANUAL)PLATE, COVER (MANUAL)
-
13A1395-823433 CHOKE, ElectricCHOKE, Electric
-
141395-9696 SCREW, COVER PLATESCREW, COVER PLATE
-
151395-97611 GASKET/DIAPHRAGM KITGASKET/DIAPHRAGM KIT
-
161395-96481 REPAIR KIT
(WMC-9/10/11/12)REPAIR KIT
(WMC-9/10/11/12) -
161395-8237072 REPAIR PARTS KIT
(WMC-24/25/26/27)REPAIR PARTS KIT
(WMC-24/25/26/27) -
16A1395-879194017 PLUGPLUG
-
1727-192061 GASKET, CARBURETORGASKET, CARBURETOR
-
1841717T BRACKET, PRIMERBRACKET, PRIMER
-
1910-400018 SCREW, (M5 x 12), BRACKET TO CARBURETORSCREW, (M5 x 12), BRACKET TO CARBURETOR
-
2042515A1 LEVER ASSEMBLY, FAST IDLELEVER ASSEMBLY, FAST IDLE
-
2141703 LEVER, PRIMERLEVER, PRIMER
-
2212733 IDLE WIREIDLE WIRE
-
23110241 ACTUATOR, PRIMERACTUATOR, PRIMER
-
2411043 KNOB, FAST IDLE - EARLY MARINER MODELSKNOB, FAST IDLE - EARLY MARINER MODELS
-
2525-627021 O-RING, (.301 x .070)
EARLY MARINIER MODELSO-RING, (.301 x .070)
EARLY MARINIER MODELS -
2612654 INSTRUCTION PLATE
(MERCURY)INSTRUCTION PLATE
(MERCURY) -
2712653 INSTRUCTION PLATE
(MARINER)INSTRUCTION PLATE
(MARINER) -
-27-41499A88 GASKET SETGASKET SET
