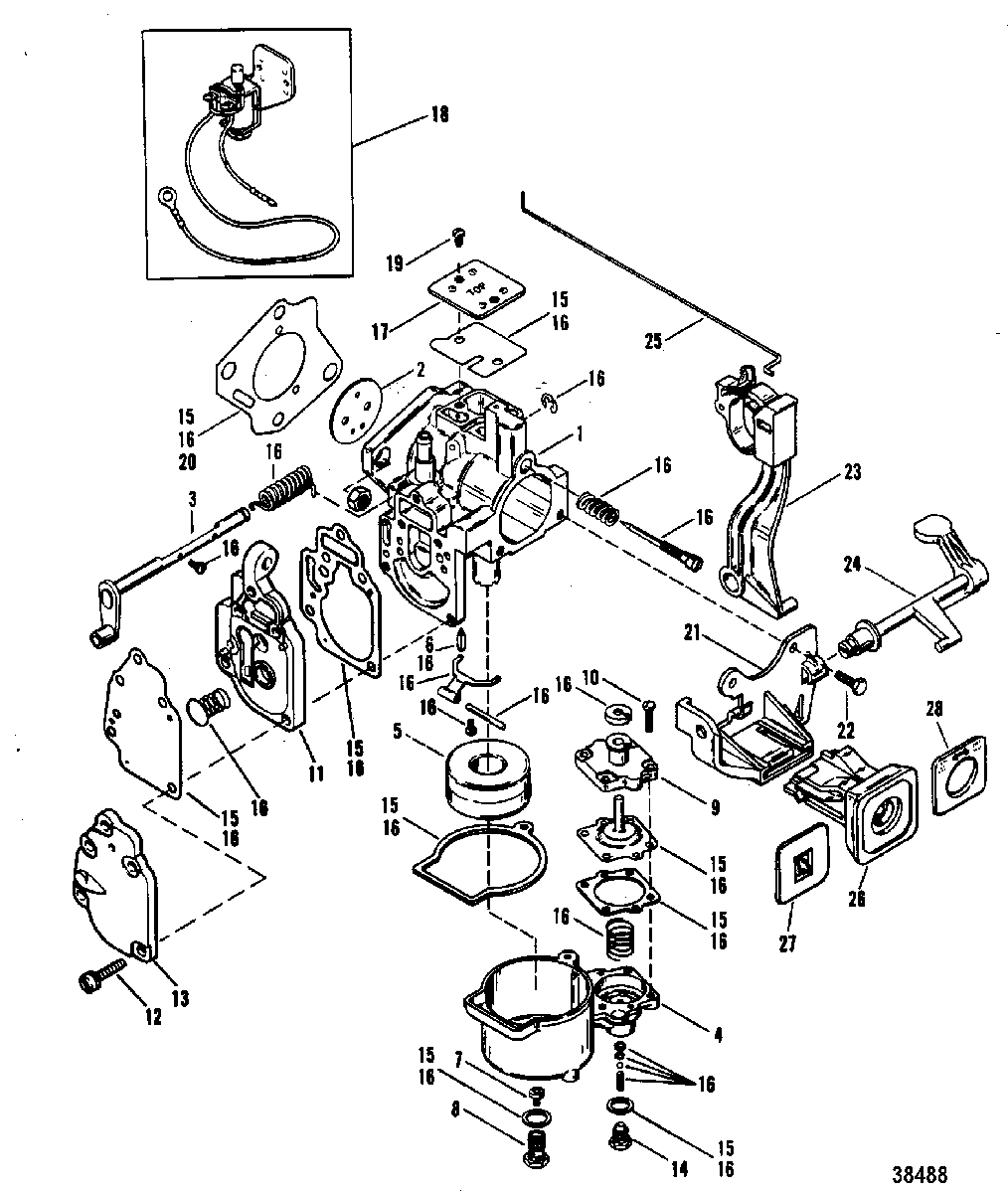

CARBURETOR(WMC-13/13A/14/14A/15/15A/16/16A) для Mercury - 25XD 9415101 THRU 9507380
-
№АртикулНазвание
-
11390-8888A16 CARBURETOR
(20-MANUAL-WMC13A)CARBURETOR
(20-MANUAL-WMC13A) -
11390-8888A16 CARBURETOR
(20-ELECTRIC-WMC14A)CARBURETOR
(20-ELECTRIC-WMC14A) -
11390-8889A20 CARBURETOR
(25-MANUAL-WMC15A)CARBURETOR
(25-MANUAL-WMC15A) -
1766-848389A4 PISTON ASSEMBLY
(25-ELECTRIC-WMC16A)PISTON ASSEMBLY
(25-ELECTRIC-WMC16A) -
21395-9640 VALVE, Throttle
(20)VALVE, Throttle
(20) -
21395-9646 VALVE, Throttle
(25)VALVE, Throttle
(25) -
31395-9695 SHAFT, Throttle
(WMC-13/14/15/16)SHAFT, Throttle
(WMC-13/14/15/16) -
31395-9695 SHAFT, Throttle
(WMC-13A/14A15A/16A)SHAFT, Throttle
(WMC-13A/14A15A/16A) -
41395-9164 BOWL, FuelBOWL, Fuel
-
51395-91691 FLOATFLOAT
-
61395-803861 VALVE, INLET NEEDLEVALVE, INLET NEEDLE
-
71399-5317 JET, (.046), MAIN FUEL
(20)JET, (.046), MAIN FUEL
(20) -
71395-6201 JET, (.080)
(25)JET, (.080)
(25) -
81395-9171 PLUG, JET RETAINERPLUG, JET RETAINER
-
9813618 COVER, DIAPHRAGMCOVER, DIAPHRAGM
-
101395-9697 SCREW, DIAPHRAGM COVER
(WMC-13/14/15/16)SCREW, DIAPHRAGM COVER
(WMC-13/14/15/16) -
101395-9697 SCREW, DIAPHRAGM COVER
(WMC-13A/14A/15A/16A)SCREW, DIAPHRAGM COVER
(WMC-13A/14A/15A/16A) -
111395-9702 BODY, FUEL PUMPBODY, FUEL PUMP
-
121395-9643 SCREW, FUEL PUMP COVERSCREW, FUEL PUMP COVER
-
131395-9637 COVER, FUEL PUMPCOVER, FUEL PUMP
-
141395-879194017 PLUGPLUG
-
151395-97611 GASKET/DIAPHRAGM KITGASKET/DIAPHRAGM KIT
-
161395-8237072 REPAIR PARTS KITREPAIR PARTS KIT
-
171395-9699 PLATE, COVER
(20-MANUAL/25-MANUAL-WMC15A)PLATE, COVER
(20-MANUAL/25-MANUAL-WMC15A) -
171395-9177 PLATE
25-MANUAL-WMC-15)PLATE
25-MANUAL-WMC-15) -
181395-823433 CHOKE, Electric
(WMC-14/WMC-16)CHOKE, Electric
(WMC-14/WMC-16) -
181395-823433 CHOKE, Electric
(WMC-14A/WMC-16A)CHOKE, Electric
(WMC-14A/WMC-16A) -
191395-9696 SCREW, COVER PLATE
(WMC-13/14/15/16)SCREW, COVER PLATE
(WMC-13/14/15/16) -
191395-9696 SCREW
(WMC-13A/14A/15A/16A)SCREW
(WMC-13A/14A/15A/16A) -
2027-192061 GASKET, CARBURETORGASKET, CARBURETOR
-
2141717T BRACKET, PRIMERBRACKET, PRIMER
-
2210-400018 SCREW, (M5 x 12), BRACKET TO CARBURETORSCREW, (M5 x 12), BRACKET TO CARBURETOR
-
2342515A1 LEVER ASSEMBLY, FAST IDLELEVER ASSEMBLY, FAST IDLE
-
2441703 LEVER, PRIMERLEVER, PRIMER
-
2512733 IDLE WIREIDLE WIRE
-
26110242 ACTUATOR, PRIMERACTUATOR, PRIMER
-
2712654 INSTRUCTION PLATE
(MERCURY)INSTRUCTION PLATE
(MERCURY) -
2812653 INSTRUCTION PLATE
(MARINER)INSTRUCTION PLATE
(MARINER)
