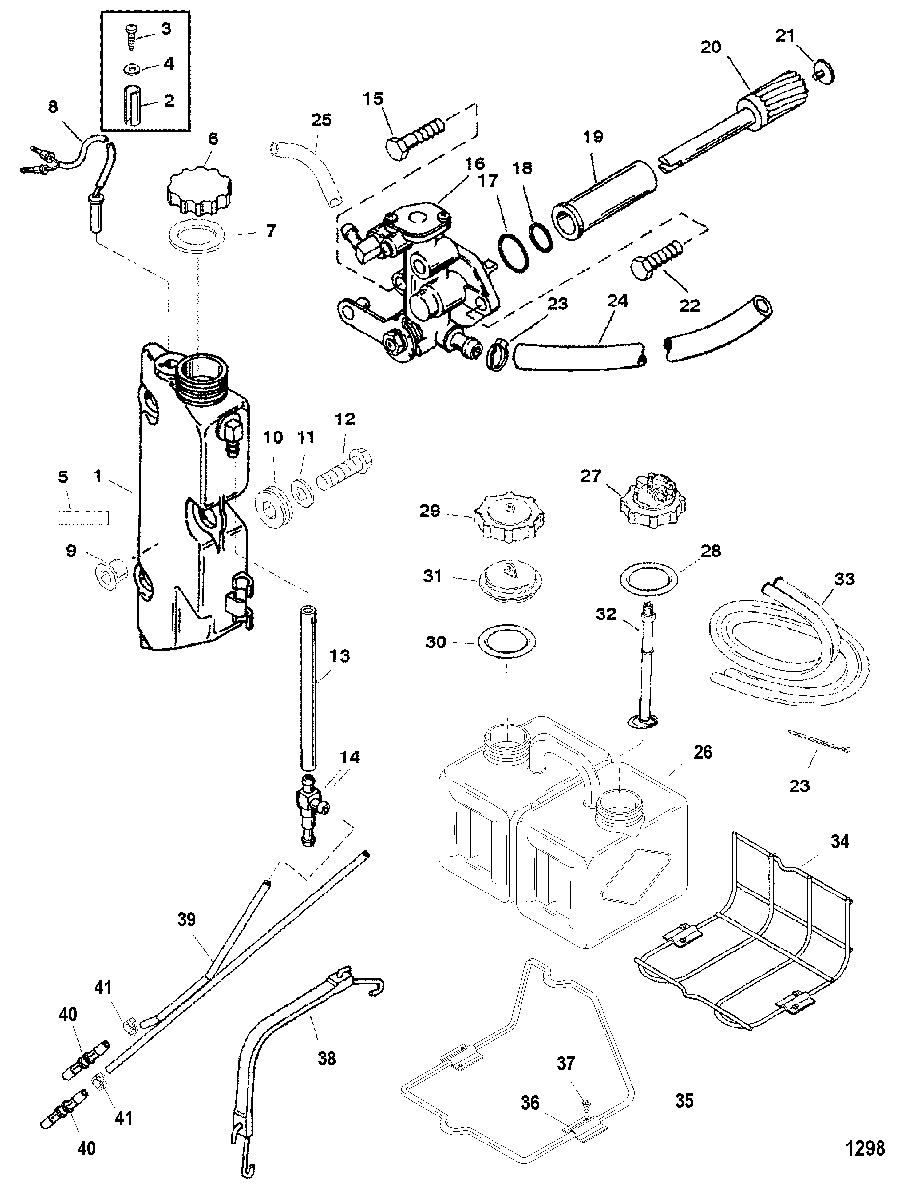

OIL INJECTION COMPONENTS для Mercury - 250XB (3.0L EFI) 0G980600 THRU 0T800999

  • №
    Артикул
    Название
  • 1
    1270-818456A1 TANK ASSEMBLY, Oil
    TANK ASSEMBLY, Oil
  • 2
    23-8260841 SPACER
    SPACER
  • 3
    10-58376 SCREW, (.164-18 x .375)
    SCREW, (.164-18 x .375)
  • 4
    12-72761 WASHER, (.203 x .562 x .060) Stainless Steel
    WASHER, (.203 x .562 x .060) Stainless Steel
  • 5
    NSS NOT SOLD SEPARATE, DECAL, Oil Tank
    NOT SOLD SEPARATE, DECAL, Oil Tank
  • 6
    36-814449A3 CAP ASSEMBLY
    CAP ASSEMBLY
  • 7
    27-42999T GASKET
    GASKET
  • 8
    87-12886A7 SWITCH ASSEMBLY
    SWITCH ASSEMBLY
  • 9
    23-19064 BUSHING
    BUSHING
  • 10
    25-825380001 GROMMET
    GROMMET
  • 11
    12-49436 WASHER
    WASHER
  • 12
    10-81893435 SCREW, (M8 x 35)
    SCREW, (M8 x 35)
  • 13
    32-8M0108355 HOSE, (57.00 Inches Bulk)
    HOSE, (57.00 Inches Bulk)
  • 14
    22-424254 FITTING
    FITTING
  • 15
    10-82104530 SCREW
    SCREW
  • 16
    815536T1 PUMP, Oil
    PUMP, Oil
  • 17
    25-11379 O-RING
    O-RING
  • 18
    25-48462 O-RING, (.614 x .070)
    O-RING, (.614 x .070)
  • 19
    23-817631 BEARING, Driven Gear
    BEARING, Driven Gear
  • 20
    43-430204 GEAR, Driven
    GEAR, Driven
  • 21
    816974 BEARING, Thrust
    BEARING, Thrust
  • 22
    10-82104520 SCREW, (M5 x 20)
    SCREW, (M5 x 20)
  • 23
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 24
    32-82381455 TUBING, (25.00 Inches Bulk) (Cut to 8-3/4 IN.)
    TUBING, (25.00 Inches Bulk) (Cut to 8-3/4 IN.)
  • 25
    32-82381335 TUBING, (15.00 Inches Bulk) (Cut to 10 IN.)
    TUBING, (15.00 Inches Bulk) (Cut to 10 IN.)
  • -
    1257-8742A22 TANK ASSEMBLY, Remote Oil
    (USE WITH DESIGN I BRACKET)
    TANK ASSEMBLY, Remote Oil
    (USE WITH DESIGN I BRACKET)
  • -
    1257-8742A22 TANK ASSEMBLY, Remote Oil
    (USE WITH DESIGN II BRACKET)
    TANK ASSEMBLY, Remote Oil
    (USE WITH DESIGN II BRACKET)
  • 26
    1257-87421 TANK
    TANK
  • 27
    816190A4 SENDER ASSEMBLY, Oil Level
    SENDER ASSEMBLY, Oil Level
  • 28
    25-11332 O-RING, (2.225 x .210)
    O-RING, (2.225 x .210)
  • 29
    36-43298A2 CAP ASSEMBLY
    CAP ASSEMBLY
  • 30
    25-11332 O-RING, (2.225 x .210)
    O-RING, (2.225 x .210)
  • 31
    NSS NOT SOLD SEPARATE, Insert
    NOT SOLD SEPARATE, Insert
  • 32
    32-99802 TUBE
    TUBE
  • 33
    32-99439 HOSE, (114.00 Inches)
    HOSE, (114.00 Inches)
  • 34
    12335A1 BRACKET KIT
    (DESIGN I)
    BRACKET KIT
    (DESIGN I)
  • 35
    884481A1 BRACKET KIT
    (DESIGN II)
    BRACKET KIT
    (DESIGN II)
  • 36
    12320 BRACKET
    BRACKET
  • 37
    10-79968 SCREW, (#12-11 x .750)
    SCREW, (#12-11 x .750)
  • 38
    12323A1 CORD/HOOK KIT
    CORD/HOOK KIT
  • 39
    32-858853 HOSE
    HOSE
  • 40
    22-858955 CONNECTOR
    CONNECTOR
  • 41
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
