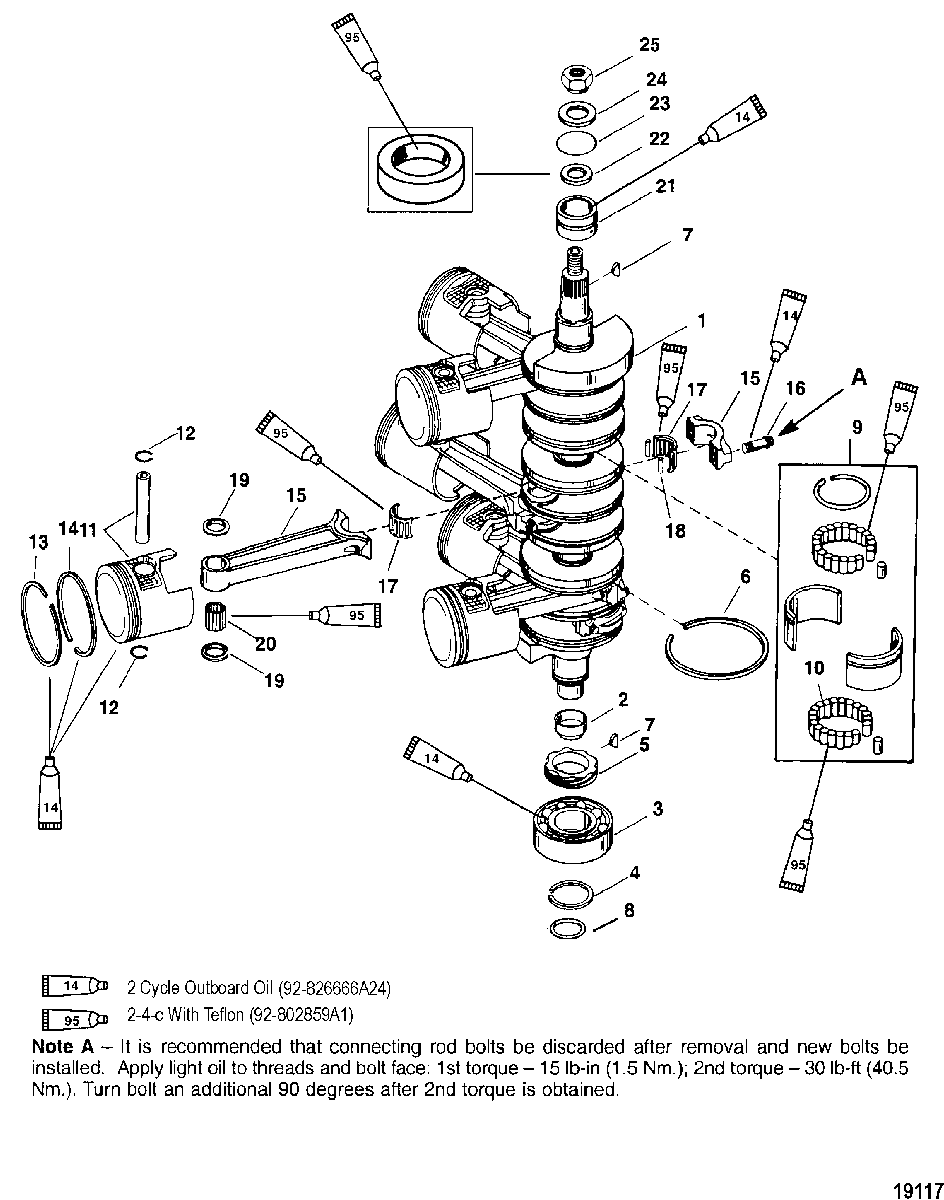

CRANKSHAFT, PISTONS - AND CONNECTING RODS для Mercury - 250XB (3.0L EFI) 0G980600 THRU 0T800999

№

Артикул

Название
1

482-9784A11 CRANKSHAFT ASSEMBLY

CRANKSHAFT ASSEMBLY
2

NSS NOT SOLD SEPARATE, Wear Sleeve

NOT SOLD SEPARATE, Wear Sleeve
3

30-67923T BEARING, Ball (LOWER)

BEARING, Ball (LOWER)
4

53-67446 RING

RING
5

43-19301 GEAR

GEAR
6

39-843198T01 RING

RING
7

28-91800 KEY, Woodruff

KEY, Woodruff
8

25-35126 O-RING, (.859 x .139)

O-RING, (.859 x .139)
9

8M0113288 RACE ASSEMBLY, Bearing
SN# 0T325116 & Below

RACE ASSEMBLY, Bearing
SN# 0T325116 & Below
9

31-88270A02 RACE ASSEMBLY
SN# 0T325117 & Up

RACE ASSEMBLY
SN# 0T325117 & Up
10

NSS NOT SOLD SEPARATE, Roller
SN# 0T325116 & Below

NOT SOLD SEPARATE, Roller
SN# 0T325116 & Below
10

NSS NOT SOLD SEPARATE, Roller Bearing
SN# 0T325117 & Below

NOT SOLD SEPARATE, Roller Bearing
SN# 0T325117 & Below
11

700-858295T2 PISTON
(STARBOARD)

PISTON
(STARBOARD)
11

700-858294T2 PISTON
(PORT)

PISTON
(PORT)
12

40-841202 RING

RING
13

39-827179A12 RING SET, Piston

RING SET, Piston
14

NSS NOT SOLD SEPARATE, PISTON RING (SECOND)

NOT SOLD SEPARATE, PISTON RING (SECOND)
15

600-8M0125869 CONNECTING ROD ASSEMBLY

CONNECTING ROD ASSEMBLY
16

10-94320 SCREW, (.375-24 x 1.250)

SCREW, (.375-24 x 1.250)
17

31-844338A01 BEARING/CAGE KIT

BEARING/CAGE KIT
18

NSS NOT SOLD SEPARATE, Bearing

NOT SOLD SEPARATE, Bearing
19

12-88263 THRUST WASHER

THRUST WASHER
20

29-88258001 NEEDLE, Roller Bearing

NEEDLE, Roller Bearing
21

31-816773A2 BEARING ASSEMBLY (UPPER)

BEARING ASSEMBLY (UPPER)
22

26-859093 SEAL

SEAL
23

25-823683 O-RING, (1.989 x .070)

O-RING, (1.989 x .070)
24

12-33001 WASHER, (.641 x 1.250 x .190)

WASHER, (.641 x 1.250 x .190)
25

11-42979 NUT, (M16)

NUT, (M16)
-

27-832933A98 GASKET SET

GASKET SET
-

61-848700A7 POWERHEAD ASSEMBLY

POWERHEAD ASSEMBLY
