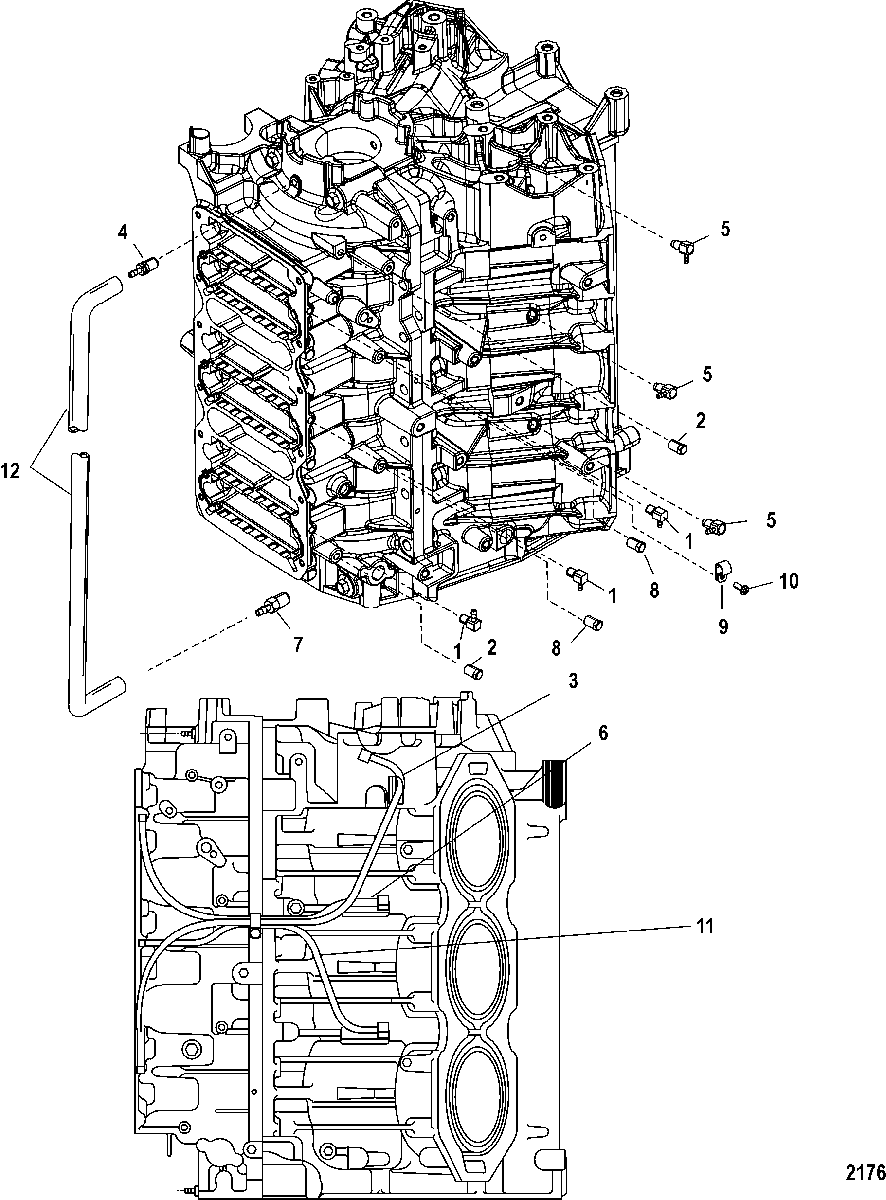

Port Bleed System для Mercury - 250 LONG (3.0L)(EFI) 0T861319 & Up

  • №
    Артикул
    Название
  • 1
    21-8282182 CHECK VALVE
    CHECK VALVE
  • 2
    22-8272011 PIPE PLUG
    PIPE PLUG
  • 3
    32-8M0054152 TUBING, (38.00 Inches Bulk) (Cut to 20-1/2 Inches)
    TUBING, (38.00 Inches Bulk) (Cut to 20-1/2 Inches)
  • 4
    21-8159234 CHECK VALVE
    CHECK VALVE
  • 5
    21-8592352 CHECK VALVE, 90 Degree (.0625-27)
    CHECK VALVE, 90 Degree (.0625-27)
  • 6
    32-8M0054152 TUBING, (38.00 Inches Bulk) (Cut to 13 Inches)
    TUBING, (38.00 Inches Bulk) (Cut to 13 Inches)
  • 7
    21-426585 CHECK VALVE
    CHECK VALVE
  • 8
    22-8272011 PIPE PLUG
    PIPE PLUG
  • 9
    54-23567 CLIP
    CLIP
  • 10
    10-878608 SCREW, (#10-16 x .500)
    SCREW, (#10-16 x .500)
  • 11
    32-8M0054152 TUBING, (38.00 Inches Bulk) (Cut to 11 Inches)
    TUBING, (38.00 Inches Bulk) (Cut to 11 Inches)
  • 12
    32-892024122 TUBING, (240.00 Inches Bulk) (Cut to 22-1/2 Inches)
    TUBING, (240.00 Inches Bulk) (Cut to 22-1/2 Inches)
  • -
    883894A07 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
