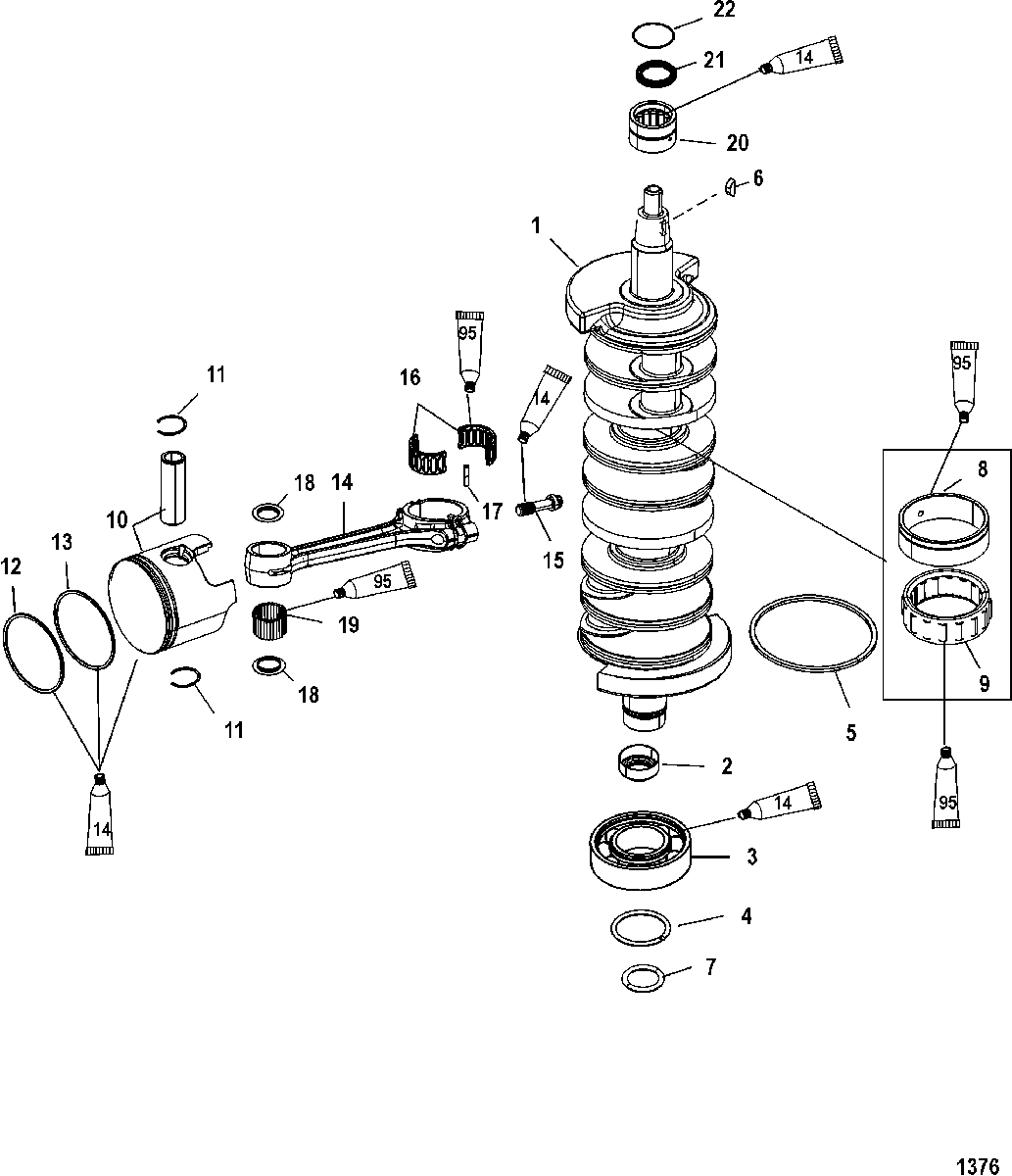

Crankshaft, Pistons and Connecting Rods для Mercury - 250 LONG (3.0L)(EFI) 0T861319 & Up

  • №
    Артикул
    Название
  • 1
    482-9784A11 CRANKSHAFT ASSEMBLY
    CRANKSHAFT ASSEMBLY
  • 2
    NSS NOT SOLD SEPARATE, Wear Sleeve
    NOT SOLD SEPARATE, Wear Sleeve
  • 3
    30-67923T BEARING, Ball (LOWER)
    BEARING, Ball (LOWER)
  • 4
    53-67446 RING
    RING
  • 5
    39-843198T01 RING
    SN# 0T979999 & Below
    RING
    SN# 0T979999 & Below
  • 5
    39-843198T01 RING, Seal
    SN# 0T980000 & Up
    RING, Seal
    SN# 0T980000 & Up
  • 6
    28-91800 KEY, Woodruff
    KEY, Woodruff
  • 7
    25-35126 O-RING, (.859 x .139)
    O-RING, (.859 x .139)
  • 8
    31-88270A02 RACE ASSEMBLY
    RACE ASSEMBLY
  • 9
    NSS NOT SOLD SEPARATE, Needle Roller
    NOT SOLD SEPARATE, Needle Roller
  • 10
    700-858295T14 PISTON
    (STBD-STANDARD)
    PISTON
    (STBD-STANDARD)
  • 10
    700-858294T14 PISTON
    (PORT-STANDARD)
    PISTON
    (PORT-STANDARD)
  • 10
    700-878572A2 PISTON ASSEMBLY
    (STARBOARD)(.015 O/S)
    PISTON ASSEMBLY
    (STARBOARD)(.015 O/S)
  • 10
    700-878571A2 PISTON ASSEMBLY
    (PORT)(.015 O/S)
    PISTON ASSEMBLY
    (PORT)(.015 O/S)
  • 10
    700-878574A2 PISTON ASSEMBLY
    (STARBOARD)(.030 O/S)
    PISTON ASSEMBLY
    (STARBOARD)(.030 O/S)
  • 10
    700-878573A2 PISTON ASSEMBLY
    (PORT)(.030 O/S)
    PISTON ASSEMBLY
    (PORT)(.030 O/S)
  • 11
    40-841202 RING
    RING
  • 12
    39-858772A12 RING SET, Piston
    RING SET, Piston
  • 12
    39-875252A12 RING SET, Piston
    (.015 O/S)
    RING SET, Piston
    (.015 O/S)
  • 12
    39-875257A12 RING SET, Piston
    (.030 O/S)
    RING SET, Piston
    (.030 O/S)
  • 13
    NSS NOT SOLD SEPARATE, Piston Ring-Lower
    NOT SOLD SEPARATE, Piston Ring-Lower
  • 14
    600-8M0125869 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 15
    10-94320 SCREW, (.375-24 x 1.250)
    SCREW, (.375-24 x 1.250)
  • 16
    31-844338A01 BEARING/CAGE KIT
    BEARING/CAGE KIT
  • 17
    NSS NOT SOLD SEPARATE, Needle Roller Bearing
    NOT SOLD SEPARATE, Needle Roller Bearing
  • 18
    12-88263 THRUST WASHER
    THRUST WASHER
  • 19
    29-88258001 BEARING, Needle
    BEARING, Needle
  • 20
    31-816773A2 BEARING ASSEMBLY (UPPER)
    BEARING ASSEMBLY (UPPER)
  • 21
    26-859093 SEAL
    SEAL
  • 22
    25-823683 O-RING, (1.989 x .070)
    O-RING, (1.989 x .070)
  • -
    27-832934A00 GASKET SET, Powerhead
    GASKET SET, Powerhead
  • -
    883894A07 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
