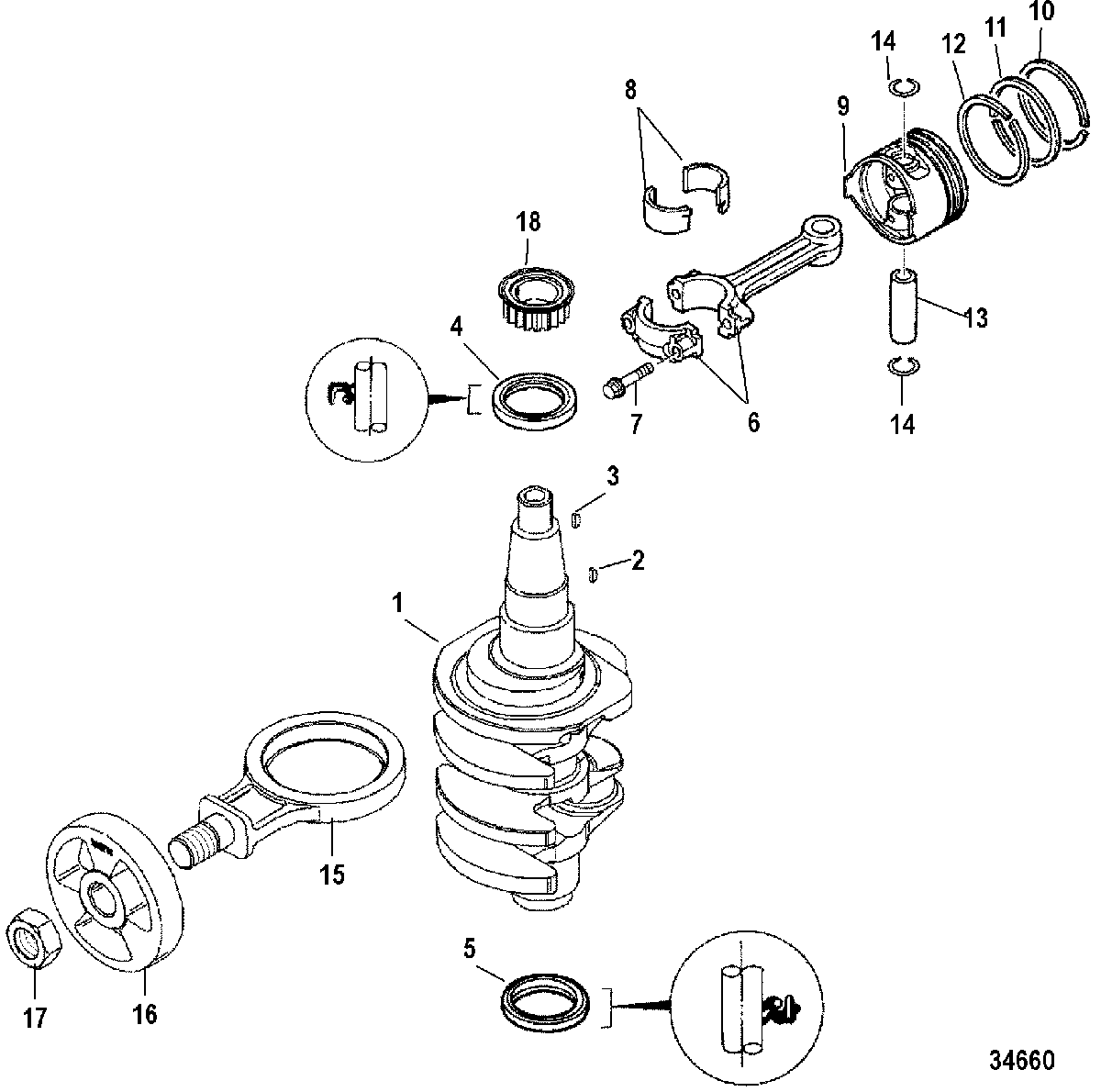

Crankshaft, Pistons and Connecting Rods для Mercury - 25 (4-STROKE) 0P017000 THRU 0P153499

  • №
    Артикул
    Название
  • 1
    2400-8M0084517 CRANKSHAFT
    CRANKSHAFT
  • 2
    28-893761 KEY
    KEY
  • 3
    28-91800 KEY, Woodruff
    KEY, Woodruff
  • 4
    26-893949 SEAL
    SEAL
  • 5
    26-893948 SEAL
    SEAL
  • 6
    600-893530T01 CONNECTING ROD
    CONNECTING ROD
  • 7
    10-8M0049884 BOLT
    BOLT
  • 8
    23-893630 BEARING, Brown
    BEARING, Brown
  • 8
    23-893630001 BEARING, Black
    BEARING, Black
  • 8
    23-893630002 BEARING, Blue
    BEARING, Blue
  • 9
    700-893524T08 PISTON ASSEMBLY
    Standard
    PISTON ASSEMBLY
    Standard
  • 9
    700-8M0057775 PISTON
    .25 Oversize - Piston Only
    PISTON
    .25 Oversize - Piston Only
  • 9
    700-8M0057776 PISTON
    .50 Oversize - Piston Only
    PISTON
    .50 Oversize - Piston Only
  • 10
    39-893525A01 RING SET, Piston
    Standard
    RING SET, Piston
    Standard
  • 10
    39-893525A02 RING, Piston, Top
    .25mm Oversize
    RING, Piston, Top
    .25mm Oversize
  • 10
    39-893525A03 RING, Piston, Top
    .50mm Oversize
    RING, Piston, Top
    .50mm Oversize
  • 11
    NSS NOT SOLD SEPARATE, Piston Ring-Second
    Standard
    NOT SOLD SEPARATE, Piston Ring-Second
    Standard
  • 11
    NSS NOT SOLD SEPARATE, Piston Ring-Second
    .25mm Oversize
    NOT SOLD SEPARATE, Piston Ring-Second
    .25mm Oversize
  • 11
    NSS NOT SOLD SEPARATE, Piston Ring-Second
    .50mm Oversize
    NOT SOLD SEPARATE, Piston Ring-Second
    .50mm Oversize
  • 12
    39-893950 RING, Oil
    Standard
    RING, Oil
    Standard
  • 12
    NSS NOT SOLD SEPARATE, Ring-Oil - Piston
    Oversize
    NOT SOLD SEPARATE, Ring-Oil - Piston
    Oversize
  • 13
    41-893863 PIN, Piston
    PIN, Piston
  • 14
    40-893529 RETAINER
    RETAINER
  • 15
    652-831876A1 BALANCE ROD
    BALANCE ROD
  • 16
    701-831875T2 PISTON
    PISTON
  • 17
    11-893789 NUT
    NUT
  • 18
    833102T GEAR, Drive
    GEAR, Drive
  • -
    61-854236T00 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
  • -
    27-830270A02 GASKET SET
    GASKET SET
