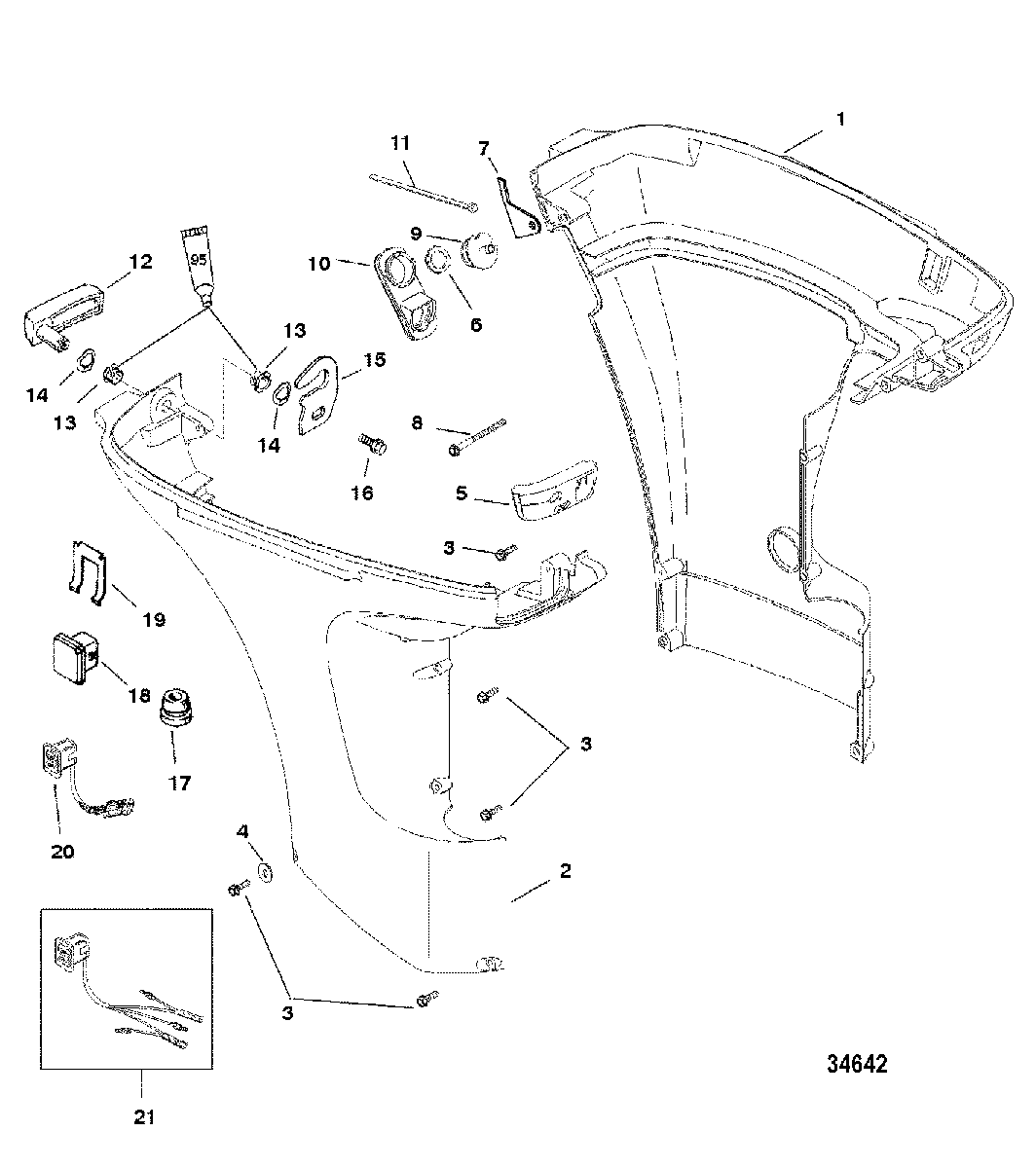

Bottom Cowl для Mercury - 25 (4-STROKE) 0P017000 THRU 0P153499

  • №
    Артикул
    Название
  • 1
    4020-852554T1 BOTTOM COWL
    Short-Port-Black
    BOTTOM COWL
    Short-Port-Black
  • 1
    4020-852554T2 BOTTOM COWL
    Short-Port-Gray
    BOTTOM COWL
    Short-Port-Gray
  • 1
    4020-826277T1 BOTTOM COWL
    Long-Port-Black
    BOTTOM COWL
    Long-Port-Black
  • 1
    4020-826277T1 BOTTOM COWL
    Long-Port-Gray
    BOTTOM COWL
    Long-Port-Gray
  • 2
    4020-852555T5 BOTTOM COWL
    Short-Starboard-Black
    BOTTOM COWL
    Short-Starboard-Black
  • 2
    4020-852555T2 BOTTOM COWL
    Short-Starboard-Gray
    BOTTOM COWL
    Short-Starboard-Gray
  • 2
    4020-826278T7 BOTTOM COWL
    Long-Starboard-Black
    BOTTOM COWL
    Long-Starboard-Black
  • 2
    4020-826278T7 BOTTOM COWL
    Long-Starboard-Gray
    BOTTOM COWL
    Long-Starboard-Gray
  • 3
    10-82684430 SCREW, (M6 x 30)
    SCREW, (M6 x 30)
  • 4
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 5
    825238002 SEAL
    SEAL
  • 6
    12-855576 WASHER
    WASHER
  • 7
    27-855627 GASKET
    GASKET
  • 8
    10-82684460 SCREW, (M6 x 60)
    SCREW, (M6 x 60)
  • 9
    22-827948 FITTING
    FITTING
  • 10
    826273001 BOOT
    BOOT
  • 11
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 12
    825782F1 LEVER, Cowl Latch
    Black
    LEVER, Cowl Latch
    Black
  • 12
    825782F1 LEVER, Cowl Latch
    Gray
    LEVER, Cowl Latch
    Gray
  • 13
    23-812707 BUSHING
    BUSHING
  • 14
    13-12134 WASHER, Wave
    WASHER, Wave
  • 15
    893766 LATCH HOOK
    LATCH HOOK
  • 16
    10-1993716 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 17
    25-19564001 GROMMET
    Non-Power Trim
    GROMMET
    Non-Power Trim
  • 17
    25-19565002 GROMMET
    Split-Power Trim
    GROMMET
    Split-Power Trim
  • 18
    812830T01 PLUG
    Non-Power Trim
    PLUG
    Non-Power Trim
  • 19
    8M0032848 RETAINER
    Non-Power Trim
    RETAINER
    Non-Power Trim
  • 20
    87-8M0042300 SWITCH, Trim
    Power Trim- Design II
    SWITCH, Trim
    Power Trim- Design II
  • 21
    87-8M0042301 SWITCH ASSEMBLY
    Power Trim - Design I
    SWITCH ASSEMBLY
    Power Trim - Design I
