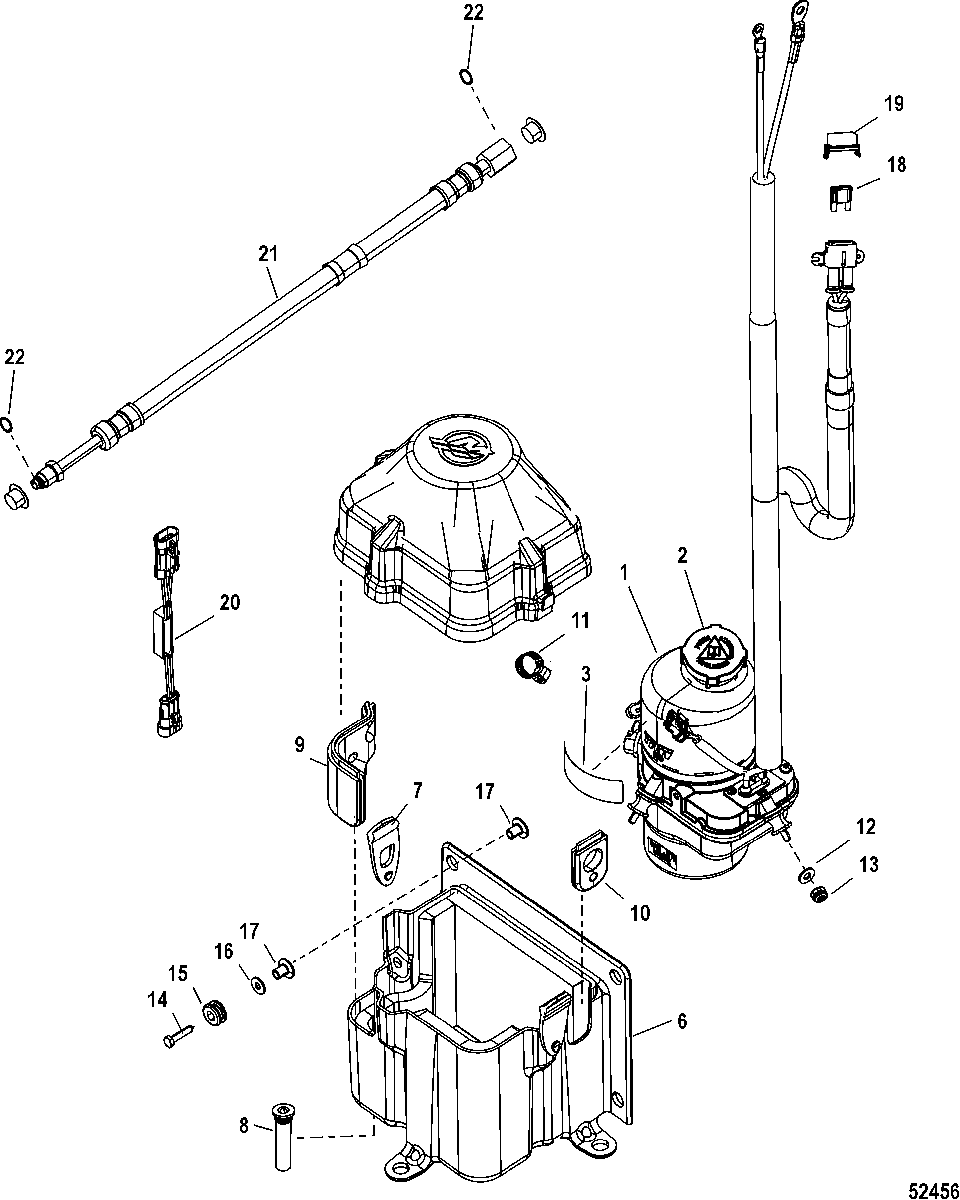

Pump Kit-Power Steering(4 thru 24 Feet) для Mercury - 225 VERADO (4-STROKE)(6 CYL.) 2B144123 & Up

  • №
    Артикул
    Название
  • -
    8M0131261 PUMP KIT, Power Steering (4 Feet)
    PUMP KIT, Power Steering (4 Feet)
  • -
    8M0131262 PUMP KIT, Power Steering (12 Feet)
    PUMP KIT, Power Steering (12 Feet)
  • -
    8M0131263 PUMP KIT, Power Steering (24 Feet)
    PUMP KIT, Power Steering (24 Feet)
  • 1
    NSS NOT SOLD SEPARATE, PUMP
    NOT SOLD SEPARATE, PUMP
  • 2
    892485003 CAP, Pump
    CAP, Pump
  • 3
    NSS NOT SOLD SEPARATE, DECAL, Fluid Type
    NOT SOLD SEPARATE, DECAL, Fluid Type
  • 4
    893364A05 ENCLOSURE ASSEMBLY, Complete-Power Steering Pump
    (Complete Enclosure Assembly fits all versions)
    ENCLOSURE ASSEMBLY, Complete-Power Steering Pump
    (Complete Enclosure Assembly fits all versions)
  • -
    893365A03 COVER ASSEMBLY, Top/Bottom, Power Steering Pump
    (Includes both Top 893365T02 and Bottom 893364T02 Covers)
    COVER ASSEMBLY, Top/Bottom, Power Steering Pump
    (Includes both Top 893365T02 and Bottom 893364T02 Covers)
  • 5
    893365T02 ENCLOSURE ASSEMBLY, Top, Power Steering Pump
    ENCLOSURE ASSEMBLY, Top, Power Steering Pump
  • 6
    8M0080707 ENCLOSURE ASSEMBLY, Bottom-Power Steering Pump
    ENCLOSURE ASSEMBLY, Bottom-Power Steering Pump
  • 7
    889531 STRAP
    STRAP
  • 8
    21-817519A2 CHECK VALVE ASSEMBLY, Drain
    CHECK VALVE ASSEMBLY, Drain
  • 9
    25-893368001 GROMMET
    GROMMET
  • 10
    25-893369 GROMMET
    GROMMET
  • 11
    54-815504206 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 12
    12-4002316 WASHER
    WASHER
  • 13
    11-401366 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 14
    10-895378 SCREW, (M6)
    SCREW, (M6)
  • 15
    25-895319 GROMMET
    GROMMET
  • 16
    12-4002316 WASHER
    WASHER
  • 17
    23-895320F1 BUSHING
    BUSHING
  • 18
    88-79023A94 FUSE ASSEMBLY, 50 Ampere
    FUSE ASSEMBLY, 50 Ampere
  • 19
    879346T24 FUSE COVER AND O-RING
    FUSE COVER AND O-RING
  • 20
    8M0026568 HARNESS ASSEMBLY, Signal Driver
    HARNESS ASSEMBLY, Signal Driver
  • 21
    32-897643A01 HOSE KIT, Dampening
    HOSE KIT, Dampening
  • 22
    25-89879 O-RING, (.301 x .064)
    O-RING, (.301 x .064)
