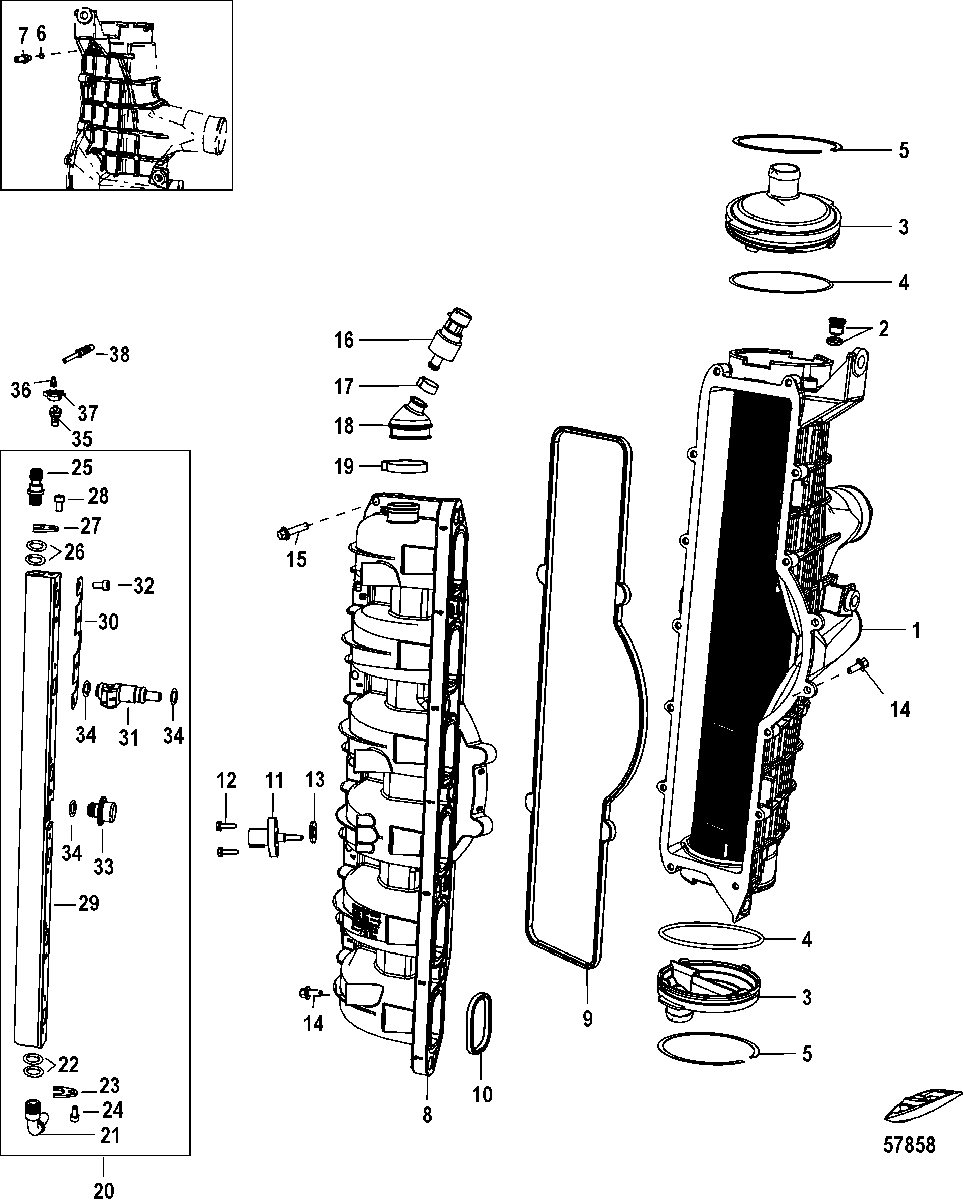

Charge Cooler/Intake Manifold для Mercury - 225 VERADO (4-STROKE)(6 CYL.) 2B144123 & Up
-
№АртикулНазвание
-
-8M0131233 MODULE ASSEMBLY, Integrated Air FuelMODULE ASSEMBLY, Integrated Air Fuel
-
18M0132388 CAC ASSEMBLYCAC ASSEMBLY
-
219-8M0048079 PLUG , 8MMPLUG , 8MM
-
38M0046698 END CAP ASSEMBLYEND CAP ASSEMBLY
-
425-8M0039516 O-RINGO-RING
-
553-8M0039464 RING, RetainingRING, Retaining
-
625-8M0040116 O-RINGO-RING
-
722-8M0039993 FITTINGFITTING
-
88M0083678 MANIFOLD ASSEMBLY, IntakeMANIFOLD ASSEMBLY, Intake
-
9895019 SEAL, Manifold to CACSEAL, Manifold to CAC
-
10895020 SEAL, Manifold HeadSEAL, Manifold Head
-
11891663001 SENSOR ASSEMBLY, TemperatureSENSOR ASSEMBLY, Temperature
-
1210-895054 SCREWSCREW
-
1325-892317001 O-RINGO-RING
-
1410-8M0103805 SCREW, (M6 x 16 MM) Stainless Steel, Fuel Rail to ManifoldSCREW, (M6 x 16 MM) Stainless Steel, Fuel Rail to Manifold
-
1410-8M0103805 SCREW, (M6 x 16 MM) Stainless Steel, CAC to ManifoldSCREW, (M6 x 16 MM) Stainless Steel, CAC to Manifold
-
1510-8M0103807 SCREW, (M6 x 25 MM) Stainless Steel, Manifold to CACSCREW, (M6 x 25 MM) Stainless Steel, Manifold to CAC
-
168M6000639 SENSOR, PressureSENSOR, Pressure
-
1754-13791 CLAMP, (15.7)CLAMP, (15.7)
-
188M0041053 BOOT, MAP SensorBOOT, MAP Sensor
-
1954-888988001 CLAMP, (36.1 mm)CLAMP, (36.1 mm)
-
208M0129411 FUEL RAIL ASSEMBLYFUEL RAIL ASSEMBLY
-
2132-8M0047054 TUBE KIT, Fuel InletTUBE KIT, Fuel Inlet
-
22NSS NOT SOLD SEPARATE, O-RING TubeNOT SOLD SEPARATE, O-RING Tube
-
238M0041097 BRACKET, RetainingBRACKET, Retaining
-
2410-8M0041100 SCREW, (M5 x 10)SCREW, (M5 x 10)
-
258M0047053 VALVE KIT, ShraderVALVE KIT, Shrader
-
26NSS NOT SOLD SEPARATE, O-ring- Shrader ValveNOT SOLD SEPARATE, O-ring- Shrader Valve
-
278M0041097 BRACKET, RetainingBRACKET, Retaining
-
2810-8M0041100 SCREW, (M5 x 10)SCREW, (M5 x 10)
-
29NSS NOT SOLD SEPARATE, FUEL RAILNOT SOLD SEPARATE, FUEL RAIL
-
308M0041096 BRACKET, Fuel Injector MountingBRACKET, Fuel Injector Mounting
-
318M0041571 INJECTOR ASSEMBLY, FuelINJECTOR ASSEMBLY, Fuel
-
3210-8M0041100 SCREW, (M5 x 10)SCREW, (M5 x 10)
-
338M0041101 DAMPER, Fuel RailDAMPER, Fuel Rail
-
3425-851889 O-RINGO-RING
-
358M0103315 PITOT SENSOR KITPITOT SENSOR KIT
-
3622-892403 FITTINGFITTING
-
3754-883066 CLIP, (.865)CLIP, (.865)
-
3822-859731 FITTING, AdapterFITTING, Adapter
