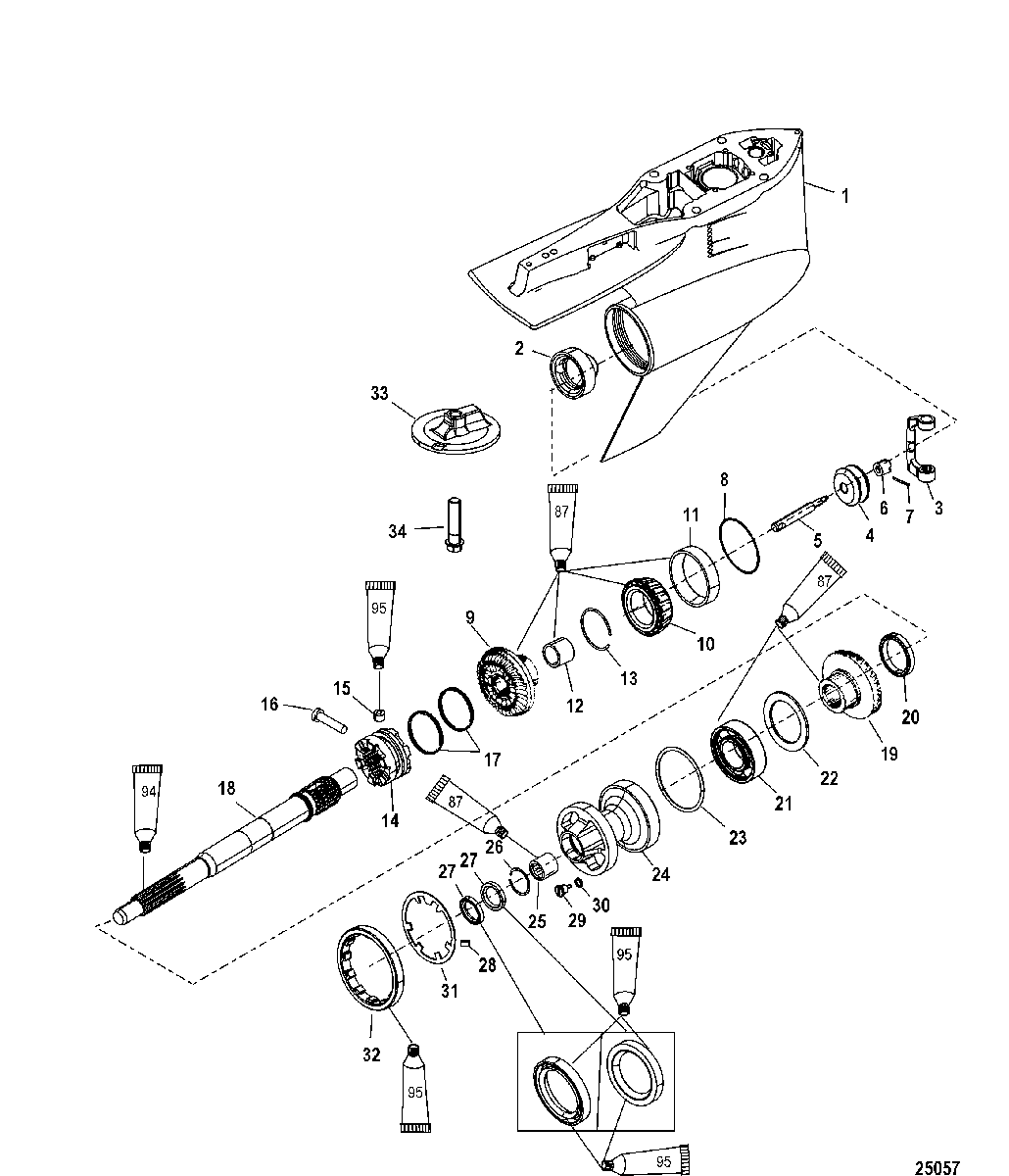

Gear Housing, Propeller Shaft - TorqueMaster для Mercury - 225 PRO XS (3.0L DFI) 1B426561 THRU 1B752546

  • №
    Артикул
    Название
  • -
    1689-8M0072952 GEAR HOUSING ASSEMBLY, Complete (Long)(1.75:1)
    SN# 1B465108 & Below
    GEAR HOUSING ASSEMBLY, Complete (Long)(1.75:1)
    SN# 1B465108 & Below
  • -
    1689-8M0072952 GEAR HOUSING ASSEMBLY, Complete (Long)(1.75:1)
    SN# 1B465109 & Up
    GEAR HOUSING ASSEMBLY, Complete (Long)(1.75:1)
    SN# 1B465109 & Up
  • -
    1689-8M0072953 GEAR HOUSING ASSEMBLY, Complete (X-Long)(1.75:1)
    SN# 1B465108 & Below
    GEAR HOUSING ASSEMBLY, Complete (X-Long)(1.75:1)
    SN# 1B465108 & Below
  • -
    1689-8M0072953 GEAR HOUSING ASSEMBLY, Complete (X-Long)(1.75:1)
    SN# 1B465109 & Up
    GEAR HOUSING ASSEMBLY, Complete (X-Long)(1.75:1)
    SN# 1B465109 & Up
  • 1
    1689-8M0072954 GEAR HOUSING ASSEMBLY, Basic
    SN# 1B465108 & Below
    GEAR HOUSING ASSEMBLY, Basic
    SN# 1B465108 & Below
  • 1
    1689-8M0072954 GEAR HOUSING ASSEMBLY, Basic (Black)
    SN# 1B465109 & Up
    GEAR HOUSING ASSEMBLY, Basic (Black)
    SN# 1B465109 & Up
  • 2
    22-859403 PLUG
    PLUG
  • 3
    823903 SHIFT CRANK
    SHIFT CRANK
  • 4
    19755T7 SPOOL ASSEMBLY
    SPOOL ASSEMBLY
  • 5
    NSS NOT SOLD SEPARATE, Spool
    NOT SOLD SEPARATE, Spool
  • 6
    NSS NOT SOLD SEPARATE, Sleeve
    NOT SOLD SEPARATE, Sleeve
  • 7
    NSS NOT SOLD SEPARATE, Cotter Pin
    NOT SOLD SEPARATE, Cotter Pin
  • 8
    15-47397A1 SHIM SET
    SHIM SET
  • 9
    43-859321T04 GEAR SET, Forward/Pinion
    GEAR SET, Forward/Pinion
  • 10
    31-828437A2 BEARING ASSEMBLY
    BEARING ASSEMBLY
  • 11
    NSS NOT SOLD SEPARATE, Cup
    NOT SOLD SEPARATE, Cup
  • 12
    31-30895T BEARING, Needle
    BEARING, Needle
  • 13
    53-856823 RING, Retaining
    RING, Retaining
  • 14
    52-848878T CLUTCH
    CLUTCH
  • 15
    17-78909 PIN, Detent
    PIN, Detent
  • 16
    17-848838 PIN, Cross
    PIN, Cross
  • 17
    24-78962 SPRING
    SPRING
  • 18
    44-841978 PROPELLER SHAFT
    PROPELLER SHAFT
  • 19
    43-848881A1 GEAR, Reverse
    GEAR, Reverse
  • 20
    23-8241081 THRUST SPACER
    THRUST SPACER
  • 21
    30-88957T BEARING, Ball
    BEARING, Ball
  • 22
    681001 RING, Thrust
    RING, Thrust
  • 23
    25-31534 O-RING
    SN# 1B465108 & Below
    O-RING
    SN# 1B465108 & Below
  • 23
    25-896524 O-RING, (3.850 x .210)
    SN# 1B465109 & Up
    O-RING, (3.850 x .210)
    SN# 1B465109 & Up
  • 24
    848840A1 CARRIER ASSEMBLY, Bearing
    CARRIER ASSEMBLY, Bearing
  • 25
    31-817072 BEARING, Roller
    BEARING, Roller
  • 26
    53-817071 RING, Snap
    RING, Snap
  • 27
    26-815565 SEAL, Oil
    SEAL, Oil
  • 28
    28-30281 KEY
    KEY
  • 29
    22-8M0058389 PLUG KIT, Drain - Magnetic
    SN# 1B465108 & Below
    PLUG KIT, Drain - Magnetic
    SN# 1B465108 & Below
  • 29
    10-79953Q04 SCREW KIT, Drain
    SN# 1B465109 & Up
    SCREW KIT, Drain
    SN# 1B465109 & Up
  • 30
    26-830749 SEAL
    SEAL
  • 31
    14-79447 TAB WASHER
    TAB WASHER
  • 32
    8M2000347 RETAINER
    RETAINER
  • 33
    97-76214Q5 ANODE
    ANODE
  • 34
    10-66024 SCREW, (.437-14 x 1.75)
    SCREW, (.437-14 x 1.75)
  • -
    26-816575A6 SEAL KIT, Gear Housing
    SEAL KIT, Gear Housing
