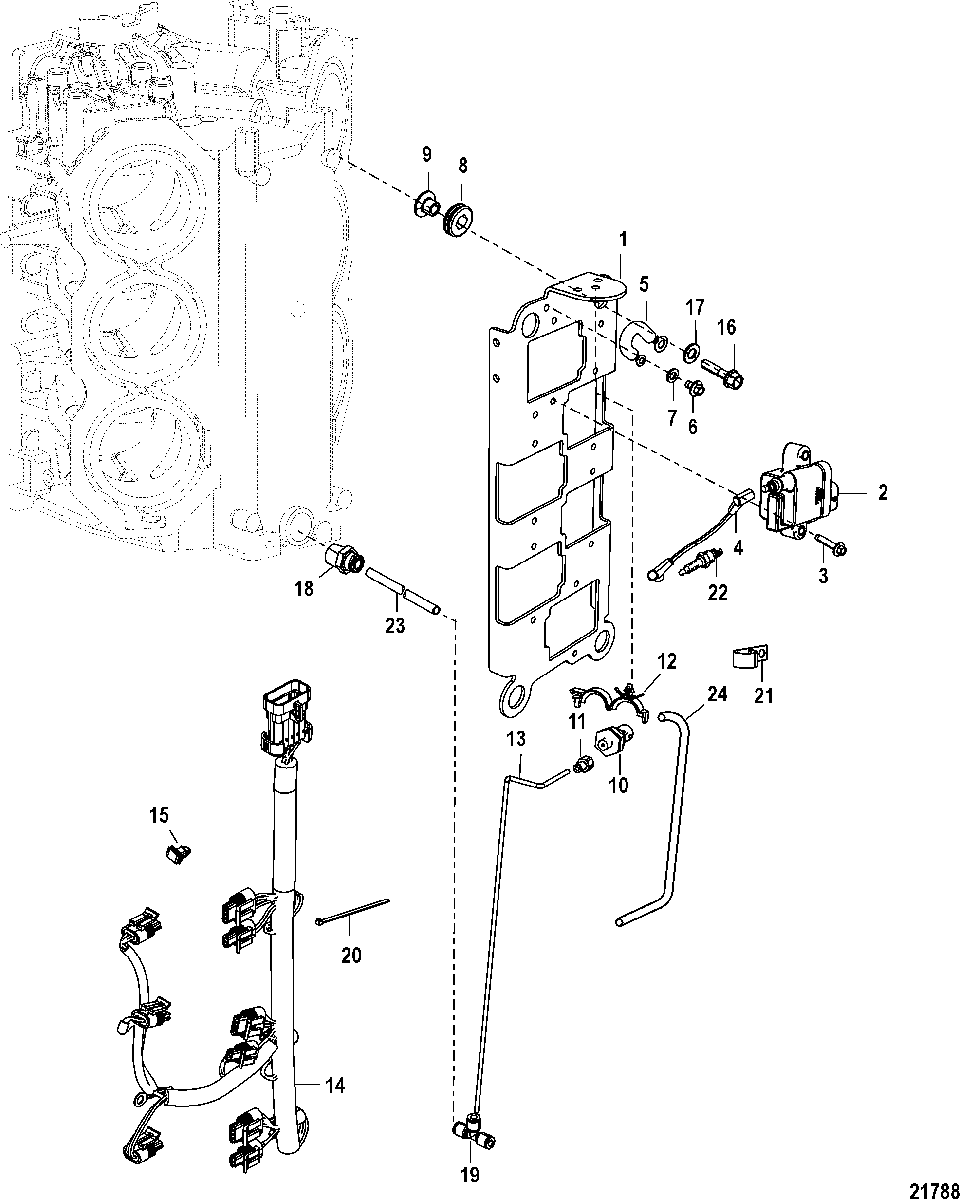

Coil Plate для Mercury - 225 PRO XS (3.0L DFI) 1B426561 THRU 1B752546

  • №
    Артикул
    Название
  • -
    NSS NOT SOLD SEPARATE, Coil Mounting Plate Assembly-Complete
    NOT SOLD SEPARATE, Coil Mounting Plate Assembly-Complete
  • 1
    884272T PLATE, Coil Mounting
    PLATE, Coil Mounting
  • 2
    300-8M0077471 COIL KIT
    COIL KIT
  • 3
    10-82129130 SCREW, (M6 x 30)
    SCREW, (M6 x 30)
  • 4
    84-881908T CABLE SET
    CABLE SET
  • 5
    84-858414A1 CABLE ASSEMBLY, Braided
    CABLE ASSEMBLY, Braided
  • 6
    10-82129110 SCREW, (M6 x 10)
    SCREW, (M6 x 10)
  • 7
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 8
    25-833155 GROMMET
    GROMMET
  • 9
    23-8502341 BUSHING
    BUSHING
  • 10
    881879T26 SENSOR ASSEMBLY, Pressure
    SENSOR ASSEMBLY, Pressure
  • 11
    22-892403 FITTING
    FITTING
  • 12
    54-883066 CLIP, (.865)
    CLIP, (.865)
  • 13
    32-85978571 TUBING, (52.00 Inches Bulk) (Cut to 18 Inches)
    TUBING, (52.00 Inches Bulk) (Cut to 18 Inches)
  • 14
    84-892972T05 HARNESS ASSEMBLY, Coil
    HARNESS ASSEMBLY, Coil
  • 15
    54-879962 CLIP
    CLIP
  • 16
    10-81893435 SCREW, (M8 x 35)
    SCREW, (M8 x 35)
  • 17
    12-4002318 WASHER
    WASHER
  • 18
    22-881866 FITTING
    FITTING
  • 19
    22-875207 TEE, Fitting
    TEE, Fitting
  • 20
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 21
    54-65292 J CLIP
    J CLIP
  • 22
    33-843220Q SPARK PLUG
    SPARK PLUG
  • 23
    32-85978571 TUBING, (52.00 Inches Bulk) (Cut to 5 Inches)
    TUBING, (52.00 Inches Bulk) (Cut to 5 Inches)
  • 24
    32-85944975 TUBING, (72.00 Inches Bulk) (Cut to 52 Inches)
    TUBING, (72.00 Inches Bulk) (Cut to 52 Inches)
