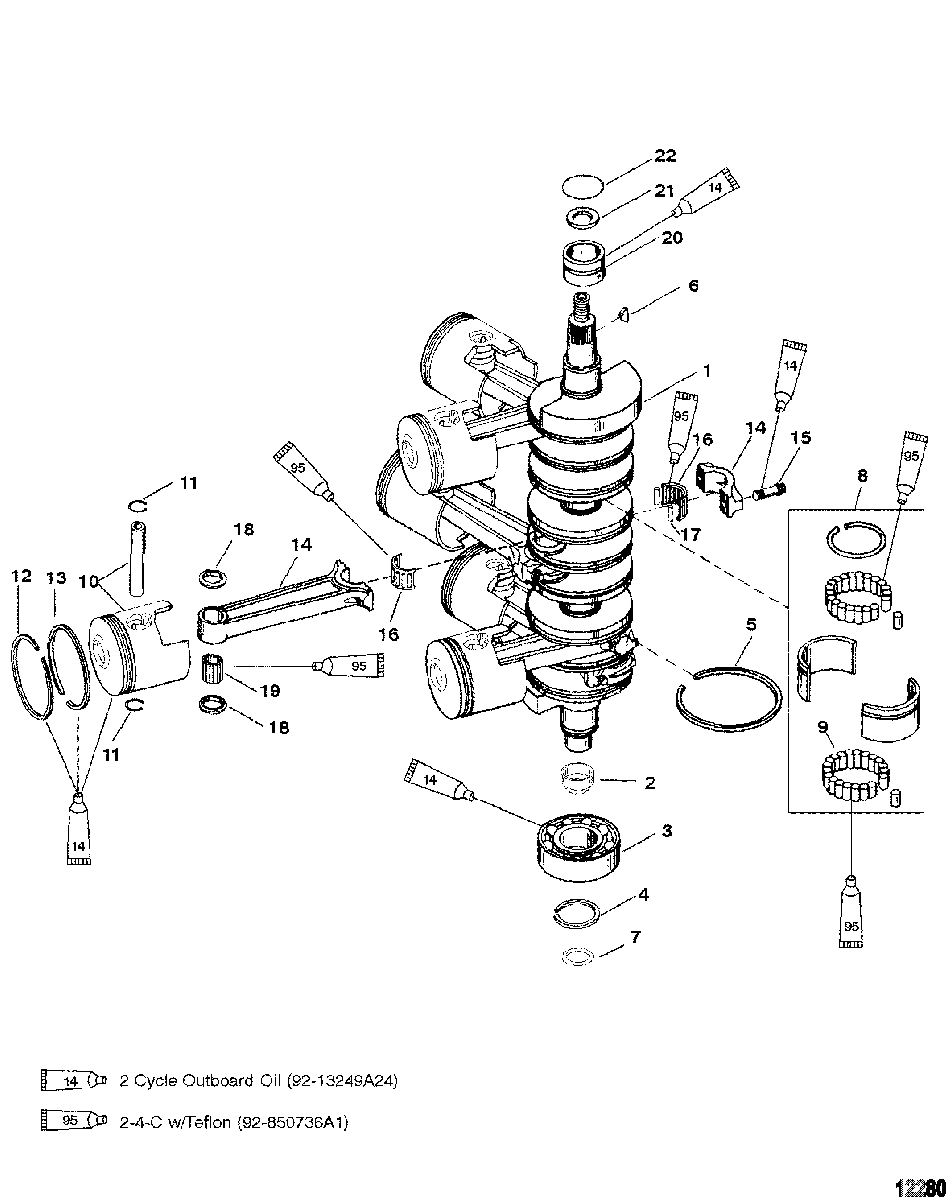

Crankshaft, Pistons And Connecting Rods для Mercury - 225 (DFI) 0G960500 THRU 0T178499

  • №
    Артикул
    Название
  • 1
    482-9784A11 CRANKSHAFT
    CRANKSHAFT
  • 2
    NSS NOT SOLD SEPARATE, Wear Sleeve
    NOT SOLD SEPARATE, Wear Sleeve
  • 3
    30-67923T BEARING, Ball, Lower
    BEARING, Ball, Lower
  • 4
    53-67446 RING
    RING
  • 5
    39-843198T01 RING
    RING
  • 6
    28-91800 KEY, Woodruff
    KEY, Woodruff
  • 7
    25-35126 O-RING, (.859 x .139)
    O-RING, (.859 x .139)
  • 8
    8M0113288 RACE ASSEMBLY, Bearing
    RACE ASSEMBLY, Bearing
  • 9
    NSS NOT SOLD SEPARATE, Needle Roller
    NOT SOLD SEPARATE, Needle Roller
  • 10
    2720-859297T2 PISTON
    (Starboard - Standard)
    PISTON
    (Starboard - Standard)
  • 10
    2720-859444A2 PISTON ASSEMBLY
    (Starboard - .015 Oversize)
    PISTON ASSEMBLY
    (Starboard - .015 Oversize)
  • 10
    2720-859446A2 PISTON ASSEMBLY
    (Starboard - .030 Oversize)
    PISTON ASSEMBLY
    (Starboard - .030 Oversize)
  • 10
    2720-859296T2 PISTON
    (Port - Standard)
    PISTON
    (Port - Standard)
  • 10
    2720-859443A2 PISTON ASSEMBLY
    (Port - .015 Oversize)
    PISTON ASSEMBLY
    (Port - .015 Oversize)
  • 10
    2720-859445A2 PISTON ASSEMBLY
    (Port - .030 Oversize)
    PISTON ASSEMBLY
    (Port - .030 Oversize)
  • 11
    53-8320811 LOCK RING
    LOCK RING
  • 12
    39-858772A12 RING SET, Piston
    (Standard)
    RING SET, Piston
    (Standard)
  • 12
    39-875252A12 RING SET, Piston
    (.015 Oversize)
    RING SET, Piston
    (.015 Oversize)
  • 12
    39-875257A12 RING SET, Piston
    (.030 Oversize)
    RING SET, Piston
    (.030 Oversize)
  • 13
    NSS NOT SOLD SEPARATE, Piston Ring, Lower
    NOT SOLD SEPARATE, Piston Ring, Lower
  • 14
    600-8M0125869 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 15
    10-94320 SCREW, (.375-24 x 1.250)
    SCREW, (.375-24 x 1.250)
  • 16
    31-844338A01 BEARING/CAGE KIT
    BEARING/CAGE KIT
  • 17
    NSS NOT SOLD SEPARATE, Needle Rolling Bearing
    NOT SOLD SEPARATE, Needle Rolling Bearing
  • 18
    12-88263 THRUST WASHER
    THRUST WASHER
  • 19
    29-88258001 NEEDLE, Roller Bearing
    NEEDLE, Roller Bearing
  • 20
    31-816773A2 BEARING ASSEMBLY, Upper
    BEARING ASSEMBLY, Upper
  • 21
    26-859093 SEAL
    SEAL
  • 22
    25-823683 O-RING, (1.989 x .070)
    O-RING, (1.989 x .070)
  • -
    854198R00 POWERHEAD ASSEMBLY
    (200)
    POWERHEAD ASSEMBLY
    (200)
  • -
    854199R00 POWERHEAD ASSEMBLY
    (225) (Cylinder Heads Have No Casting Number)
    POWERHEAD ASSEMBLY
    (225) (Cylinder Heads Have No Casting Number)
  • -
    877869R00 POWERHEAD ASSEMBLY
    (225) (Cylinder Heads Casting Number 900-858485C1/C2 Or 900-858483C1/C2)
    POWERHEAD ASSEMBLY
    (225) (Cylinder Heads Casting Number 900-858485C1/C2 Or 900-858483C1/C2)
  • -
    27-832934A00 GASKET SET, Powerhead
    GASKET SET, Powerhead
