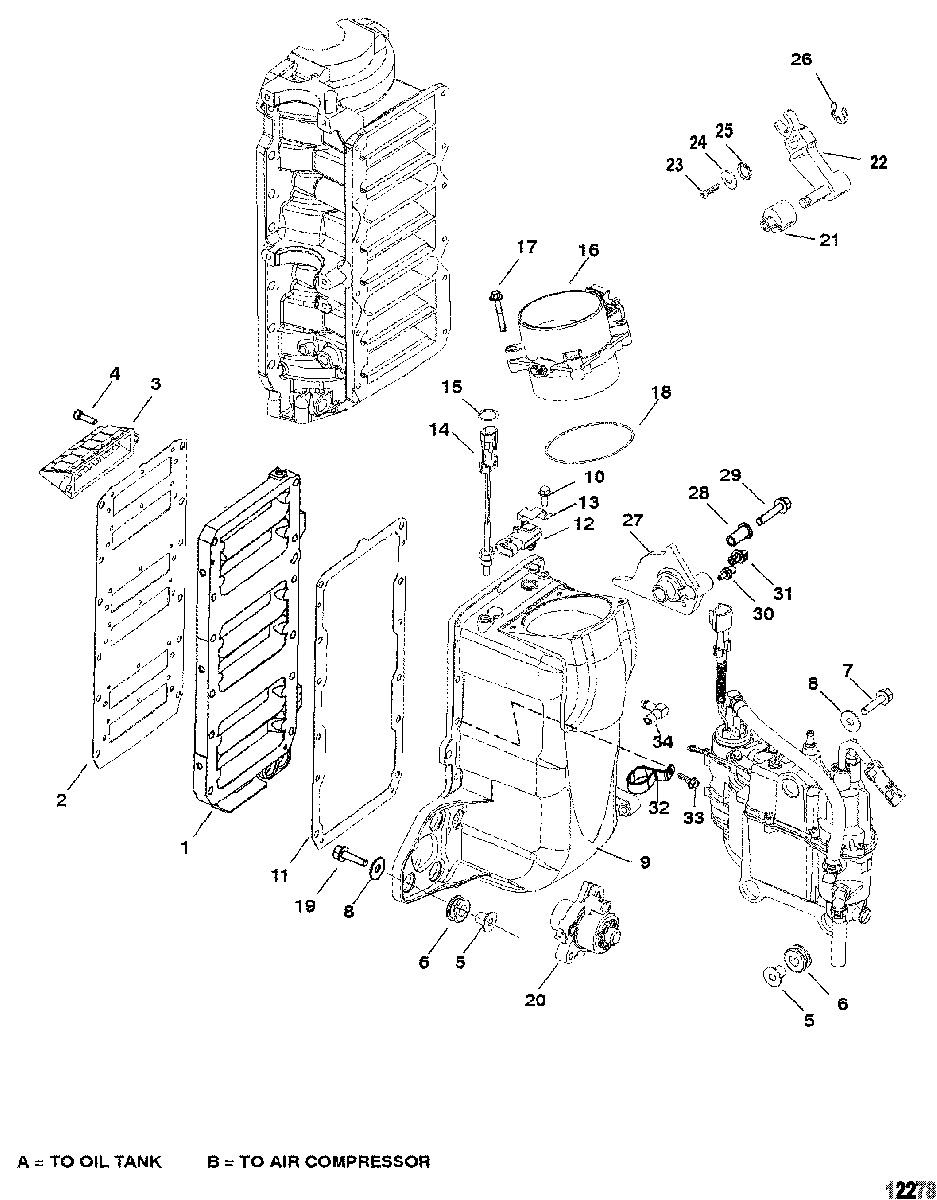

Air Handler Components для Mercury - 225 (DFI) 0G960500 THRU 0T178499

  • №
    Артикул
    Название
  • -
    858539T1 AIR HANDLER ASSEMBLY
    AIR HANDLER ASSEMBLY
  • 1
    858541T1 ADAPTOR PLATE
    ADAPTOR PLATE
  • 2
    27-804680 GASKET
    GASKET
  • 3
    828623T6 REED BLOCK
    REED BLOCK
  • 4
    10-8555252 SCREW, (M6)
    SCREW, (M6)
  • 5
    23-855364 BUSHING
    BUSHING
  • 6
    25-855362001 GROMMET
    GROMMET
  • 7
    10-81893435 SCREW, (M8 x 35)
    SCREW, (M8 x 35)
  • 8
    12-817274 WASHER, (.344 x 1.00 x .063) Stainless Steel
    WASHER, (.344 x 1.00 x .063) Stainless Steel
  • 9
    855631A2 PLENUM KIT, Air
    PLENUM KIT, Air
  • 10
    10-1993716 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 11
    27-804679004 GASKET
    GASKET
  • 12
    854445 SENSOR, MAP
    SENSOR, MAP
  • 13
    884522 BRACKET
    BRACKET
  • 14
    889575 SENSOR ASSEMBLY, Temperature
    SENSOR ASSEMBLY, Temperature
  • 15
    25-627021 O-RING, (.301 x .070)
    O-RING, (.301 x .070)
  • 16
    841194T04 THROTTLE BODY KIT
    THROTTLE BODY KIT
  • 17
    10-82130040 SCREW, (M6 x 40)
    SCREW, (M6 x 40)
  • 18
    25-855426 O-RING
    O-RING
  • 19
    10-81893430 SCREW, (M8 x 30)
    SCREW, (M8 x 30)
  • 20
    8M0128080 PUMP ASSEMBLY, Oil
    PUMP ASSEMBLY, Oil
  • 21
    67748 ROLLER
    ROLLER
  • 22
    858851A03 LEVER ASSEMBLY, Throttle
    LEVER ASSEMBLY, Throttle
  • 23
    10-40056107 SCREW, (M5 x 16)
    SCREW, (M5 x 16)
  • 24
    12-89302 WASHER, (.203 x .406 x .040)
    WASHER, (.203 x .406 x .040)
  • 25
    13-69432 LOCKWASHER, External (#10)
    LOCKWASHER, External (#10)
  • 26
    53-8237951 RING, Retaining
    RING, Retaining
  • 27
    858353A2 CAM ASSEMBLY
    CAM ASSEMBLY
  • 28
    23-856895 BUSHING
    BUSHING
  • 29
    10-81893440 SCREW, (M8 x 40)
    SCREW, (M8 x 40)
  • 30
    8235694 BALL, Threaded
    BALL, Threaded
  • 31
    23-932481 BUSHING
    BUSHING
  • 32
    54-804842 CLAMP
    CLAMP
  • 33
    10-82130040 SCREW, (M6 x 40)
    SCREW, (M6 x 40)
  • 34
    22-856827 FITTING
    FITTING
  • -
    854198R00 POWERHEAD ASSEMBLY
    (200)
    POWERHEAD ASSEMBLY
    (200)
  • -
    854199R00 POWERHEAD ASSEMBLY
    (225) (Cylinder Heads Have No Casting Number)
    POWERHEAD ASSEMBLY
    (225) (Cylinder Heads Have No Casting Number)
  • -
    877869R00 POWERHEAD ASSEMBLY
    (225) (Cylinder Heads Casting Number 900-858485C/C2 Or 900-858483C1/C2)
    POWERHEAD ASSEMBLY
    (225) (Cylinder Heads Casting Number 900-858485C/C2 Or 900-858483C1/C2)
  • -
    27-832934A00 GASKET SET, Powerhead
    GASKET SET, Powerhead
