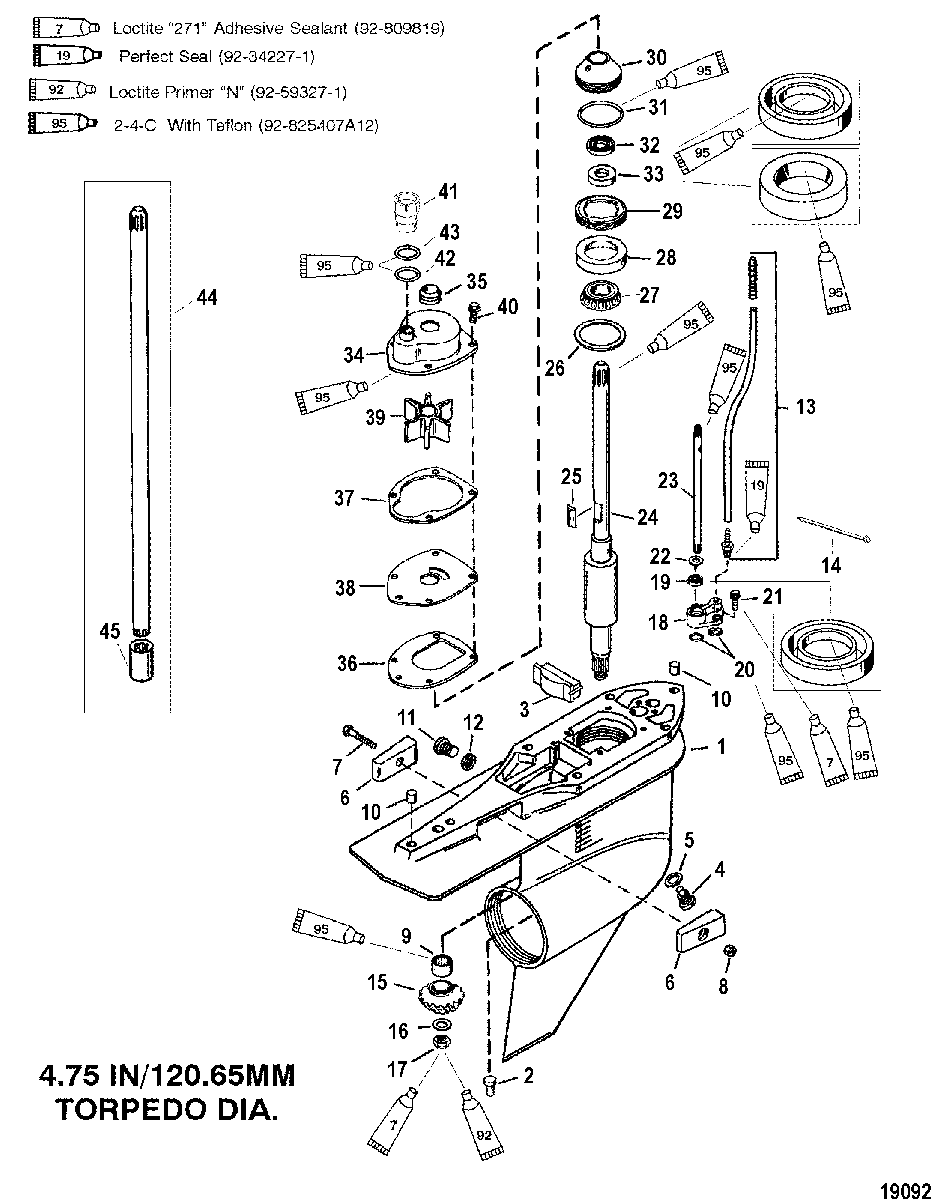

Gear Housing, Driveshaft - Standard Rotation для Mercury - 225 (DFI) 0G760300 THRU 0G960499
-
№АртикулНазвание
-
11623-859399T18 GEAR HOUSING ASSEMBLY
(BASIC-BLACK)GEAR HOUSING ASSEMBLY
(BASIC-BLACK) -
217-379721 PINPIN
-
3821526001 FILLER BLOCKFILLER BLOCK
-
422-8M0058389 FITTING KIT, Magnetic, Plug Fill/DrainFITTING KIT, Magnetic, Plug Fill/Drain
-
512-191833 WASHER, FiberWASHER, Fiber
-
697-826134Q ANODEANODE
-
710-4000333 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
811-401386 NUT, (M6)NUT, (M6)
-
931-42647A1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
1017-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
1110-79953Q04 SCREW KIT, (.375-16 x .250)SCREW KIT, (.375-16 x .250)
-
1212-191833 WASHER, FiberWASHER, Fiber
-
1322-85822A10 CONNECTOR ASSEMBLY
(LONG/X-LONG)CONNECTOR ASSEMBLY
(LONG/X-LONG) -
1322-85822A6 CONNECTOR
(XX-LONG)CONNECTOR
(XX-LONG) -
1456762 TIE STRAP, (4.00 Inches)TIE STRAP, (4.00 Inches)
-
15NSS NOT SOLD SEPARATE, Pinion Gear (Part of 43-828168A2)
(1.75:1 - 12/21)NOT SOLD SEPARATE, Pinion Gear (Part of 43-828168A2)
(1.75:1 - 12/21) -
1612-92721 WASHERWASHER
-
1711-35921 NUT, (.625-18)NUT, (.625-18)
-
1823-815921A4 BUSHING ASSEMBLYBUSHING ASSEMBLY
-
1926-8164641 SEAL, OilSEAL, Oil
-
2025-36318 O-RING, (.799)O-RING, (.799)
-
2110-1993716 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
2212-77674 WASHERWASHER
-
23824145 SHIFT SHAFT (LOWER)SHIFT SHAFT (LOWER)
-
2445-8M0140442 DRIVESHAFT (LOWER)DRIVESHAFT (LOWER)
-
2528-8M0032833 KEYKEY
-
2615-8M0063267 SHIM SETSHIM SET
-
2731-36387A1 BEARING, RollerBEARING, Roller
-
28NSS NOT SOLD SEPARATE, CupNOT SOLD SEPARATE, Cup
-
298245191 RETAINERRETAINER
-
30807929A1 CARRIER ASSEMBLYCARRIER ASSEMBLY
-
3125-896523 O-RING, (2.175 x .175)O-RING, (2.175 x .175)
-
3226-66302 SEAL, OilSEAL, Oil
-
3326-66302 SEAL, OilSEAL, Oil
-
34817275A1 PUMP ASSEMBLY, WaterPUMP ASSEMBLY, Water
-
3526-816575A2 SEAL KITSEAL KIT
-
3627-430331 GASKETGASKET
-
3727-8172771 GASKETGASKET
-
388172761 FACEPLATEFACEPLATE
-
3947-43026T2 IMPELLERIMPELLER
-
4010-1993716 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
41832942A1 COUPLING ASSEMBLYCOUPLING ASSEMBLY
-
4225-21836 O-RING, (.796 x .139)O-RING, (.796 x .139)
-
4325-35027 O-RING, (1.046)O-RING, (1.046)
-
4445-827754A1 EXTENSION KIT, Driveshaft
(LONG-20 IN.) SEE NOTEEXTENSION KIT, Driveshaft
(LONG-20 IN.) SEE NOTE -
4445-827755A1 EXTENSION KIT, Driveshaft
(X-LONG-25 IN.) SEE NOTEEXTENSION KIT, Driveshaft
(X-LONG-25 IN.) SEE NOTE -
4445-826353A1 EXTENSION KIT, Driveshaft
(XX-LONG-30 IN.) SEE NOTEEXTENSION KIT, Driveshaft
(XX-LONG-30 IN.) SEE NOTE -
45823902 COUPLINGCOUPLING
-
-26-816575A4 SEAL KIT, Gear HousingSEAL KIT, Gear Housing
-
-817275A5 REBUILD KIT, Water PumpREBUILD KIT, Water Pump
-
-47-8M0100526 REPAIR KIT, Water Pump ImpellerREPAIR KIT, Water Pump Impeller
