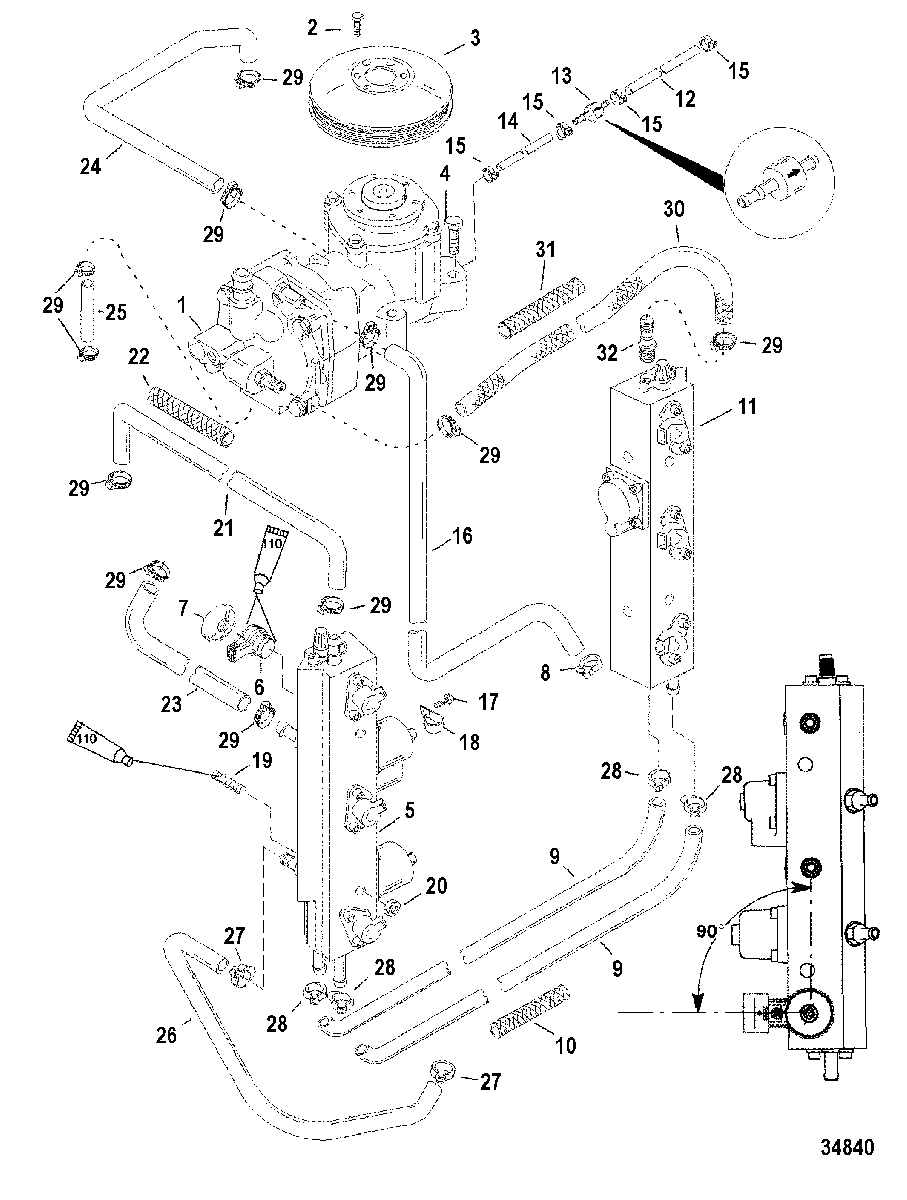

Fuel Rails для Mercury - 225 (DFI) 0G760300 THRU 0G960499

  • №
    Артикул
    Название
  • 1
    8M0133589 COMPRESSOR ASSEMBLY, Air
    SN# 0G911719 & Below
    COMPRESSOR ASSEMBLY, Air
    SN# 0G911719 & Below
  • 1
    8M0133589 COMPRESSOR ASSEMBLY, Air
    SN# 0G911720 & Up
    COMPRESSOR ASSEMBLY, Air
    SN# 0G911720 & Up
  • 2
    10-85593912 SCREW, (M6 x 12)
    SCREW, (M6 x 12)
  • 3
    8328233 PULLEY
    PULLEY
  • 4
    10-81893450 SCREW, (M8 x 50)
    SCREW, (M8 x 50)
  • 5
    852394T5 FUEL RAIL (PORT)
    FUEL RAIL (PORT)
  • 6
    8M6001743 INJECTOR
    INJECTOR
  • 7
    12-828694A1 WASHER ASSEMBLY, Cupped
    WASHER ASSEMBLY, Cupped
  • 8
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 9
    32-8M0064785 HOSE, FUEL/AIR BALANCE
    HOSE, FUEL/AIR BALANCE
  • 10
    23-85686953 SLEEVE, (27.00 Inches Bulk)
    SLEEVE, (27.00 Inches Bulk)
  • 11
    852395T5 FUEL RAIL (STARBOARD)
    FUEL RAIL (STARBOARD)
  • 12
    32-8M0108355 HOSE, (57.00 Inches Bulk) (4-1/2 IN.) To Air Handler
    HOSE, (57.00 Inches Bulk) (4-1/2 IN.) To Air Handler
  • 13
    21-826810 CHECK VALVE
    CHECK VALVE
  • 14
    32-85682931 TUBING (9 IN.)
    TUBING (9 IN.)
  • 15
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 16
    32-856839 TUBING, To Tell Tale
    TUBING, To Tell Tale
  • 17
    10-82104510 SCREW, (M5 x 10)
    SCREW, (M5 x 10)
  • 18
    54-46997 CLAMP
    CLAMP
  • 19
    16-8M0063255 STUD, (M10 x 91)
    STUD, (M10 x 91)
  • 20
    11-826292 NUT, (M10) Brass/Nickel Plated
    NUT, (M10) Brass/Nickel Plated
  • 21
    32-8M0064781 HOSE, Fuel Supply - To Vapor Separator
    HOSE, Fuel Supply - To Vapor Separator
  • 22
    23-85686953 SLEEVE, (27.00 Inches Bulk)
    SLEEVE, (27.00 Inches Bulk)
  • 23
    32-85466755 HOSE (2 IN.) Fuel Return - To Fuel Cooler
    HOSE (2 IN.) Fuel Return - To Fuel Cooler
  • 24
    32-8568201 HOSE, To Strainer in top of Block
    SN# 0G911719 & Below
    HOSE, To Strainer in top of Block
    SN# 0G911719 & Below
  • 25
    32-85833939 TUBING, (15.00 Inches Bulk), To Fuel Cooler
    SN# 0G911720 & Up
    TUBING, (15.00 Inches Bulk), To Fuel Cooler
    SN# 0G911720 & Up
  • 26
    32-856952 TUBING, Air Dump - To Adaptor Plate
    TUBING, Air Dump - To Adaptor Plate
  • 27
    54-850241 CLAMP (14.0)
    CLAMP (14.0)
  • 28
    54-855697 CLAMP
    CLAMP
  • 29
    54-856880 CLAMP, Hose (15.3)
    CLAMP, Hose (15.3)
  • 30
    32-8567631 HOSE ASSEMBLY
    HOSE ASSEMBLY
  • 31
    23-85687631 SLEEVE, (16.00 Inches)
    SLEEVE, (16.00 Inches)
  • 32
    22-8567411 FITTING
    FITTING
  • -
    854198R99 POWERHEAD ASSEMBLY
    (200)
    POWERHEAD ASSEMBLY
    (200)
  • -
    854199A99 POWERHEAD ASSEMBLY
    (225)
    POWERHEAD ASSEMBLY
    (225)
