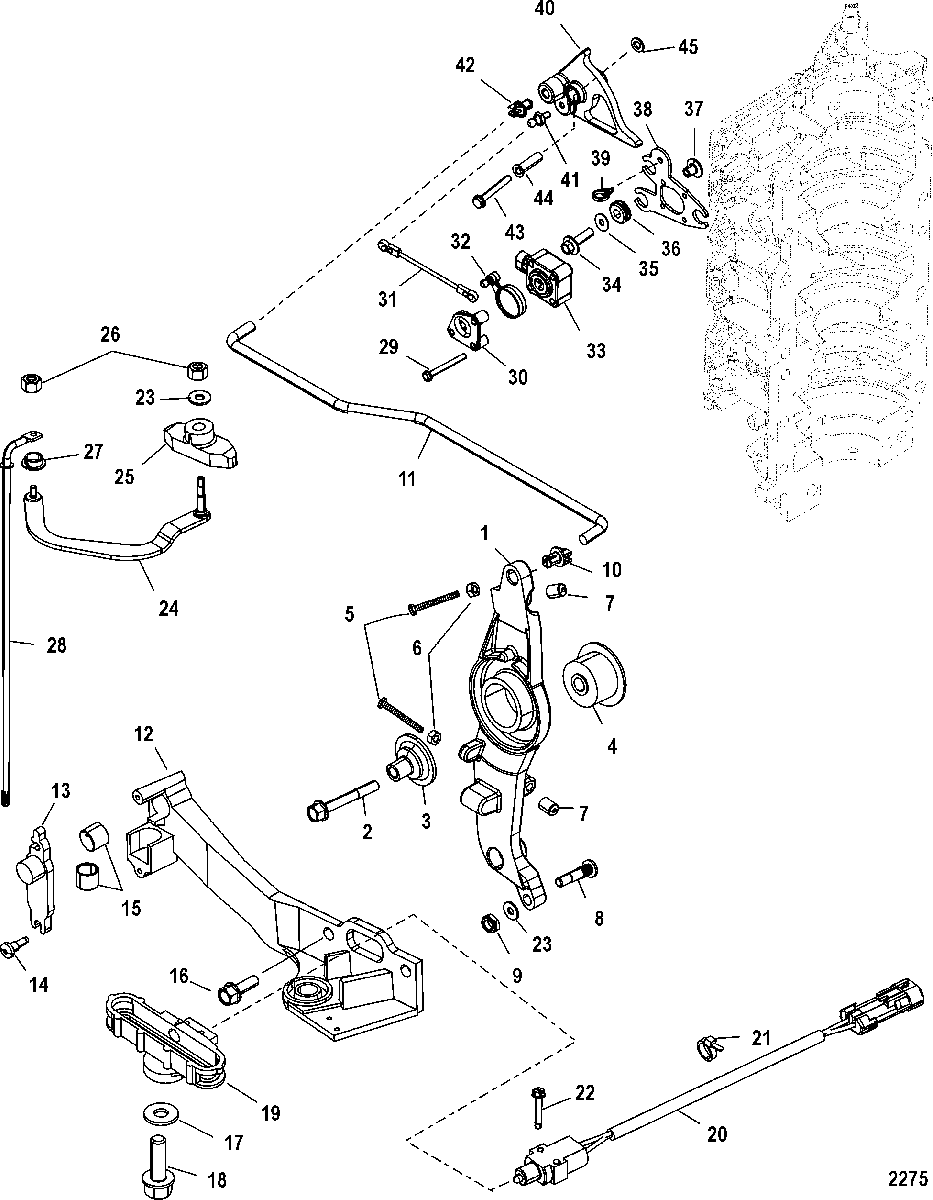

Throttle Linkage для Mercury - 225 (DFI) 3.0L 0T801000 THRU 1B417701

  • №
    Артикул
    Название
  • 1
    8M0040987 LEVER
    LEVER
  • 2
    10-81893460 SCREW, (M8 x 60)
    SCREW, (M8 x 60)
  • 3
    23-887605 BUSHING
    BUSHING
  • 4
    23-821113 BUSHING
    BUSHING
  • 5
    10-40124 SCREW, (M6 x 55)
    SCREW, (M6 x 55)
  • 6
    11-400212 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 7
    42942 CAP
    CAP
  • 8
    42927 INSERT
    INSERT
  • 9
    11-401386 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 10
    23-932481 BUSHING
    BUSHING
  • 11
    884834 LINK
    LINK
  • 12
    824010T05 BRACKET, Anchor
    BRACKET, Anchor
  • 13
    824016 LATCH
    LATCH
  • 14
    10-42975 DRIVE SCREW
    DRIVE SCREW
  • 15
    824015 CUP, Barrel Retainer
    CUP, Barrel Retainer
  • 16
    10-82155025 SCREW, (M8 x 25) Stainless Steel
    SCREW, (M8 x 25) Stainless Steel
  • 17
    12-43430 WASHER
    WASHER
  • 18
    10-82155025 SCREW, (M8 x 25) Stainless Steel
    SCREW, (M8 x 25) Stainless Steel
  • 19
    8M0039052 GUIDE, Roller
    SN# 0T979999 & Below
    GUIDE, Roller
    SN# 0T979999 & Below
  • 19
    8M0039052 BRACKET, Slide
    SN# 0T980000 & Up
    BRACKET, Slide
    SN# 0T980000 & Up
  • 20
    87-8M0052939 SWITCH
    SWITCH
  • 21
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 22
    10-82470620 SCREW, (M3.5 x 20)
    SCREW, (M3.5 x 20)
  • 23
    12-35459 WASHER
    WASHER
  • 24
    883142A03 SHIFT LINK
    SN# 0T979999 & Below
    SHIFT LINK
    SN# 0T979999 & Below
  • 24
    883142A03 SHIFT LINK KIT
    SN# 0T980000 & Up
    SHIFT LINK KIT
    SN# 0T980000 & Up
  • 25
    8539683 SLIDE
    SLIDE
  • 26
    11-401386 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 27
    23-42994 BUSHING
    BUSHING
  • 28
    8M0036408 SHIFT SHAFT, Upper
    (LONG)
    SHIFT SHAFT, Upper
    (LONG)
  • 28
    8M0046246 SHIFT SHAFT, Upper
    (X-LONG)
    SHIFT SHAFT, Upper
    (X-LONG)
  • 28
    8240703 SHIFT SHAFT, Upper
    (XX-LONG)
    SHIFT SHAFT, Upper
    (XX-LONG)
  • 29
    10-40011113 SCREW, (M5 x 45) Stainless Steel
    SCREW, (M5 x 45) Stainless Steel
  • 30
    8582261 COVER, TPS
    COVER, TPS
  • 31
    8M0008111 LINK, TPI
    LINK, TPI
  • 32
    883081 LEVER
    LEVER
  • 33
    8M6005165 INDICATOR, Throttle Position
    INDICATOR, Throttle Position
  • 34
    10-82130025 SCREW, (M6 x 25) (M6 x 25)
    SCREW, (M6 x 25) (M6 x 25)
  • 35
    12-65567 WASHER, (.265 x .750 x .048) Stainless Steel
    WASHER, (.265 x .750 x .048) Stainless Steel
  • 36
    25-834985 GROMMET
    GROMMET
  • 37
    23-856954 BUSHING
    BUSHING
  • 38
    8544862 BRACKET
    BRACKET
  • 39
    54-858932 CLIP
    CLIP
  • 40
    858353T5 CAM ASSEMBLY
    CAM ASSEMBLY
  • 41
    8235694 BALL, Threaded
    BALL, Threaded
  • 42
    23-932481 BUSHING
    BUSHING
  • 43
    10-40011155 SCREW, (M8 x 55) Stainless Steel
    SCREW, (M8 x 55) Stainless Steel
  • 44
    23-8807371 BUSHING
    BUSHING
  • 45
    12-56720 WASHER, (.330 x .750 x .060) Stainless Steel
    WASHER, (.330 x .750 x .060) Stainless Steel
