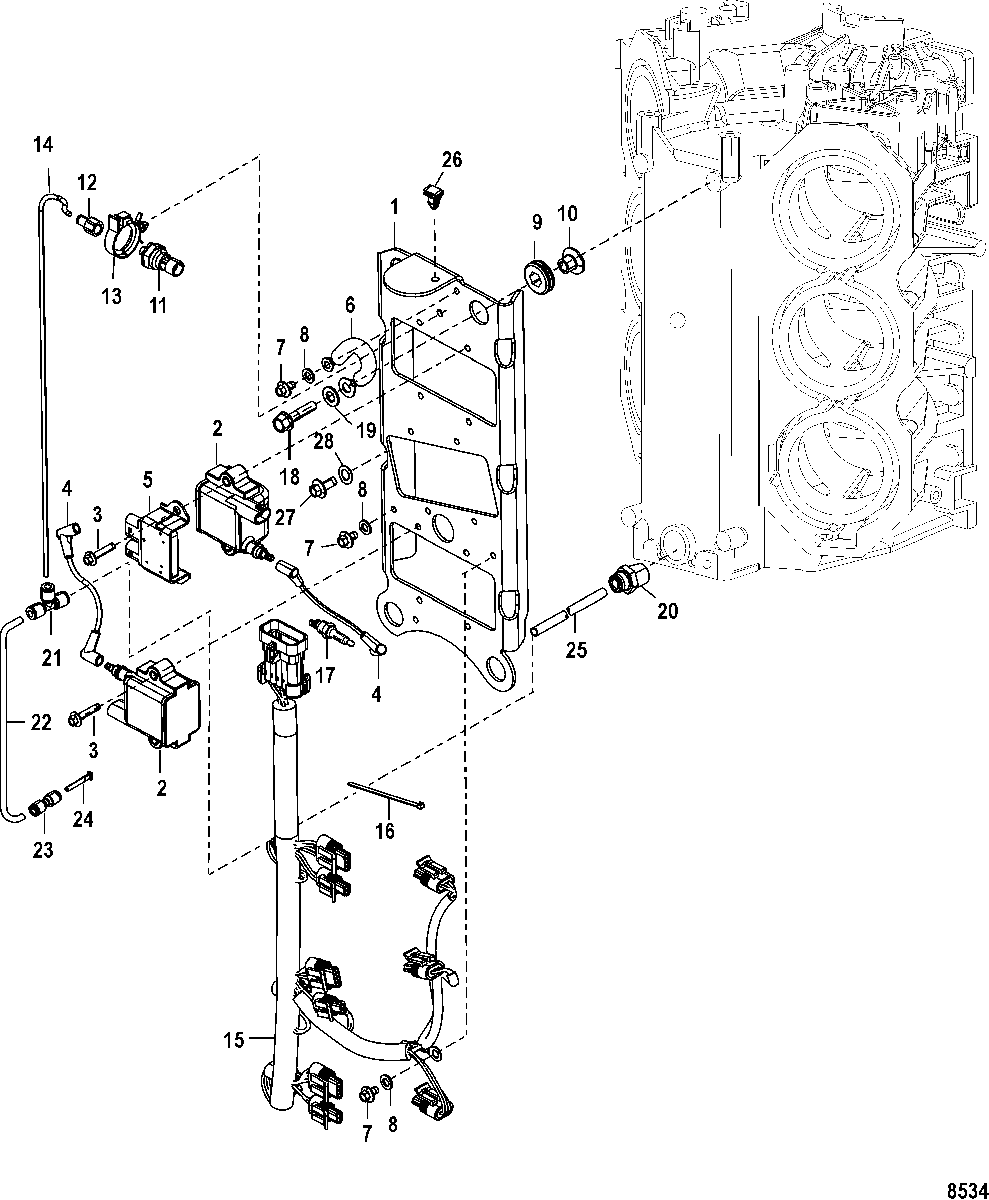

Coil Plate(Serial Number 1B227000 & Up) для Mercury - 225 (DFI) 3.0L 0T801000 THRU 1B417701
-
№АртикулНазвание
-
-NSS NOT SOLD SEPARATE, Coil Mounting Plate-CompleteNOT SOLD SEPARATE, Coil Mounting Plate-Complete
-
1850295T4 PLATEPLATE
-
2339-856991A1 COIL KITCOIL KIT
-
310-82129130 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
484-881908T CABLE SETCABLE SET
-
5859595T DRIVER, Dual CoilDRIVER, Dual Coil
-
684-858414A1 CABLE ASSEMBLY, BraidedCABLE ASSEMBLY, Braided
-
710-82129110 SCREW, (M6 x 10)SCREW, (M6 x 10)
-
812-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
925-833155 GROMMETGROMMET
-
1023-8502341 BUSHINGBUSHING
-
11881879A7 SENSOR KIT, (0-50 PSI)SENSOR KIT, (0-50 PSI)
-
1222-892403 FITTINGFITTING
-
1354-883066 CLIP, (.865)CLIP, (.865)
-
1432-85978571 TUBING, (52.00 Inches Bulk) (Cut to 18 Inches)TUBING, (52.00 Inches Bulk) (Cut to 18 Inches)
-
1584-892972T01 HARNESS ASSEMBLY, CoilHARNESS ASSEMBLY, Coil
-
1654-859671 TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1733-889597Q SPARK PLUGSPARK PLUG
-
1810-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
1912-4002318 WASHERWASHER
-
2022-881866 FITTINGFITTING
-
2122-875207 TEE, FittingTEE, Fitting
-
2232-85978571 TUBING, (52.00 Inches Bulk) (Cut to 44 Inches)TUBING, (52.00 Inches Bulk) (Cut to 44 Inches)
-
2322-859747 COUPLERCOUPLER
-
2422-859732 PLUGPLUG
-
2532-85978571 TUBING, (52.00 Inches Bulk) (Cut to 5 Inches)TUBING, (52.00 Inches Bulk) (Cut to 5 Inches)
-
2632-85944975 TUBING, (72.00 Inches Bulk) (Cut to 52 Inches)TUBING, (72.00 Inches Bulk) (Cut to 52 Inches)
-
2710-82129114 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
2812-36001 WASHERWASHER
