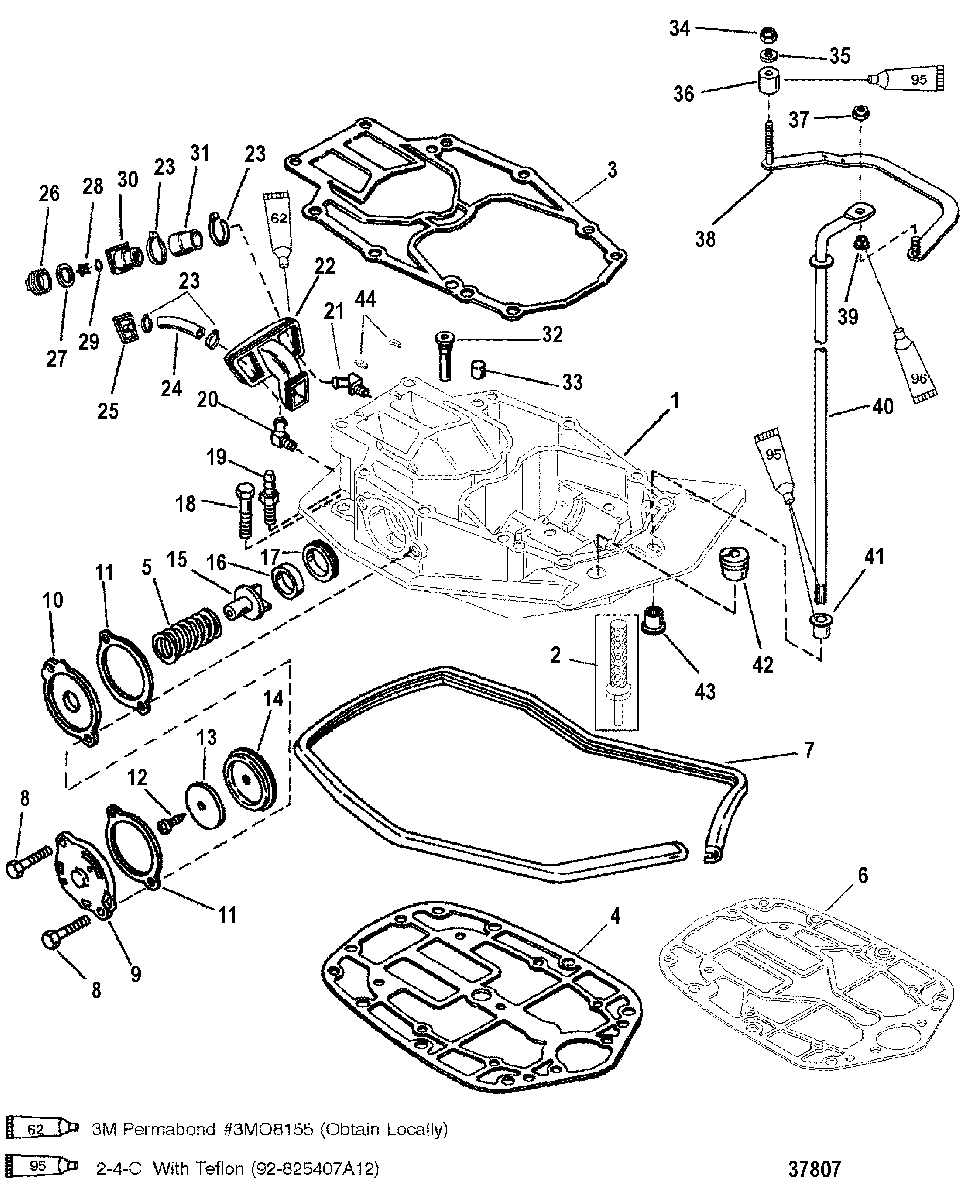

EXHAUST PLATE для Mercury - 225 (3.0L EFI) 0G129222 THRU 0G760299
-
№АртикулНазвание
-
1818450A2 PLATE ASSEMBLY, Exhaust
SN# 0G437999 & BelowPLATE ASSEMBLY, Exhaust
SN# 0G437999 & Below -
1832935A1 PLATE ASSEMBLY, Exhaust
SN# 0G438000 & UpPLATE ASSEMBLY, Exhaust
SN# 0G438000 & Up -
2832994 STRAINER
SN# 0G437999 & BelowSTRAINER
SN# 0G437999 & Below -
327-8139322 GASKET
SN# 0G437999 & BelowGASKET
SN# 0G437999 & Below -
327-832933006 GASKET
SN# 0G438000 & UpGASKET
SN# 0G438000 & Up -
427-823988 GASKET (LOWER)
SN# 0G437999 & BelowGASKET (LOWER)
SN# 0G437999 & Below -
524-64878 SPRING
SN# 0G437999 & BelowSPRING
SN# 0G437999 & Below -
524-854478 SPRING
SN# 0G438000 THRU 0G693841SPRING
SN# 0G438000 THRU 0G693841 -
524-64878 SPRING
SN# 0G693842 & UpSPRING
SN# 0G693842 & Up -
627-832934006 GASKET (LOWER)
Included with 832935A1 Exhaust Plate SN# 0G438000 & UpGASKET (LOWER)
Included with 832935A1 Exhaust Plate SN# 0G438000 & Up -
78M0043157 SEALSEAL
-
810-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
965663A2 COVERCOVER
-
1065664A1 PLATE ASSEMBLYPLATE ASSEMBLY
-
1127-88907003 GASKETGASKET
-
1210-69570 SCREW, (#10-16 x .750)SCREW, (#10-16 x .750)
-
1312-76451 WASHERWASHER
-
14648771 DIAPHRAGMDIAPHRAGM
-
15814189 POPPETPOPPET
-
1625-814191 GROMMETGROMMET
-
17814190 CARRIERCARRIER
-
1810-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
1922-34982 CONNECTORCONNECTOR
-
2022-782792 ELBOW (45 DEGREES)ELBOW (45 DEGREES)
-
2122-821975 ELBOW, 45 DegreeELBOW, 45 Degree
-
22821255 BOOT, Idle ExhaustBOOT, Idle Exhaust
-
2354-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2432-8M0108355 HOSE, (57.00 Inches Bulk) (2-1/2 IN.)HOSE, (57.00 Inches Bulk) (2-1/2 IN.)
-
2522-8M0077650 FITTING, Tell-TaleFITTING, Tell-Tale
-
2619-821908 PLUGPLUG
-
2712-821915 WASHERWASHER
-
288219631 CHECK VALVECHECK VALVE
-
2925-30641 O-RING, (.299 x .103)O-RING, (.299 x .103)
-
3022-821952 FITTINGFITTING
-
3132-821976 HOSEHOSE
-
3221-817519A1 CHECK VALVE ASSEMBLY, DrainCHECK VALVE ASSEMBLY, Drain
-
3317-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
3411-401386 NUT, (M6)NUT, (M6)
-
3512-35459 WASHERWASHER
-
36824012 ROLLERROLLER
-
3711-401386 NUT, (M6)NUT, (M6)
-
38883142A03 SHIFT LINKSHIFT LINK
-
3923-42994 BUSHINGBUSHING
-
408M0036408 SHIFT SHAFT, Upper
LONGSHIFT SHAFT, Upper
LONG -
408M0046246 SHIFT SHAFT, Upper
X-LONGSHIFT SHAFT, Upper
X-LONG -
408240703 SHIFT SHAFT, Upper
XX-LONGSHIFT SHAFT, Upper
XX-LONG -
4123-48237 BUSHINGBUSHING
-
4225-19565002 GROMMETGROMMET
-
4343585 COUPLINGCOUPLING
-
4419-828808 PLUG
SN# 0G178947 & BelowPLUG
SN# 0G178947 & Below -
-27-814195A93 GASKET SETGASKET SET
-
-809794R97 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
