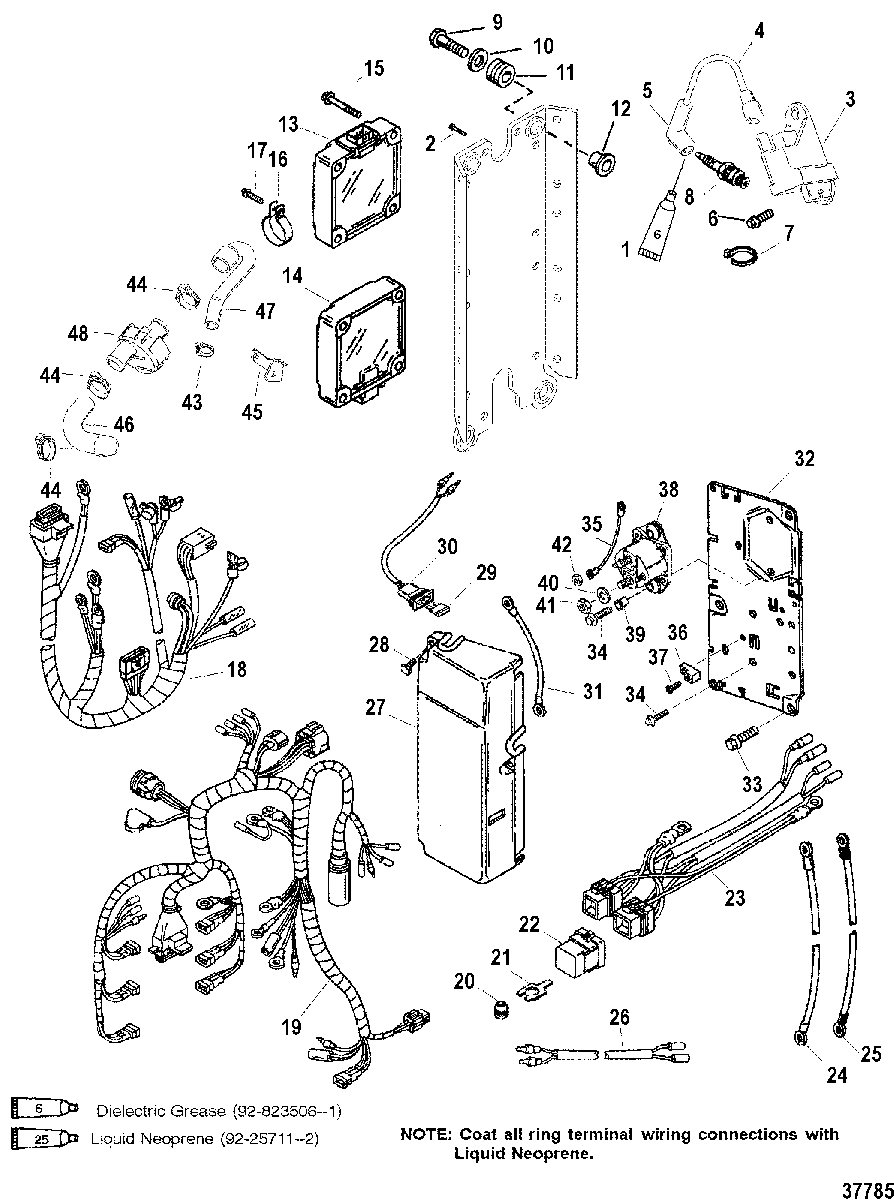

ELECTRICAL COMPONENTS(S/N-0G303046 AND UP) для Mercury - 225 (3.0L EFI) 0G129222 THRU 0G760299
-
№АртикулНазвание
-
1825296T1 PLATE, Electrical MountingPLATE, Electrical Mounting
-
210-82129114 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
3827509T7 CDM ASSEMBLYCDM ASSEMBLY
-
484-813706A56 CABLE ASSEMBLY, Hi Tension (SET OF 6)CABLE ASSEMBLY, Hi Tension (SET OF 6)
-
484-821945A61 CABLE ASSEMBLY, Hi Tension (SINGLE CABLE)CABLE ASSEMBLY, Hi Tension (SINGLE CABLE)
-
585-63709A1 BOOT/TERMINAL KITBOOT/TERMINAL KIT
-
610-82129116 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
754-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
833-941 SPARK PLUGSPARK PLUG
-
910-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
1012-56720 WASHER, (.330 x .750 x .060) Stainless SteelWASHER, (.330 x .750 x .060) Stainless Steel
-
1125-825380001 GROMMETGROMMET
-
1223-19064 BUSHINGBUSHING
-
1383004414T ECU, Engine Control Unit
(CDI)(225) SN# 0G438000 & UpECU, Engine Control Unit
(CDI)(225) SN# 0G438000 & Up -
1383004415T ECU, Engine Control Unit
(CDI)(250) SN# 0G438000 & UpECU, Engine Control Unit
(CDI)(250) SN# 0G438000 & Up -
13830044T04 ECU, Engine Control Unit
(CDI)(225) SN# 0G437999 & BelowECU, Engine Control Unit
(CDI)(225) SN# 0G437999 & Below -
13830044T05 ECU, Engine Control Unit
(CDI)(250) SN# 0G437999 & BelowECU, Engine Control Unit
(CDI)(250) SN# 0G437999 & Below -
14830046T07 ECU, Engine Control Unit
(EFI)(225) SN# 0G485989 & UpECU, Engine Control Unit
(EFI)(225) SN# 0G485989 & Up -
14830046T08 ECU, Engine Control Unit
(EFI)(250) SN# 0G485989 & UpECU, Engine Control Unit
(EFI)(250) SN# 0G485989 & Up -
148300464 ECU, Engine Control Unit
(EFI)(225) SN# 0G438000 THRU 0G485988ECU, Engine Control Unit
(EFI)(225) SN# 0G438000 THRU 0G485988 -
14830046T05 ECU, Engine Control Unit
(EFI)(250) SN# 0G438000 THRU 0G485988ECU, Engine Control Unit
(EFI)(250) SN# 0G438000 THRU 0G485988 -
14830046T02 ECU, Engine Control Unit
(EFI)(225) SN# 0G437999 & BelowECU, Engine Control Unit
(EFI)(225) SN# 0G437999 & Below -
14830046T01 ECU, Engine Control Unit
(EFI)(250) SN# 0G437999 & BelowECU, Engine Control Unit
(EFI)(250) SN# 0G437999 & Below -
1510-82129145 SCREW, (M6 x 45)SCREW, (M6 x 45)
-
1654-826188 CLAMPCLAMP
-
1710-82104520 SCREW, (M5 x 20)SCREW, (M5 x 20)
-
1884-825763A5 HARNESS ASSEMBLY (EFI)HARNESS ASSEMBLY (EFI)
-
1984-825433A11 HARNESS ASSEMBLY, IgnitionHARNESS ASSEMBLY, Ignition
-
2025-818967 GROMMETGROMMET
-
21828102 BRACKETBRACKET
-
22882751A1 RELAYRELAY
-
2384-826802A2 HARNESS ASSEMBLY, TrimHARNESS ASSEMBLY, Trim
-
2484-88439A34 CABLE ASSEMBLY, Positive - BatteryCABLE ASSEMBLY, Positive - Battery
-
2584-88439A24 CABLE ASSEMBLY, Negative - BatteryCABLE ASSEMBLY, Negative - Battery
-
2684-827356A2 HARNESS ASSEMBLY (26 IN.)HARNESS ASSEMBLY (26 IN.)
-
278216091 COVERCOVER
-
2810-82239320 SCREW, (M5 x 20)SCREW, (M5 x 20)
-
2988-812619 FUSE, Yellow - 20 AmpereFUSE, Yellow - 20 Ampere
-
3088-19637 SOCKET, FuseSOCKET, Fuse
-
3184-93388A8 CABLE ASSEMBLY, BlackCABLE ASSEMBLY, Black
-
328212282 PLATE, Solenoid MountingPLATE, Solenoid Mounting
-
3310-82155025 SCREW, (M8 x 25) Stainless SteelSCREW, (M8 x 25) Stainless Steel
-
3410-82129125 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
3584-88807A16 CABLE ASSEMBLY, (4.00 Inches) BlackCABLE ASSEMBLY, (4.00 Inches) Black
-
3686-45915 TERMINAL BLOCKTERMINAL BLOCK
-
3710-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
3710-878607 SCREW, (#10-16 x .380)SCREW, (#10-16 x .380)
-
3889-817109A2 SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)
-
3923-818968 BUSHINGBUSHING
-
4013-53166 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
4111-68292 NUT, (.312-18)NUT, (.312-18)
-
4211-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
4354-850895 CLAMPCLAMP
-
4454-850896 CLAMP, (28.6)CLAMP, (28.6)
-
45850802 BRACKETBRACKET
-
4632-850803 HOSE (INLET)HOSE (INLET)
-
4732-850804 HOSE (OUTLET)HOSE (OUTLET)
-
48850801T2 PULSE FLUSHPULSE FLUSH
