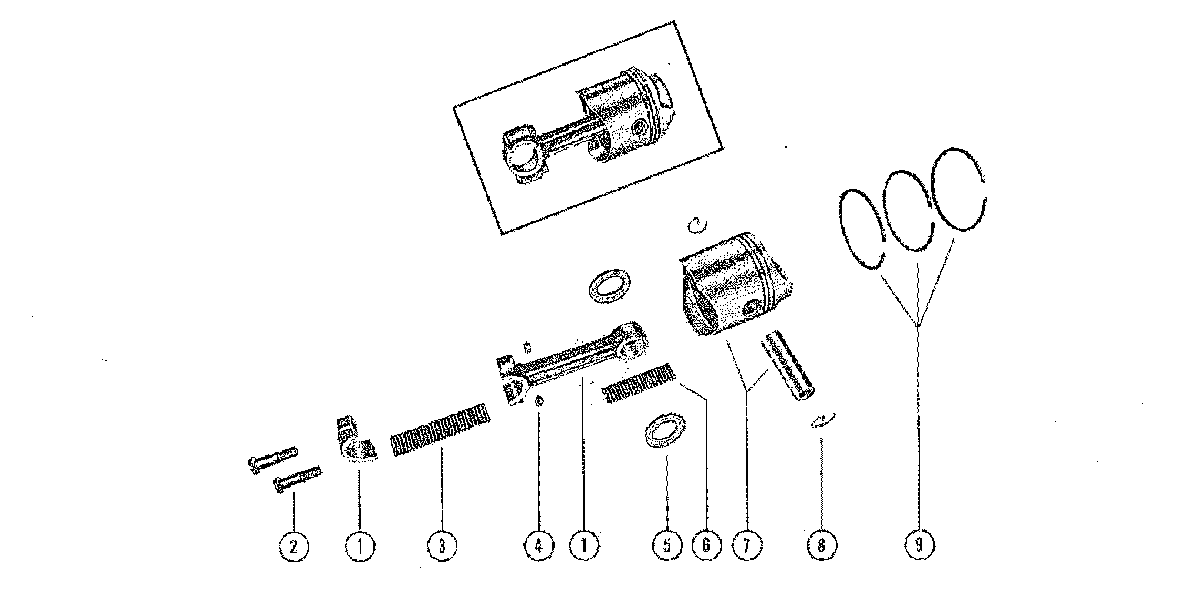

PISTON AND CONNECTING ROD ASSEMBLY для Mercury - 200 7012358 THRU 7098522
-
№АртикулНазвание
-
1632-7621A3 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
210-45379 SCREW, CONNECTING RODSCREW, CONNECTING ROD
-
329-20046T BEARING, NEEDLE - CRANKPINBEARING, NEEDLE - CRANKPIN
-
411-20061 NUT, CONNECTING ROD SCREWNUT, CONNECTING ROD SCREW
-
512-47275 WASHER, NEEDLE BEARING RETAININGWASHER, NEEDLE BEARING RETAINING
-
629-20063 BEARING, NEEDLE - PISTON PINBEARING, NEEDLE - PISTON PIN
-
7780-9229A7 PISTON AND PISTON PIN ASSEMBLYPISTON AND PISTON PIN ASSEMBLY
-
840-828119 LOCK RING, PISTON PINLOCK RING, PISTON PIN
-
939-27841A12 RING, PISTONRING, PISTON
-
-780-9229A10 PISTON AND PISTON PIN ASSEMBLY (.015 OVERSIZE)PISTON AND PISTON PIN ASSEMBLY (.015 OVERSIZE)
-
-39-28616A12 RING, PISTON (.015 OVERSIZE)RING, PISTON (.015 OVERSIZE)
