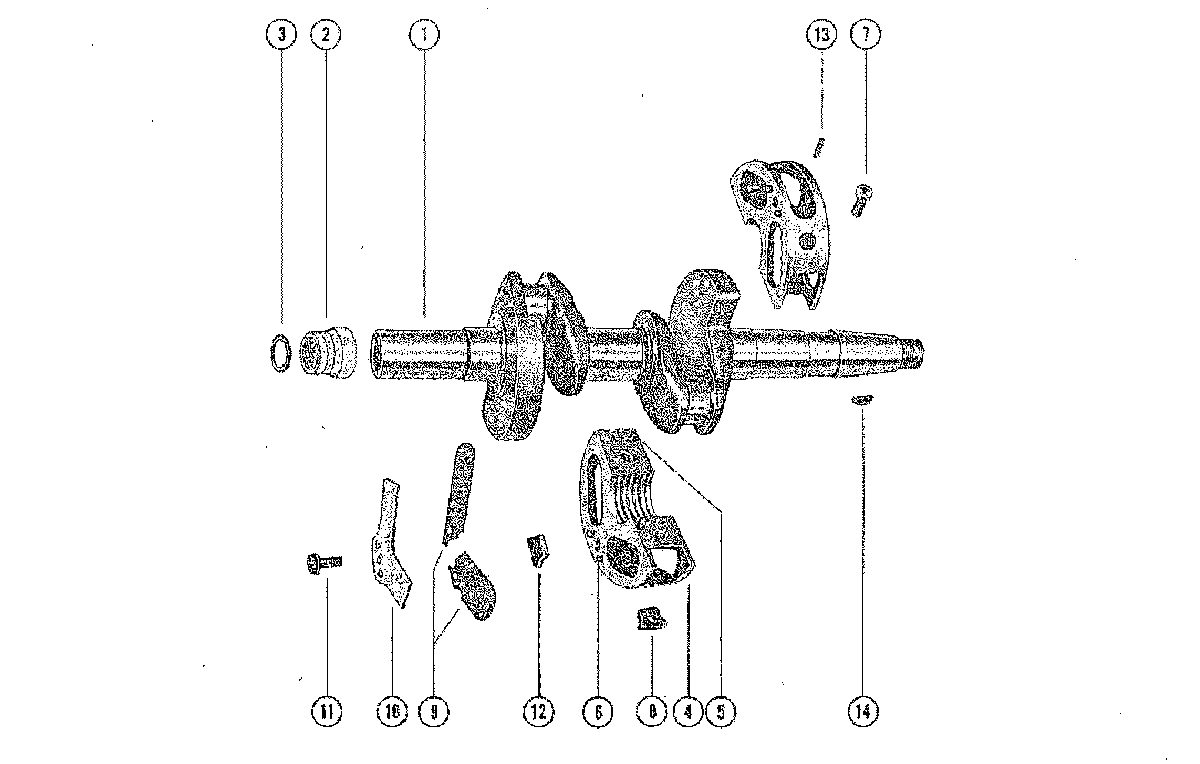

CRANKSHAFT AND CENTER MAIN BEARING ASSEMBLY для Mercury - 200 7012358 THRU 7098522
-
№АртикулНазвание
-
1415-5041 CRANKSHAFT
UNITED STATES 4403786 AND BELOW
AUSTRALIA 8039074 AND BELOW
BELGIUM 9122764 AND BELOW
CANADA 7077247 AND BELOWCRANKSHAFT
UNITED STATES 4403786 AND BELOW
AUSTRALIA 8039074 AND BELOW
BELGIUM 9122764 AND BELOW
CANADA 7077247 AND BELOW -
1415-6099 CRANKSHAFT
UNITED STATES 4403787 AND UP
AUSTRALIA 8039075 AND UP
BELGIUM 9122765 AND UP
CANADA 7077248 AND UPCRANKSHAFT
UNITED STATES 4403787 AND UP
AUSTRALIA 8039075 AND UP
BELGIUM 9122765 AND UP
CANADA 7077248 AND UP -
226-73315 CARRIER ASSEMBLY
UNITED STATES 4351589 AND BELOW
AUSTRALIA 8036049 AND BELOW
BELGIUM 9104813 AND BELOW
CANADA 7067847 AND BELOWCARRIER ASSEMBLY
UNITED STATES 4351589 AND BELOW
AUSTRALIA 8036049 AND BELOW
BELGIUM 9104813 AND BELOW
CANADA 7067847 AND BELOW -
364989 SEAL, CARRIER ASSEMBLY
UNITED STATES 4351589 AND BELOW
AUSTRALIA 8036049 AND BELOW
BELGIUM 9104813 AND BELOW
CANADA 7067847 AND BELOWSEAL, CARRIER ASSEMBLY
UNITED STATES 4351589 AND BELOW
AUSTRALIA 8036049 AND BELOW
BELGIUM 9104813 AND BELOW
CANADA 7067847 AND BELOW -
226-73315 SEAL, CRANKSHAFT
UNITED STATES 4351590 AND UP
AUSTRALIA 8036050 AND UP
BELGIUM 9104814 AND UP
CANADA 7067848 AND UPSEAL, CRANKSHAFT
UNITED STATES 4351590 AND UP
AUSTRALIA 8036050 AND UP
BELGIUM 9104814 AND UP
CANADA 7067848 AND UP -
4534-3267T25 CENTER MAIN BEARING ASSEMBLYCENTER MAIN BEARING ASSEMBLY
-
517-20032 DOWEL PIN, CENTER MAIN BEARINGDOWEL PIN, CENTER MAIN BEARING
-
617-65855 PIN, REED STOPPIN, REED STOP
-
710-45775 SCREW, CENTER MAIN BEARING CLAMPING (9/16")SCREW, CENTER MAIN BEARING CLAMPING (9/16")
-
811-45774 NUT, CENTER MAIN BEARING CLAMPING SCREWNUT, CENTER MAIN BEARING CLAMPING SCREW
-
934-88498A1 REED SET, CENTER MAIN BEARING (MATCHED)REED SET, CENTER MAIN BEARING (MATCHED)
-
1034-64632 REED STOP, MAIN BEARING REED VALVESREED STOP, MAIN BEARING REED VALVES
-
1110-77280 SCREW, REED STOP MOUNTING (9/16")SCREW, REED STOP MOUNTING (9/16")
-
1211-20110 NUT, REED STOP MOUNTING SCREWNUT, REED STOP MOUNTING SCREW
-
1317-20032 DOWEL PIN, MAIN BEARING TO CYLINDER BLOCKDOWEL PIN, MAIN BEARING TO CYLINDER BLOCK
-
1428-20094 KEY, FLYWHEELKEY, FLYWHEEL
