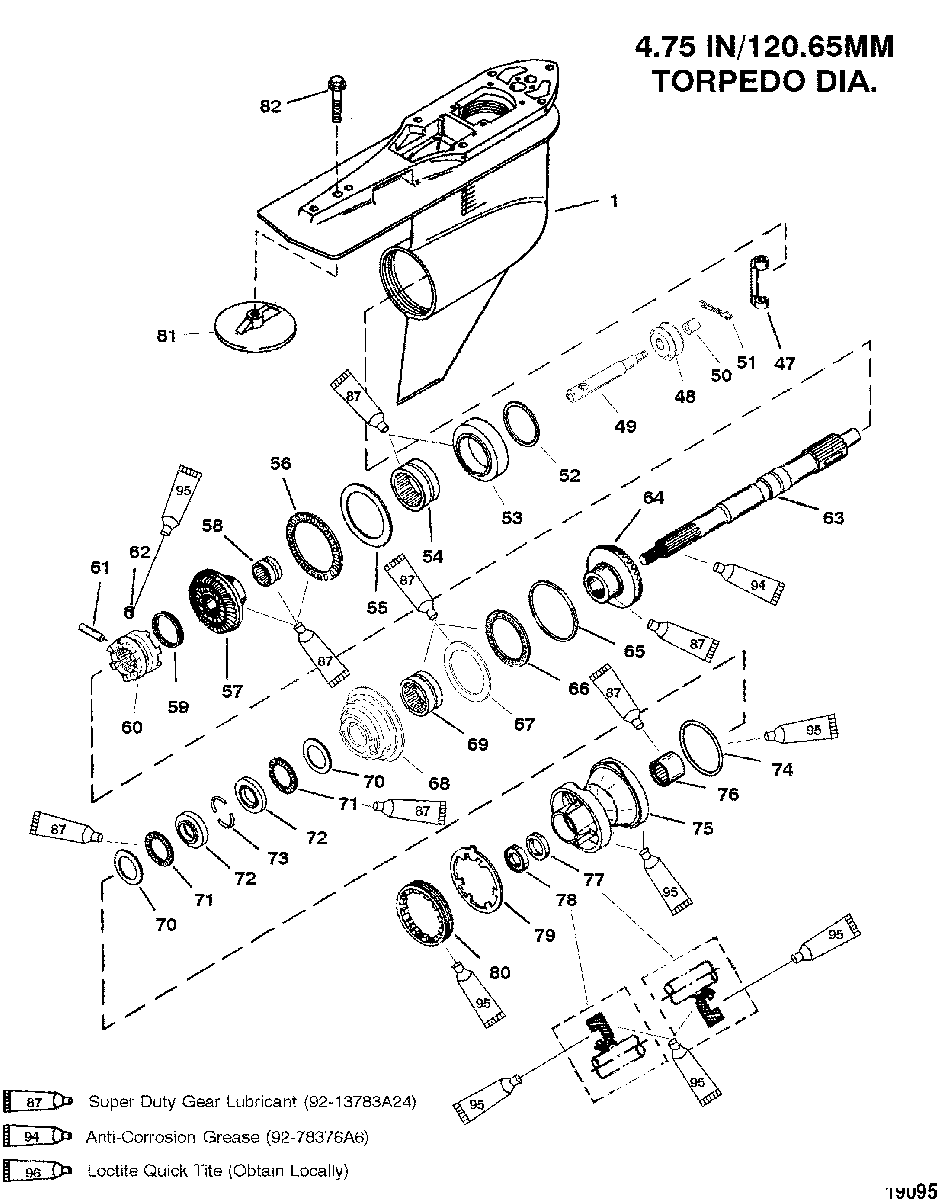

Gear Housing, Propeller Shaft - Counter Rotation для Mercury - 200 (DFI) 0G590000 THRU 0G760299

  • №
    Артикул
    Название
  • 1
    1623-822442T77 GEAR HOUSING ASSEMBLY
    (BLACK-BASIC)
    GEAR HOUSING ASSEMBLY
    (BLACK-BASIC)
  • 1
    1623-822442T84 GEAR HOUSING ASSEMBLY
    (GRAY-BASIC)
    GEAR HOUSING ASSEMBLY
    (GRAY-BASIC)
  • 47
    823903 SHIFT CRANK
    SHIFT CRANK
  • 48
    19755T7 SPOOL ASSEMBLY
    SPOOL ASSEMBLY
  • 49
    NSS NOT SOLD SEPARATE, Spool
    NOT SOLD SEPARATE, Spool
  • 50
    NSS NOT SOLD SEPARATE, Sleeve
    NOT SOLD SEPARATE, Sleeve
  • 51
    NSS NOT SOLD SEPARATE, Cotter Pin
    NOT SOLD SEPARATE, Cotter Pin
  • 52
    15-8M0063266 SHIM SET
    SHIM SET
  • 53
    828830A2 ADAPTOR ASSEMBLY, Bearing
    ADAPTOR ASSEMBLY, Bearing
  • 54
    31-814653T BEARING ASSEMBLY, Needle Rollers
    BEARING ASSEMBLY, Needle Rollers
  • 55
    12-815481 THRUST WASHER
    THRUST WASHER
  • 56
    31-815480 BEARING, Thrust
    BEARING, Thrust
  • 57
    43-828696T2 GEAR ASSEMBLY, Reverse (1.75:1 - 12/21)
    GEAR ASSEMBLY, Reverse (1.75:1 - 12/21)
  • 58
    31-15844 BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
  • 59
    24-30893 SPRING
    SPRING
  • 60
    52-859340T SLIDING CLUTCH
    SLIDING CLUTCH
  • 61
    17-8M0100263 PIN, Cross
    PIN, Cross
  • 62
    17-828356 PIN, Detent
    PIN, Detent
  • 63
    44-8M0140448 PROPELLER SHAFT
    PROPELLER SHAFT
  • 64
    43-828695A1 GEAR SET, Forward/Pinion (12/21)
    GEAR SET, Forward/Pinion (12/21)
  • 65
    23-1761514 SPACER SHIM , (.206)
    SPACER SHIM , (.206)
  • 65
    23-1761515 SPACER SHIM , (.208)
    SPACER SHIM , (.208)
  • 65
    23-1761516 SPACER SHIM, (.210)
    SPACER SHIM, (.210)
  • 65
    23-1761517 SPACER SHIM, (.212)
    SPACER SHIM, (.212)
  • 65
    23-1761518 SPACER SHIM, (.214)
    SPACER SHIM, (.214)
  • 65
    23-1761519 SPACER SHIM, (.216)
    SPACER SHIM, (.216)
  • 65
    23-1761520 SPACER SHIM, (.218)
    SPACER SHIM, (.218)
  • 65
    23-1761521 SPACER SHIM, (.220)
    SPACER SHIM, (.220)
  • 65
    23-1761522 SPACER SHIM, (.222)
    SPACER SHIM, (.222)
  • 65
    23-1761523 SPACER SHIM, (.224)
    SPACER SHIM, (.224)
  • 65
    23-1761524 SPACER SHIM, (.226)
    SPACER SHIM, (.226)
  • 65
    23-1761525 SPACER SHIM, (.228)
    SPACER SHIM, (.228)
  • 65
    23-1761526 SPACER SHIM, (.230)
    SPACER SHIM, (.230)
  • 66
    31-815480 BEARING, Thrust
    BEARING, Thrust
  • 67
    12-815481 THRUST WASHER
    THRUST WASHER
  • 68
    828831A3 ADAPTOR ASSEMBLY, Bearing
    ADAPTOR ASSEMBLY, Bearing
  • 69
    31-814653T BEARING ASSEMBLY, Needle Rollers
    BEARING ASSEMBLY, Needle Rollers
  • 70
    12-18448 THRUST WASHER
    THRUST WASHER
  • 71
    31-15842 BEARING, Thrust
    BEARING, Thrust
  • 72
    8182911 RACE, Thrust
    RACE, Thrust
  • 73
    814605 KEEPER
    KEEPER
  • 74
    25-31534 O-RING
    O-RING
  • 75
    818290T8 CARRIER ASSEMBLY, Bearing
    CARRIER ASSEMBLY, Bearing
  • 76
    31-30956T BEARING, Needle
    BEARING, Needle
  • 77
    26-14077 SEAL, Oil (INSIDE)
    SEAL, Oil (INSIDE)
  • 78
    26-76868 SEAL (OUTSIDE)
    SEAL (OUTSIDE)
  • 79
    14-18323 TAB WASHER
    TAB WASHER
  • 80
    8M2000347 RETAINER
    RETAINER
  • 81
    97-76214Q5 ANODE KIT
    ANODE KIT
  • 82
    10-806327 SCREW, (.437-14 x 1.750)
    SCREW, (.437-14 x 1.750)
  • -
    26-816575A4 SEAL KIT, Gear Housing
    SEAL KIT, Gear Housing
