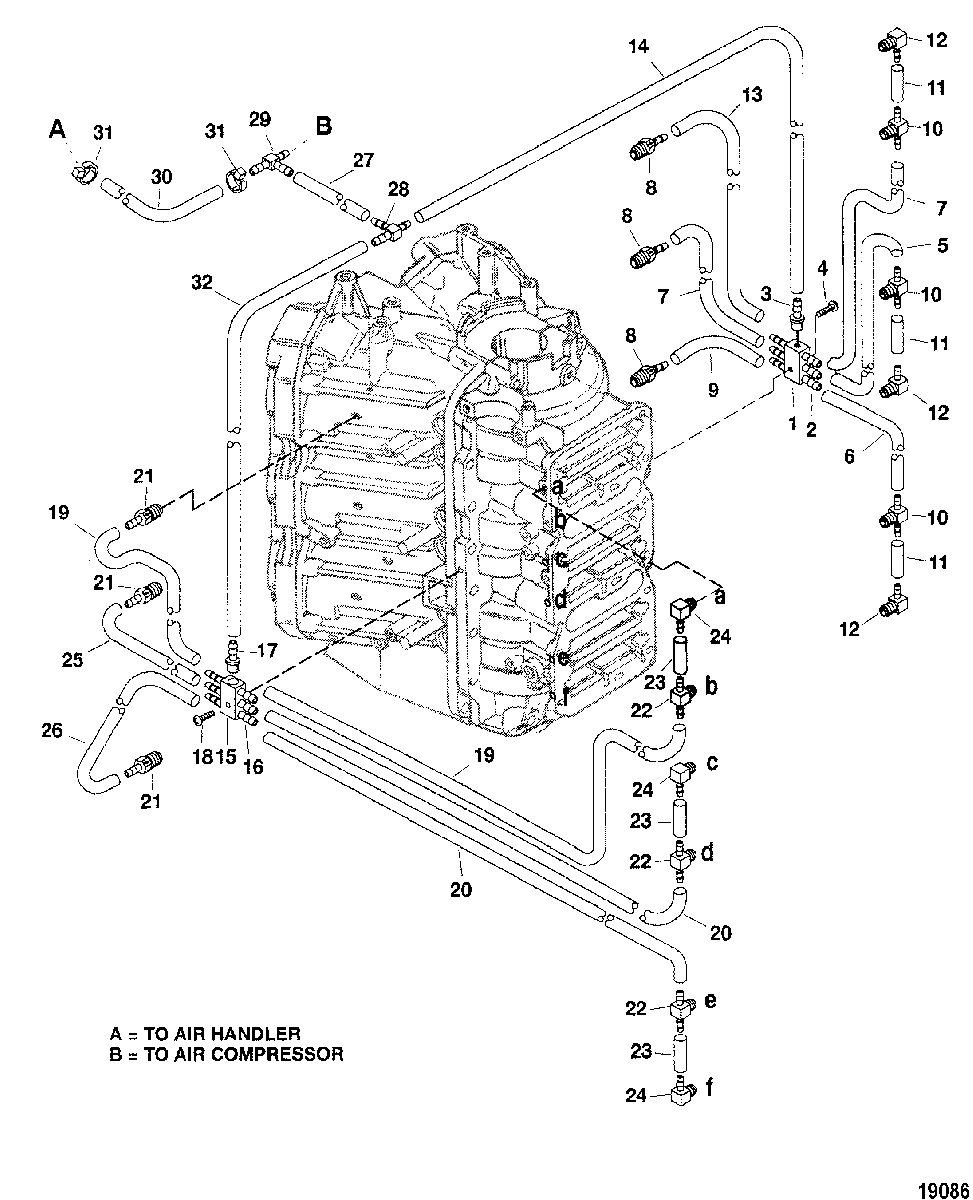

Bleed System для Mercury - 200 (DFI) 0G590000 THRU 0G760299

  • №
    Артикул
    Название
  • 1
    827210A9 MANIFOLD ASSEMBLY, Bleed System
    PORT
    MANIFOLD ASSEMBLY, Bleed System
    PORT
  • 2
    21-426233 CHECK VALVE
    PORT
    CHECK VALVE
    PORT
  • 3
    22-13035002 FITTING
    PORT
    FITTING
    PORT
  • 4
    10-92051 SCREW, (10-16 x .75)
    PORT
    SCREW, (10-16 x .75)
    PORT
  • 5
    32-892024122 TUBING, (20.00 Feet Bulk) (5-1/2 IN.)
    PORT
    TUBING, (20.00 Feet Bulk) (5-1/2 IN.)
    PORT
  • 6
    32-892024122 TUBING, (20.00 Feet Bulk) (7 IN.)
    PORT
    TUBING, (20.00 Feet Bulk) (7 IN.)
    PORT
  • 7
    32-892024122 TUBING, (20.00 Feet Bulk) (6 IN.)
    PORT
    TUBING, (20.00 Feet Bulk) (6 IN.)
    PORT
  • 8
    22-8245021 CONNECTOR
    (SHOWN AS REF.13 ON CYLINDER BLOCK) PORT
    CONNECTOR
    (SHOWN AS REF.13 ON CYLINDER BLOCK) PORT
  • 9
    32-892024122 TUBING, (20.00 Feet Bulk) (10-1/2 IN.)
    PORT
    TUBING, (20.00 Feet Bulk) (10-1/2 IN.)
    PORT
  • 10
    21-8348041 CHECK VALVE
    PORT
    CHECK VALVE
    PORT
  • 11
    32-892024122 TUBING, (20.00 Feet Bulk) (1-3/4 IN.)
    PORT
    TUBING, (20.00 Feet Bulk) (1-3/4 IN.)
    PORT
  • 12
    21-8282182 CHECK VALVE
    PORT
    CHECK VALVE
    PORT
  • 13
    32-892024122 TUBING, (20.00 Feet Bulk) (4-1/2 IN.)
    PORT
    TUBING, (20.00 Feet Bulk) (4-1/2 IN.)
    PORT
  • 14
    32-9912688 TUBING, (36.00 Inches Bulk) (10-1/4 IN.)
    PORT
    TUBING, (36.00 Inches Bulk) (10-1/4 IN.)
    PORT
  • 15
    827210A9 MANIFOLD ASSEMBLY, Bleed System
    STARBOARD
    MANIFOLD ASSEMBLY, Bleed System
    STARBOARD
  • 16
    21-426233 CHECK VALVE
    STARBOARD
    CHECK VALVE
    STARBOARD
  • 17
    22-13035002 FITTING
    STARBOARD
    FITTING
    STARBOARD
  • 18
    10-92051 SCREW, (10-16 x .75)
    STARBOARD
    SCREW, (10-16 x .75)
    STARBOARD
  • 19
    32-892024122 TUBING, (20.00 Feet Bulk) (7 IN.)
    STARBOARD
    TUBING, (20.00 Feet Bulk) (7 IN.)
    STARBOARD
  • 20
    32-892024122 TUBING, (20.00 Feet Bulk) (5-1/2 IN.)
    STARBOARD
    TUBING, (20.00 Feet Bulk) (5-1/2 IN.)
    STARBOARD
  • 21
    22-8245021 CONNECTOR
    (SHOWN AS REF.13 ON CYLINDER BLOCK) STARBOARD
    CONNECTOR
    (SHOWN AS REF.13 ON CYLINDER BLOCK) STARBOARD
  • 22
    21-8348041 CHECK VALVE
    STARBOARD
    CHECK VALVE
    STARBOARD
  • 23
    32-892024122 TUBING, (20.00 Feet Bulk) (1-3/4 IN.)
    STARBOARD
    TUBING, (20.00 Feet Bulk) (1-3/4 IN.)
    STARBOARD
  • 24
    21-8282182 CHECK VALVE
    STARBOARD
    CHECK VALVE
    STARBOARD
  • 25
    32-892024122 TUBING, (20.00 Feet Bulk) (4-1/2 IN.)
    STARBOARD
    TUBING, (20.00 Feet Bulk) (4-1/2 IN.)
    STARBOARD
  • 26
    32-892024122 TUBING, (20.00 Feet Bulk) (9 IN.)
    STARBOARD
    TUBING, (20.00 Feet Bulk) (9 IN.)
    STARBOARD
  • 27
    32-9912688 TUBING, (36.00 Inches Bulk) (1-1/4 IN.)
    TUBING, (36.00 Inches Bulk) (1-1/4 IN.)
  • 28
    22-13033 TEE FITTING
    TEE FITTING
  • 29
    22-817518 TEE
    TEE
  • 30
    32-8M0108355 HOSE, (57.00 Inches Bulk) (1-1/2 IN.)
    HOSE, (57.00 Inches Bulk) (1-1/2 IN.)
  • 31
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 32
    32-9912688 TUBING, (36.00 Inches Bulk) (13 IN.)
    TUBING, (36.00 Inches Bulk) (13 IN.)
  • -
    854198R99 POWERHEAD ASSEMBLY
    (200)
    POWERHEAD ASSEMBLY
    (200)
  • -
    854199A99 POWERHEAD ASSEMBLY
    (225)
    POWERHEAD ASSEMBLY
    (225)
