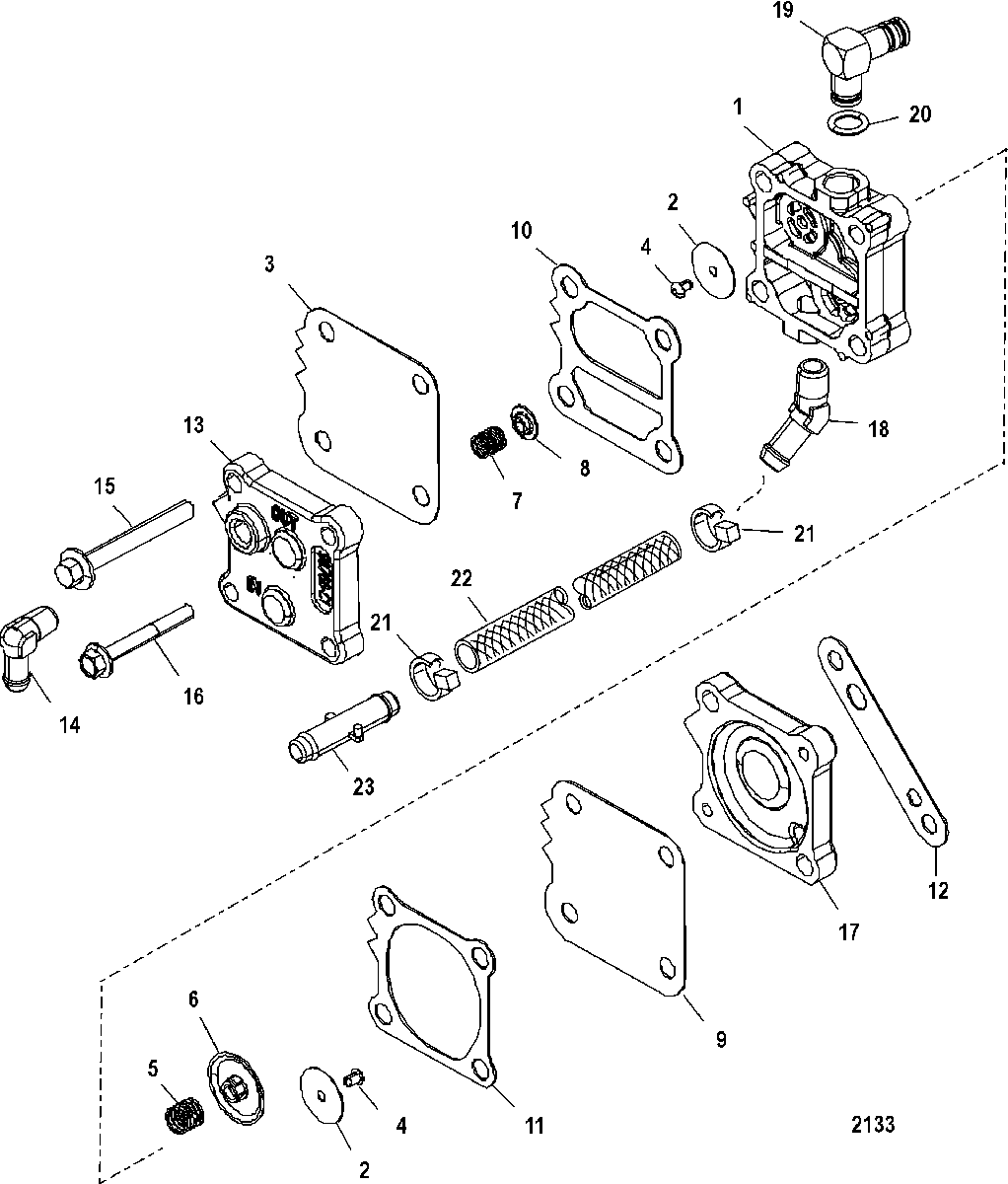

Fuel Pump для Mercury - 200 (DFI) 3.0L 1B504989 THRU 1B912785

  • №
    Артикул
    Название
  • -
    14360T74 PUMP ASSEMBLY, Fuel
    PUMP ASSEMBLY, Fuel
  • 1
    NSS NOT SOLD SEPARATE, Fuel Pump
    NOT SOLD SEPARATE, Fuel Pump
  • 2
    21-857005A1 DIAPHRAGM KIT
    DIAPHRAGM KIT
  • 3
    NSS NOT SOLD SEPARATE, Diaphragm
    NOT SOLD SEPARATE, Diaphragm
  • 4
    NSS NOT SOLD SEPARATE, Retainer
    NOT SOLD SEPARATE, Retainer
  • 5
    NSS NOT SOLD SEPARATE, Spring
    NOT SOLD SEPARATE, Spring
  • 6
    NSS NOT SOLD SEPARATE, Cap
    NOT SOLD SEPARATE, Cap
  • 7
    NSS NOT SOLD SEPARATE, Spring
    NOT SOLD SEPARATE, Spring
  • 8
    NSS NOT SOLD SEPARATE, Cap
    NOT SOLD SEPARATE, Cap
  • 9
    NSS NOT SOLD SEPARATE, Diaphragm
    NOT SOLD SEPARATE, Diaphragm
  • 10
    NSS NOT SOLD SEPARATE, Gasket-Boost
    NOT SOLD SEPARATE, Gasket-Boost
  • 11
    NSS NOT SOLD SEPARATE, Gasket-Pulse
    NOT SOLD SEPARATE, Gasket-Pulse
  • 12
    27-987691 GASKET
    GASKET
  • 13
    987752 PLATE
    PLATE
  • 14
    22-996642 FITTING, Elbow 90 Degree (.125-27 x .250) Nylon
    FITTING, Elbow 90 Degree (.125-27 x .250) Nylon
  • 15
    10-82104540 SCREW, (M5 x 40), Fuel Pump
    SCREW, (M5 x 40), Fuel Pump
  • 16
    10-82130050 SCREW, (M6 x 50), Pump to crankcase
    SCREW, (M6 x 50), Pump to crankcase
  • 17
    144303 BASE
    BASE
  • 18
    22-782792 FITTING, Elbow 45 Degree (1.25)
    FITTING, Elbow 45 Degree (1.25)
  • 19
    22-888493 ELBOW
    ELBOW
  • 20
    25-805063 O-RING, (.301 x .070)
    O-RING, (.301 x .070)
  • 21
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 22
    32-8M0043979 HOSE AND SLEEVE ASSEMBLY, (18.00 Inches)
    HOSE AND SLEEVE ASSEMBLY, (18.00 Inches)
  • 23
    22-822769 CONNECTOR
    CONNECTOR
  • -
    27-832934A00 GASKET SET, Powerhead
    200/225/200 Pro XS
    GASKET SET, Powerhead
    200/225/200 Pro XS
  • -
    27-841220A03 GASKET SET, Powerhead
    250
    GASKET SET, Powerhead
    250
  • -
    854198A07 POWERHEAD ASSEMBLY
    200/200 Pro XS
    POWERHEAD ASSEMBLY
    200/200 Pro XS
  • -
    877869A07 POWERHEAD ASSEMBLY
    225
    POWERHEAD ASSEMBLY
    225
  • -
    61-843034A07 POWERHEAD ASSEMBLY
    250
    POWERHEAD ASSEMBLY
    250
