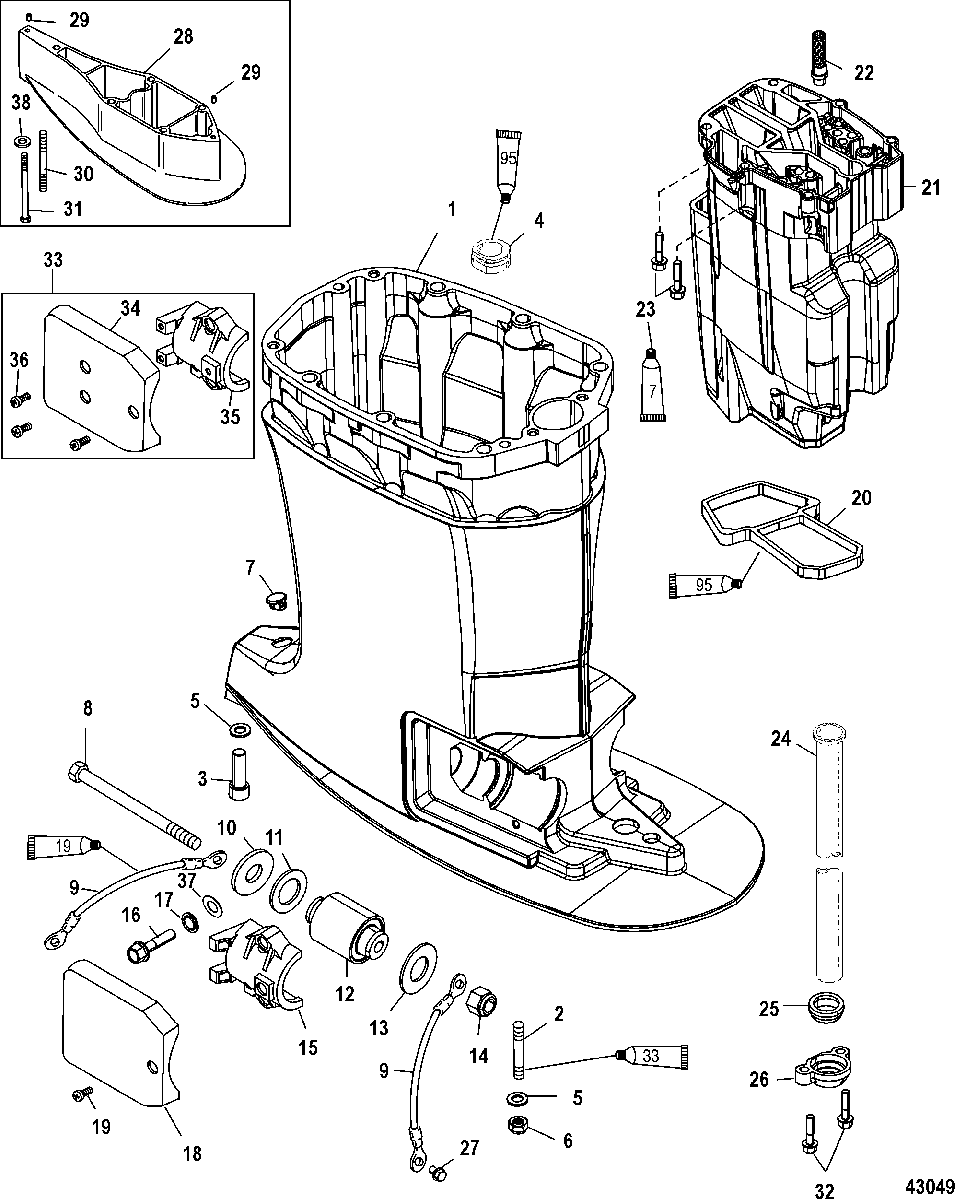

Driveshaft Housing and Exhaust Tube для Mercury - 200 (DFI) 3.0L 1B504989 THRU 1B912785

  • №
    Артикул
    Название
  • 1
    3518-832937A06 HOUSING ASSEMBLY, Driveshaft - Long
    HOUSING ASSEMBLY, Driveshaft - Long
  • 1
    3519-832938A06 HOUSING ASSEMBLY, Driveshaft - X/XX-Long
    HOUSING ASSEMBLY, Driveshaft - X/XX-Long
  • 2
    16-8M0070951 STUD, (M12 x 52)
    Long/X-Long
    STUD, (M12 x 52)
    Long/X-Long
  • 3
    10-8M0102995 SCREW, (M12 x 35 MM)
    Long/X-Long
    SCREW, (M12 x 35 MM)
    Long/X-Long
  • 4
    25-8331231 GROMMET
    GROMMET
  • 5
    12-856982 WASHER, (.500 x .810 x .090) Stainless Steel
    WASHER, (.500 x .810 x .090) Stainless Steel
  • 6
    11-896895 NUT, (M12)
    NUT, (M12)
  • 7
    19-64649 PLUG
    PLUG
  • 8
    10-898834 BOLT, (M14 x 178)
    BOLT, (M14 x 178)
  • 9
    88238A10 CABLE ASSEMBLY, Ground
    CABLE ASSEMBLY, Ground
  • 10
    12-815432 WASHER, (.562 x 2.00 x .125)
    WASHER, (.562 x 2.00 x .125)
  • 11
    12-8154331 WASHER, (1.25 x 2.00 x .19)
    WASHER, (1.25 x 2.00 x .19)
  • 12
    8137711 MOUNT
    MOUNT
  • 13
    12-825190 WASHER
    WASHER
  • 14
    11-896602 NUT, (M14)
    NUT, (M14)
  • 15
    879150A90 CLAMP, When Depleted Order Design II Kit 879150A90
    Design I SN# 1B775625 & Below
    CLAMP, When Depleted Order Design II Kit 879150A90
    Design I SN# 1B775625 & Below
  • 16
    10-81893435 SCREW, (M8 x 35)
    SCREW, (M8 x 35)
  • 17
    13-72521 LOCKWASHER, Internal Tooth
    LOCKWASHER, Internal Tooth
  • 18
    879150A90 COVER, Lower Mount, When Depleted Order Design II Kit 879150A90
    Design I SN# 1B775625 & Below
    COVER, Lower Mount, When Depleted Order Design II Kit 879150A90
    Design I SN# 1B775625 & Below
  • 19
    10-69079 SCREW, (#10-16 x .440)
    Design I
    SCREW, (#10-16 x .440)
    Design I
  • 20
    8329321 SEAL
    SEAL
  • 21
    833116A19 TUBE ASSEMBLY, Exhaust
    TUBE ASSEMBLY, Exhaust
  • 22
    35-8M0026113 STRAINER
    STRAINER
  • 23
    10-81893435 SCREW, (M8 x 35)
    SCREW, (M8 x 35)
  • 24
    32-8M0042785 TUBE, Water
    Long
    TUBE, Water
    Long
  • 24
    32-8M0042786 TUBE, Water
    X-Long
    TUBE, Water
    X-Long
  • 24
    32-8M0042787 TUBE, Water
    XX-Long
    TUBE, Water
    XX-Long
  • 25
    832940001 SEAL
    SEAL
  • 26
    8329391 CLAMP
    CLAMP
  • 27
    10-41508 SCREW, (.250-20 x .500) Stainless Steel
    SCREW, (.250-20 x .500) Stainless Steel
  • 28
    8M0105088 SPACER
    XX-Long
    SPACER
    XX-Long
  • 29
    17-43044 PIN, Dowel - Without Hole (.375 x .625)
    XX-Long
    PIN, Dowel - Without Hole (.375 x .625)
    XX-Long
  • 30
    16-8M0008047 STUD, (M12 x 179)
    XX-Long
    STUD, (M12 x 179)
    XX-Long
  • 31
    10-857137 SCREW, (M12 x 160)
    XX-Long
    SCREW, (M12 x 160)
    XX-Long
  • 32
    10-81893435 SCREW, (M8 x 35)
    SCREW, (M8 x 35)
  • 33
    879150A90 COVER KIT, Lower Mount
    Design II SN# 1B775625 & Below
    COVER KIT, Lower Mount
    Design II SN# 1B775625 & Below
  • 34
    100-8M0148785 COVER, Lower Mount
    Design II SN# 1B775626 & Up
    COVER, Lower Mount
    Design II SN# 1B775626 & Up
  • 35
    100-8M4501003 CLAMP
    Design II SN# 1B775626 & Up
    CLAMP
    Design II SN# 1B775626 & Up
  • 36
    10-69079 SCREW, (#10-16 x .440)
    Design II SN# 1B775626 & Up
    SCREW, (#10-16 x .440)
    Design II SN# 1B775626 & Up
  • 37
    12-847541 WASHER
    WASHER
  • 38
    12-856982 WASHER, (.500 x .810 x .090) Stainless Steel
    WASHER, (.500 x .810 x .090) Stainless Steel
