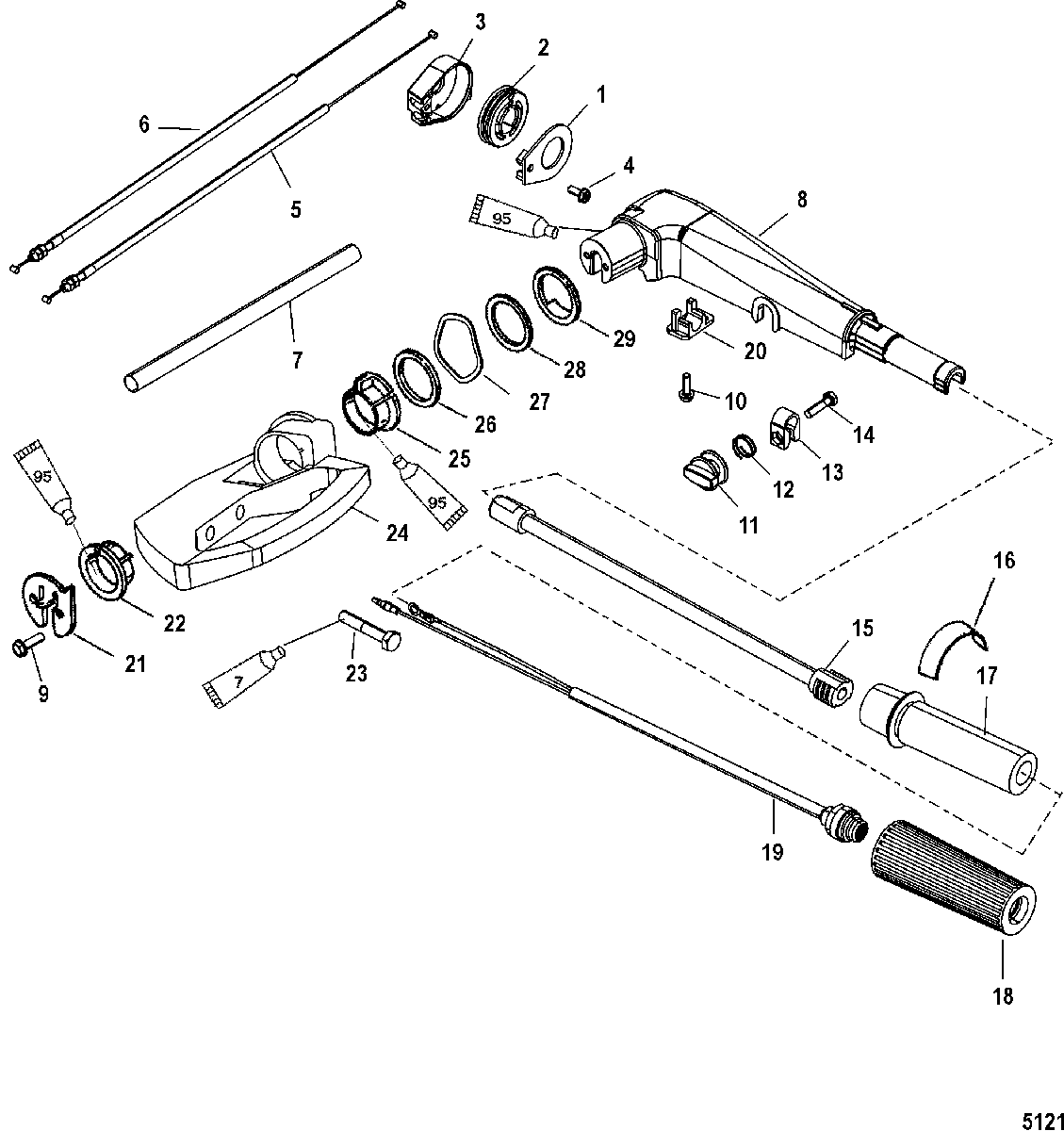

Tiller Handle Assembly для Mercury - 20 JET 1B000001 & Up
-
№АртикулНазвание
-
-821468T4 TILLER HANDLE
(Black) (Tiller Handle Shift)TILLER HANDLE
(Black) (Tiller Handle Shift) -
-821468T2 TILLER HANDLE
(Black) (Side Shift)TILLER HANDLE
(Black) (Side Shift) -
1822148A4 COVER KIT
(Tiller Handle Shift)COVER KIT
(Tiller Handle Shift) -
1822148A2 COVER KIT
(Side Shift)COVER KIT
(Side Shift) -
2822150 PULLEYPULLEY
-
3NSS NOT SOLD SEPARATE, CaseNOT SOLD SEPARATE, Case
-
410-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
543242T03 CABLE, Throttle
(Tiller Handle Shift)CABLE, Throttle
(Tiller Handle Shift) -
5432426 CABLE, Throttle
(Side Shift)CABLE, Throttle
(Side Shift) -
643242T03 CABLE, Throttle
(Tiller Handle Shift)CABLE, Throttle
(Tiller Handle Shift) -
6432426 CABLE, Throttle
(Side Shift)CABLE, Throttle
(Side Shift) -
785-960099 SLEEVE, (12.00 Inches)SLEEVE, (12.00 Inches)
-
8821468A66 ARM ASSEMBLY, Steering Handle
(Black)ARM ASSEMBLY, Steering Handle
(Black) -
910-4010516 SCREW, (M5 x 16) Stainless SteelSCREW, (M5 x 16) Stainless Steel
-
1010-40011107 SCREW, (M5 x 16) Stainless SteelSCREW, (M5 x 16) Stainless Steel
-
11821972T KNOB, ThrottleKNOB, Throttle
-
1224-96203 SPRINGSPRING
-
13892995 LOCK, ThrottleLOCK, Throttle
-
1410-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
15821463T01 TILLER TUBETILLER TUBE
-
1637-8242002 DECAL
(Tiller Handle Shift)DECAL
(Tiller Handle Shift) -
1637-8242004 DECAL
(Side Shift)DECAL
(Side Shift) -
17822429 HANDLE, Throttle
(Tiller Handle Shift)HANDLE, Throttle
(Tiller Handle Shift) -
17821465 HANDLE, Throttle
(Side Shift)HANDLE, Throttle
(Side Shift) -
1899589003 GRIPGRIP
-
1987-8M0104615 SWITCH ASSEMBLY, Stop
(Red)SWITCH ASSEMBLY, Stop
(Red) -
1987-823609A18 SWITCH ASSEMBLY, Start/Stop
(Black)SWITCH ASSEMBLY, Start/Stop
(Black) -
20822441 RETAINERRETAINER
-
218221471 PLATEPLATE
-
2223-823939 BUSHINGBUSHING
-
2310-4000384 SCREW, (M10 x 80)SCREW, (M10 x 80)
-
24822841F1 BRACKET
(Black)BRACKET
(Black) -
2523-823939 BUSHINGBUSHING
-
2612-822145 WASHERWASHER
-
2713-826792 WAVE WASHERWAVE WASHER
-
2812-822145 WASHERWASHER
-
2912-822146 WASHERWASHER
