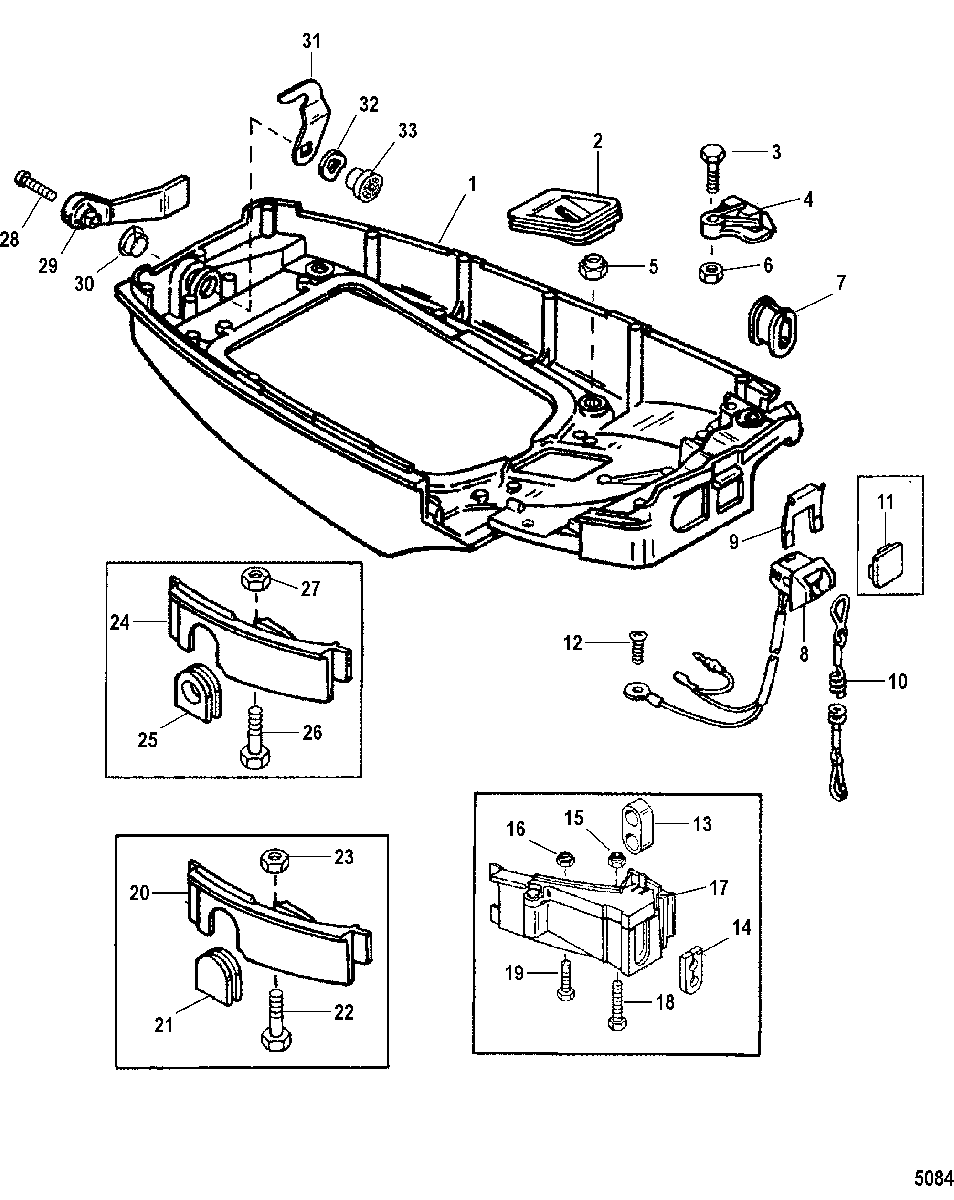

Bottom Cowl для Mercury - 20 JET 1B000001 & Up
-
№АртикулНазвание
-
12193-9682A8 BOTTOM COWL
(Black)BOTTOM COWL
(Black) -
225-17231 GROMMET, Shift ShaftGROMMET, Shift Shaft
-
310-4000332 SCREW, (M6 x 35)SCREW, (M6 x 35)
-
417223 COVER, HarnessCOVER, Harness
-
511-401366 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
611-401366 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
725-17226 GROMMET, Wire HarnessGROMMET, Wire Harness
-
887-826677A3 SWITCH ASSEMBLY, StopSWITCH ASSEMBLY, Stop
-
98M0032846 RETAINER, BrassRETAINER, Brass
-
108M0092850 LANYARD ASSEMBLYLANYARD ASSEMBLY
-
1119-17230 PLUG
(Remote Control)PLUG
(Remote Control) -
1210-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
1339519 CUP
(Remote Control)CUP
(Remote Control) -
1425-8243641 GROMMET, Side Cover
(Remote Control)GROMMET, Side Cover
(Remote Control) -
1511-401366 NUT, (M6) Stainless Steel
(Remote Control)NUT, (M6) Stainless Steel
(Remote Control) -
1611-401366 NUT, (M6) Stainless Steel
(Remote Control)NUT, (M6) Stainless Steel
(Remote Control) -
178M0053899 SIDE COVER
(Remote Control)SIDE COVER
(Remote Control) -
1810-4000329 SCREW, (M6 x 20)
(Remote Control)SCREW, (M6 x 20)
(Remote Control) -
1910-4000328 SCREW, (M6 x 16)
(Remote Control)SCREW, (M6 x 16)
(Remote Control) -
208M0054857 SIDE COVER
(Manual)(Tiller Shift)SIDE COVER
(Manual)(Tiller Shift) -
2125-824362 GROMMET
(Tiller Shift)GROMMET
(Tiller Shift) -
2210-4000329 SCREW, (M6 x 20)
(Tiller Shift)SCREW, (M6 x 20)
(Tiller Shift) -
2311-401366 NUT, (M6) Stainless Steel
(Tiller Shift)NUT, (M6) Stainless Steel
(Tiller Shift) -
248M0054857 SIDE COVER
(Manual)(Side Shift)SIDE COVER
(Manual)(Side Shift) -
2525-824361 GROMMET
(Side Shift)GROMMET
(Side Shift) -
2610-4000329 SCREW, (M6 x 20)
(Side Shift)SCREW, (M6 x 20)
(Side Shift) -
2711-401366 NUT, (M6) Stainless Steel
(Side Shift)NUT, (M6) Stainless Steel
(Side Shift) -
2810-852530 SCREW, (.250-20 x 1.50)SCREW, (.250-20 x 1.50)
-
2917220 LEVER, Cowl LatchLEVER, Cowl Latch
-
3023-812707 BUSHINGBUSHING
-
31816202 HOOK, LatchHOOK, Latch
-
3213-37642 WAVE WASHERWAVE WASHER
-
3311-17224 NUT, Latch RetainingNUT, Latch Retaining
