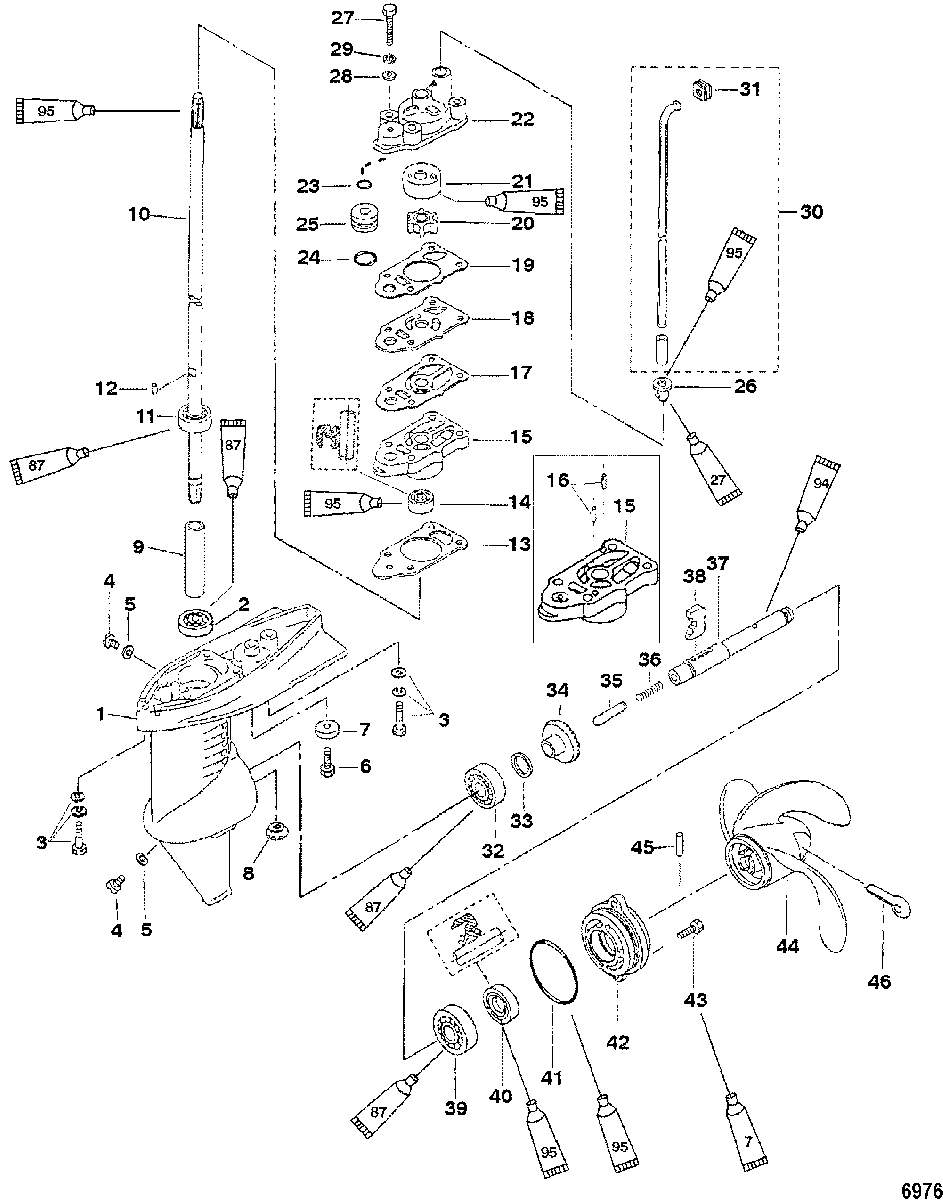

Gear Housing Assembly, 3.3 Horsepower для Mercury - 2 0T894577 & Up
-
№АртикулНазвание
-
-1600-8M0122311 GEAR HOUSING ASSEMBLY, Complete
ShortGEAR HOUSING ASSEMBLY, Complete
Short -
-1600-8M0122312 GEAR HOUSING ASSEMBLY, Complete
LongGEAR HOUSING ASSEMBLY, Complete
Long -
11668-825126T06 GEAR HOUSING ASSEMBLY, BasicGEAR HOUSING ASSEMBLY, Basic
-
230-95342 BEARING, Ball, LowerBEARING, Ball, Lower
-
310-82304232 BOLTBOLT
-
422-953683 PLUGPLUG
-
58M0082880 GASKETGASKET
-
610-16832 BOLT, (M6 x 16)BOLT, (M6 x 16)
-
797-823913Q ANODEANODE
-
843-8M0122680 GEARGEAR
-
923-8104711 SPACERSPACER
-
1045-8M0116958 DRIVESHAFT
ShortDRIVESHAFT
Short -
1045-8M0116959 DRIVESHAFT
LongDRIVESHAFT
Long -
1130-95342 BEARING, BallBEARING, Ball
-
1228-16155 KEYKEY
-
1327-898101333 GASKETGASKET
-
1426-161621 SEAL, OilSEAL, Oil
-
1546-815113T03 HOUSING, Lower Water PumpHOUSING, Lower Water Pump
-
1617-9521811 PIN, Roll - Stainless SteelPIN, Roll - Stainless Steel
-
1727-161603 GASKETGASKET
-
18161591 GUIDE PLATEGUIDE PLATE
-
1927-898101331 GASKETGASKET
-
2047-161543 IMPELLERIMPELLER
-
21161571 LINERLINER
-
2246-161561 HOUSING, Upper Water PumpHOUSING, Upper Water Pump
-
2325-161771 O-RINGO-RING
-
2425-161781 O-RINGO-RING
-
2523-161761 BUSHINGBUSHING
-
2625-953611 GROMMETGROMMET
-
2710-8M0063198 BOLTBOLT
-
2812-16826 WASHER, Stainless SteelWASHER, Stainless Steel
-
2913-400256 LOCKWASHER, (M6)LOCKWASHER, (M6)
-
3032-953591 TUBE, Water
ShortTUBE, Water
Short -
3032-953592 TUBE, Water
LongTUBE, Water
Long -
3125-953601 GROMMETGROMMET
-
3230-16128 BEARING, BallBEARING, Ball
-
3315-16141 SHIM, (0.1)SHIM, (0.1)
-
3315-813277 SHIM, (0.15)SHIM, (0.15)
-
3443-8M0122680 GEARGEAR
-
35823050 PUSH RODPUSH ROD
-
3624-176671 SPRINGSPRING
-
3744-952911 PROPELLER SHAFTPROPELLER SHAFT
-
3852-823049 CLUTCHCLUTCH
-
3930-95344 BEARING, BallBEARING, Ball
-
4026-95348 SEAL, OilSEAL, Oil
-
4125-16131 O-RINGO-RING
-
42825116 HOUSINGHOUSING
-
4310-167051 BOLT, (M6 x 20)BOLT, (M6 x 20)
-
4448-815084A02 PROPELLER, Aluminum (3 x 7.4 x 7)PROPELLER, Aluminum (3 x 7.4 x 7)
-
4448-815083A02 PROPELLER, Plastic (3 x 7.4 x 7)PROPELLER, Plastic (3 x 7.4 x 7)
-
4517-815111Q02 SHEAR PIN, Stainless SteelSHEAR PIN, Stainless Steel
-
4517-815111Q02 PIN, BrassPIN, Brass
-
4618-95295 COTTER PINCOTTER PIN
-
-27-8M0082881 GASKET SET, Lower UnitGASKET SET, Lower Unit
-
-8M0080264 REPAIR KIT, Water PumpREPAIR KIT, Water Pump
