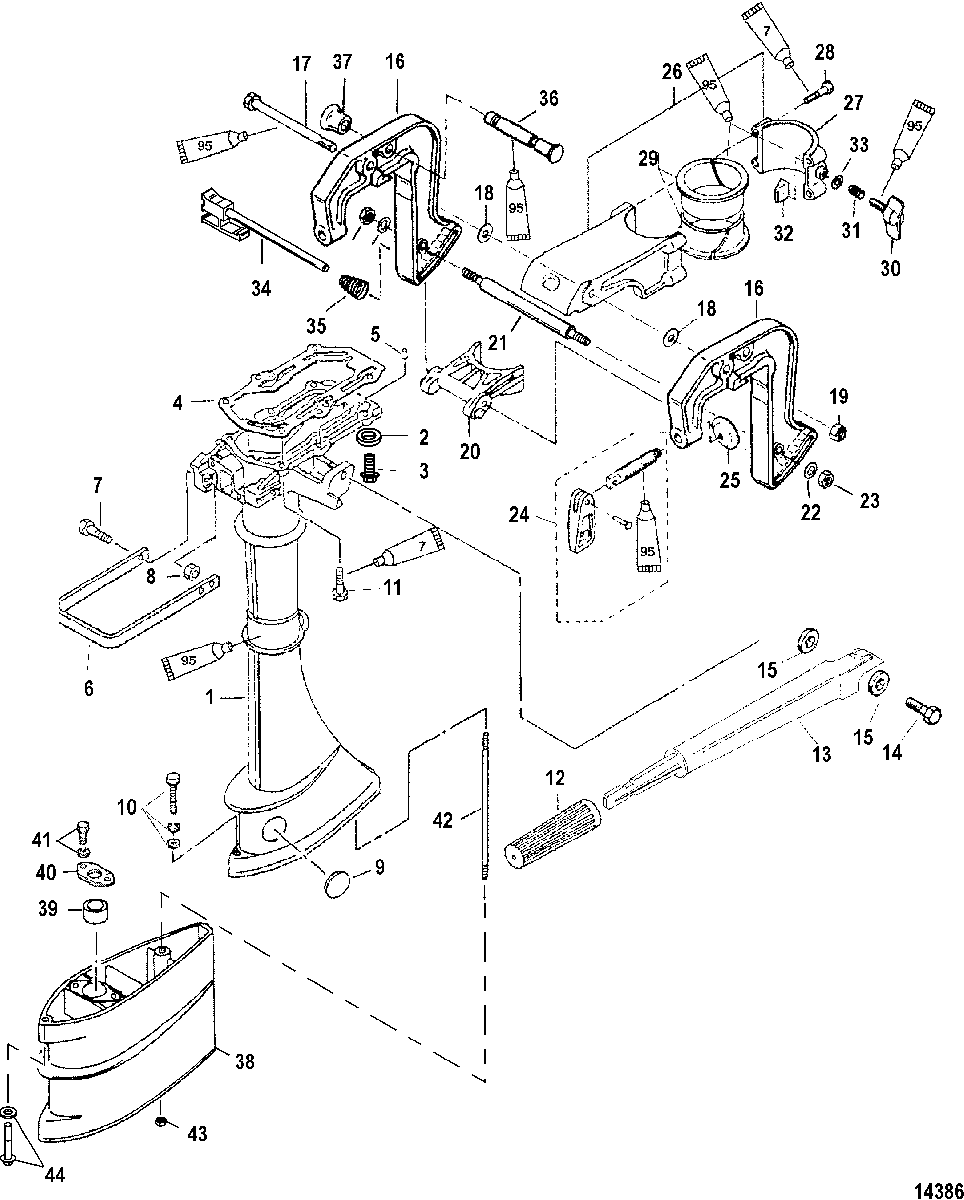

Driveshaft Housing and Clamp Brackets для Mercury - 2 0T894577 & Up

  • №
    Артикул
    Название
  • 1
    1599-825130T HOUSING, Driveshaft
    2 Horsepower
    HOUSING, Driveshaft
    2 Horsepower
  • 1
    1599-825130T HOUSING, Driveshaft
    Short- 2.5 Horsepower
    HOUSING, Driveshaft
    Short- 2.5 Horsepower
  • 1
    1599-8251301 HOUSING, Driveshaft
    Long- 2.5 Horsepower
    HOUSING, Driveshaft
    Long- 2.5 Horsepower
  • 1
    1599-825128A1 HOUSING ASSEMBLY, Driveshaft
    3.3 Horsepower
    HOUSING ASSEMBLY, Driveshaft
    3.3 Horsepower
  • 2
    8M0082880 GASKET
    GASKET
  • 3
    19-879194296 FLUSH PLUG
    FLUSH PLUG
  • 4
    27-815076002 GASKET
    GASKET
  • 5
    17-16119 PIN, Dowel
    PIN, Dowel
  • 6
    95276 CARRYING HANDLE
    2 Horsepower
    CARRYING HANDLE
    2 Horsepower
  • 6
    95276 CARRYING HANDLE
    2.5 Horsepower
    CARRYING HANDLE
    2.5 Horsepower
  • 6
    823164 CARRYING HANDLE
    3.3 Horsepower
    CARRYING HANDLE
    3.3 Horsepower
  • 7
    10-4000330 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 8
    11-400212 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 9
    25-16117 GROMMET
    3.3 Horsepower
    GROMMET
    3.3 Horsepower
  • 10
    10-82304227 BOLT
    2 Horsepower
    BOLT
    2 Horsepower
  • 10
    10-82304227 BOLT
    2.5 Horsepower
    BOLT
    2.5 Horsepower
  • 11
    10-823042 BOLT
    BOLT
  • 12
    95274 GRIP
    GRIP
  • 13
    823162A3 HANDLE ASSEMBLY, Steering
    HANDLE ASSEMBLY, Steering
  • 14
    10-40011151 SCREW, (M8 x 35) Stainless Steel
    SCREW, (M8 x 35) Stainless Steel
  • 15
    22-95364 DAMPER
    DAMPER
  • 16
    3406-8150852 CLAMP BRACKET
    CLAMP BRACKET
  • 17
    10-898101337 BOLT
    BOLT
  • 18
    12-95375 WASHER
    WASHER
  • 19
    11-95374 NUT, Nylon
    NUT, Nylon
  • 20
    95278 BRACKET
    BRACKET
  • 21
    8M0055576 DISTANCE ROD
    DISTANCE ROD
  • 22
    13-400256 LOCKWASHER, (M6)
    LOCKWASHER, (M6)
  • 23
    11-400212 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 24
    10-8M0075060 CLAMP SCREW ASSEMBLY
    CLAMP SCREW ASSEMBLY
  • 25
    12-95379 PAD
    PAD
  • 26
    3407-9160T1 SWIVEL BRACKET
    SWIVEL BRACKET
  • 27
    3407-8112041 SWIVEL BRACKET
    SWIVEL BRACKET
  • 28
    10-8M0124428 BOLT
    BOLT
  • 29
    23-95381 BUSHING
    BUSHING
  • 30
    10-162061 SCREW, Adjusting
    SCREW, Adjusting
  • 31
    24-953838 SPRING
    SPRING
  • 32
    952791 FRICTION PAD
    FRICTION PAD
  • 33
    12-16826 WASHER, Stainless Steel
    WASHER, Stainless Steel
  • 34
    8150921 THRUST ROD
    THRUST ROD
  • 35
    24-815093003 SPRING
    SPRING
  • 36
    8M0058619 STOPPER, Tilt
    STOPPER, Tilt
  • 37
    815096 KNOB
    KNOB
  • 38
    823826T03 HOUSING KIT, Extension
    3.3 Horsepower
    HOUSING KIT, Extension
    3.3 Horsepower
  • 39
    23-811214 BUSHING
    3.3 Horsepower
    BUSHING
    3.3 Horsepower
  • 40
    16121001 STOPPER
    3.3 Horsepower
    STOPPER
    3.3 Horsepower
  • 41
    10-8230427 BOLT
    3.3 Horsepower
    BOLT
    3.3 Horsepower
  • 42
    16-8230441 STUD
    3.3 Horsepower
    STUD
    3.3 Horsepower
  • 43
    11-400212 NUT, (M6) Stainless Steel
    3.3 Horsepower
    NUT, (M6) Stainless Steel
    3.3 Horsepower
  • 44
    10-82304232 BOLT
    3.3 Horsepower
    BOLT
    3.3 Horsepower
  • -
    27-898101928 GASKET SET, Powerhead
    2 Horsepower
    GASKET SET, Powerhead
    2 Horsepower
  • -
    27-898101928 GASKET SET, Powerhead
    2.5 Horsepower
    GASKET SET, Powerhead
    2.5 Horsepower
  • -
    27-815076A04 GASKET SET, Powerhead
    3.3 Horsepower
    GASKET SET, Powerhead
    3.3 Horsepower
