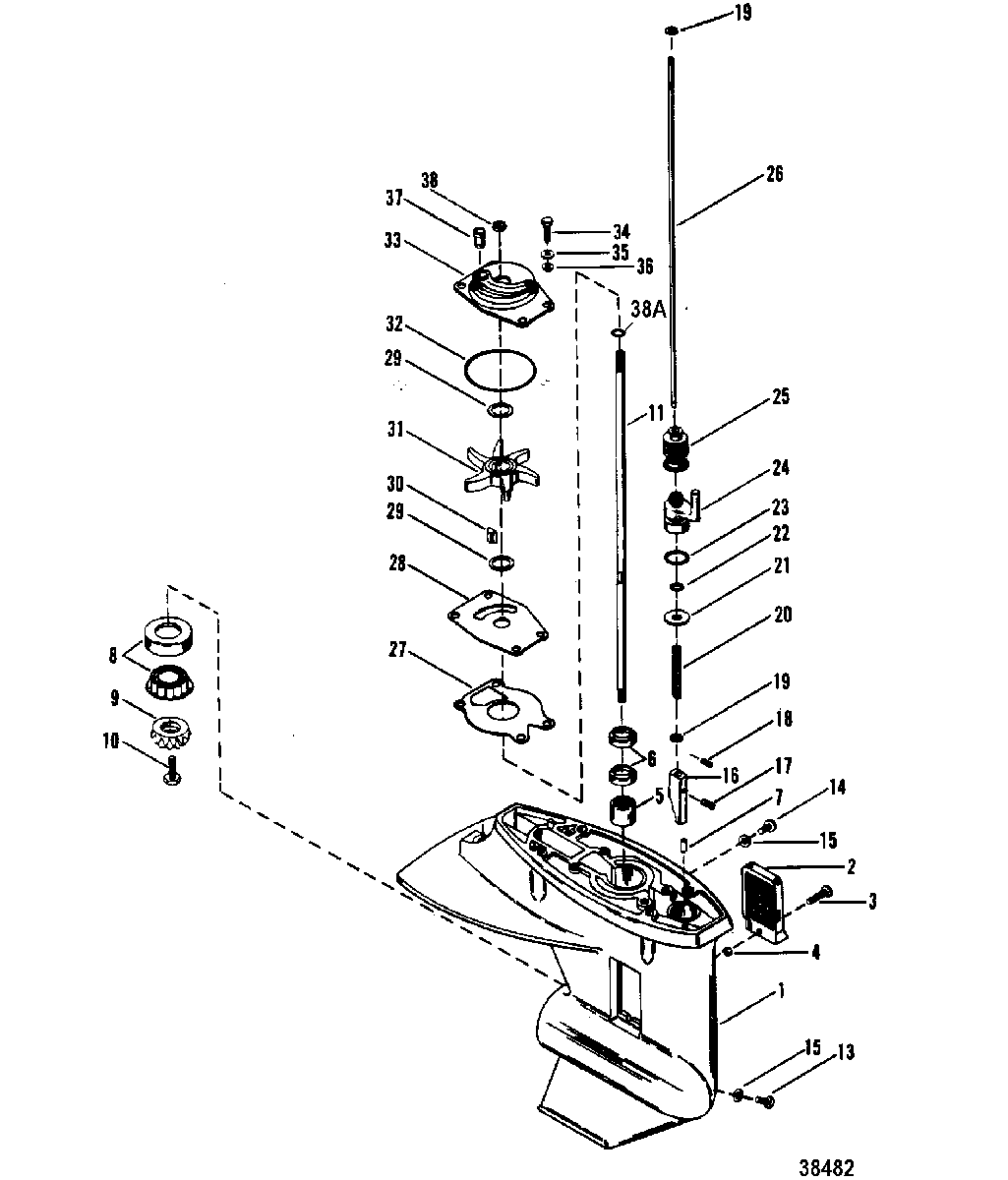

GEAR HOUSING(DRIVESHAFT) для Mercury - 18XD 9378151 THRU 9507380

  • №
    Артикул
    Название
  • -
    1665-8669T13 GEAR HOUSING ASSEMBLY, COMPLETE
    (SHORT)(MERCURY)
    GEAR HOUSING ASSEMBLY, COMPLETE
    (SHORT)(MERCURY)
  • -
    1665-8669T14 GEAR HOUSNIG, COMPLETE
    (LONG)(MERCURY)
    GEAR HOUSNIG, COMPLETE
    (LONG)(MERCURY)
  • -
    1665-8669T13 GEAR HOUSING ASSEMBLY, COMPLETE
    (SHORT)(MARINER)
    GEAR HOUSING ASSEMBLY, COMPLETE
    (SHORT)(MARINER)
  • -
    1665-8669T14 GEAR HOUSING ASSEMBLY, COMPLETE
    (LONG(MARINER)
    GEAR HOUSING ASSEMBLY, COMPLETE
    (LONG(MARINER)
  • 1
    1600-8M0083538 GEAR HOUSING ASSEMBLY, Mercury, BASIC
    GEAR HOUSING ASSEMBLY, Mercury, BASIC
  • 1
    1600-8M0083538 GEAR HOUSING ASSEMBLY, Mariner, BASIC
    GEAR HOUSING ASSEMBLY, Mariner, BASIC
  • 2
    35-41134 SCREEN, WATER INLET
    (STARBOARD)
    SCREEN, WATER INLET
    (STARBOARD)
  • 2
    35-41133 SCREEN, Water Inlet Port, WATER INLET
    (PORT)
    SCREEN, Water Inlet Port, WATER INLET
    (PORT)
  • 3
    10-40031112 SCREW, (M5 x 40), SCREEN TO GEAR HOUSING
    SCREW, (M5 x 40), SCREEN TO GEAR HOUSING
  • 4
    11-400263 NUT, (M5), SCREEEN SCREW
    NUT, (M5), SCREEEN SCREW
  • 5
    31-41326 BEARING, Roller, UPPER
    BEARING, Roller, UPPER
  • 6
    26-99325 SEAL, GEAR HOUSING
    SEAL, GEAR HOUSING
  • 7
    17-8M0084726 PIN, Dowel (.187 x .530), GEAR HOUSING
    PIN, Dowel (.187 x .530), GEAR HOUSING
  • 8
    31-98294A1 BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
  • 9
    43-98302 GEAR, Pinion
    GEAR, Pinion
  • 10
    10-49908 SCREW, (.250-28 x .750), PINION GEAR
    SCREW, (.250-28 x .750), PINION GEAR
  • 11
    45-99199 DRIVESHAFT
    (SHORT SHAFT)
    DRIVESHAFT
    (SHORT SHAFT)
  • 11
    45-99198 DRIVESHAFT
    (LONG SHAFT)
    DRIVESHAFT
    (LONG SHAFT)
  • 13
    22-8M0058389 SCREW, Magnetic, DRAIN
    SCREW, Magnetic, DRAIN
  • 14
    10-79953Q04 SCREW, (.375-16 x .250), GREASE FILLER
    SCREW, (.375-16 x .250), GREASE FILLER
  • 15
    12-191833 WASHER, DRAIN AND FILLER SCREW
    WASHER, DRAIN AND FILLER SCREW
  • 16
    85562A1 CAM ASSEMBLY, SHIFT
    CAM ASSEMBLY, SHIFT
  • 17
    17-85096 PIN, Drive, SHIFT CAM
    PIN, Drive, SHIFT CAM
  • 18
    17-85593 PIN, (.078 x .437), SHIFT SHAFT
    PIN, (.078 x .437), SHIFT SHAFT
  • 19
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel, SHIFT SHAFT
    WASHER, (.281 x .500 x .060) Stainless Steel, SHIFT SHAFT
  • 20
    24-93007 SPRING, SHIFT SHAFT
    SPRING, SHIFT SHAFT
  • 21
    12-85091 WASHER, SHIFT SHAFT
    WASHER, SHIFT SHAFT
  • 22
    25-85594 O-RING, (.239 x .174), SHIRT SHAFT
    O-RING, (.239 x .174), SHIRT SHAFT
  • 23
    25-35276 O-RING, (.734 x .139), SHIFT SHAFT RETAINER
    O-RING, (.734 x .139), SHIFT SHAFT RETAINER
  • 24
    93878 RETAINER, SHIFT SHAFT
    RETAINER, SHIFT SHAFT
  • 25
    85552001 BOOT, SHIFT SHAFT
    BOOT, SHIFT SHAFT
  • 26
    85126 SHIFT SHAFT
    (SHORT SHAFT)
    SHIFT SHAFT
    (SHORT SHAFT)
  • 26
    86293 SHIFT SHAFT
    (LONG SHAFT)
    SHIFT SHAFT
    (LONG SHAFT)
  • 27
    27-993261 GASKET, WATER PUMP
    GASKET, WATER PUMP
  • 28
    85083 FACE PLATE
    FACE PLATE
  • 29
    12-8M0027721 WASHER, IMPELLER
    WASHER, IMPELLER
  • 30
    28-8M0032838 KEY, IMPELLER DRIVE
    KEY, IMPELLER DRIVE
  • 31
    47-8508910 IMPELLER
    IMPELLER
  • 31
    47-8508910 IMPELLER (COLD WATER)
    IMPELLER (COLD WATER)
  • 32
    25-69202 O-RING, WATER PUMP
    O-RING, WATER PUMP
  • 33
    46-99157A02 PUMP ASSEMBLY, Water
    PUMP ASSEMBLY, Water
  • 34
    10-400035 SCREW, (M5 x 16), WATER PUMP TO GEAR HOUSING
    SCREW, (M5 x 16), WATER PUMP TO GEAR HOUSING
  • 35
    12-89302 WASHER, (.203 x .406 x .040), WATER PUMP SCEW
    WASHER, (.203 x .406 x .040), WATER PUMP SCEW
  • 36
    23-85095 BUSHING, WATER PUMP SCREW
    BUSHING, WATER PUMP SCREW
  • 37
    26-85090001 SEAL, WATER TUBE
    SEAL, WATER TUBE
  • 38
    25-86203 O-RING, DRIVESHAFT - RUBBER
    O-RING, DRIVESHAFT - RUBBER
  • 38A
    25-99691 O-RING
    O-RING
  • -
    46-99157T2 REPAIR KIT, Water Pump
    REPAIR KIT, Water Pump
  • -
    26-85090A2 SEAL KIT
    SEAL KIT
  • -
    27-41499A88 GASKET SET
    GASKET SET
